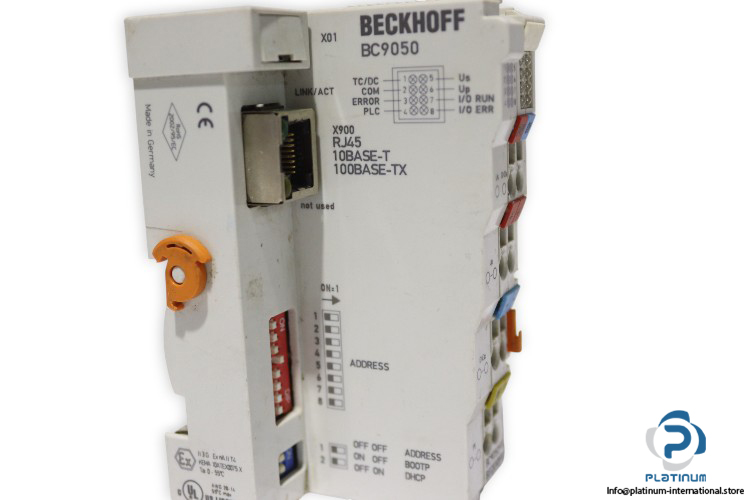

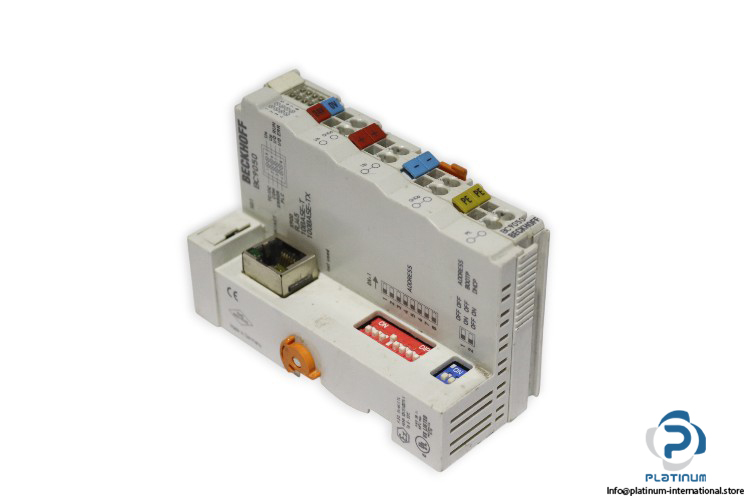

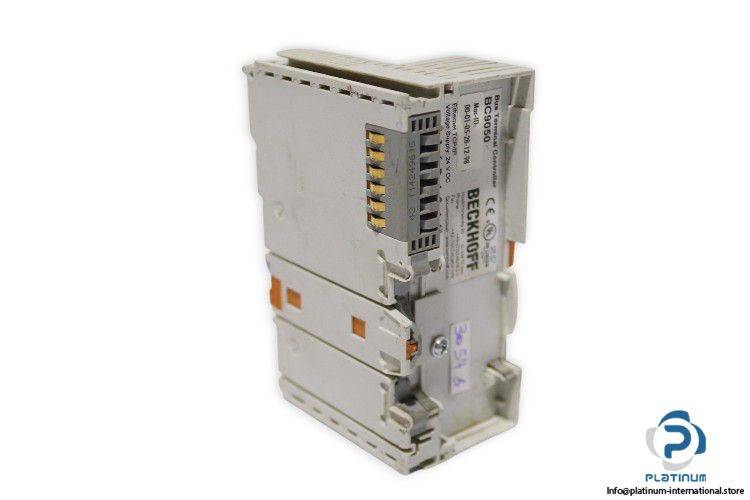

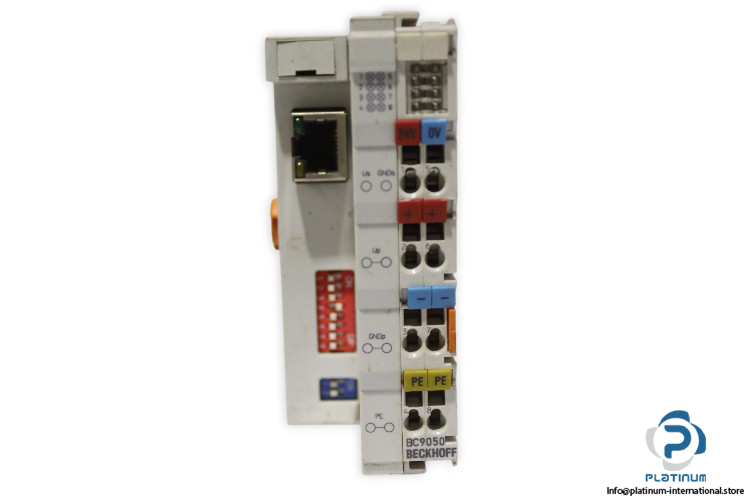

Beckhoff BC9050 Ethernet Tcp/Ip BUS Terminal Controller

재고 있음1 단위즉시 배송 가능

Ethernet TCP/IP Bus Terminal Controller

Beckhoff BC9050 offers reliable industrial control with 48 kB program memory, 32 kB data memory, 64 bus terminals, and TwinCAT ADS/Modbus TCP protocol support.

제조업체
BECKHOFF
SKU
1083003
카테고리
PLC Modules
상태
중고
신제품 재고 있음
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

Beckhoff BC9050 Ethernet TCP/IP Bus Terminal Controller

The Beckhoff BC9050 is a high-performance Ethernet TCP/IP bus terminal controller, designed for advanced industrial automation. It integrates reliable data communication, flexible programming, and strong memory capabilities for efficient process control.

Manufacturer: Beckhoff

Type: Ethernet TCP/IP Bus Terminal Controller

Model: BC9050

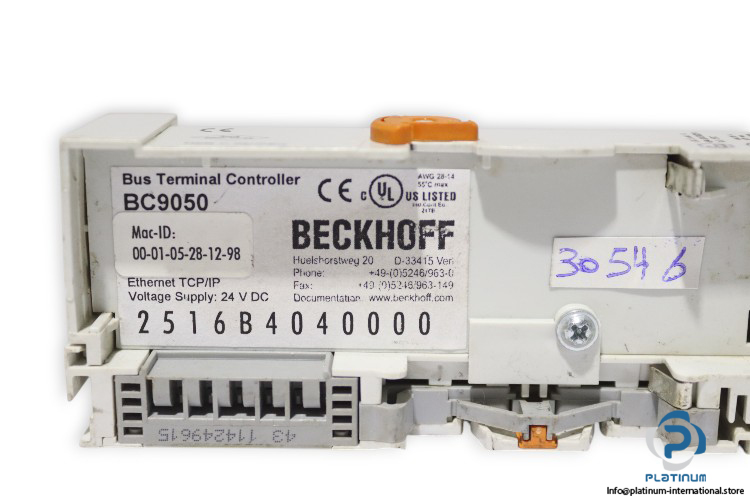

MAC ID: 00-01-05-28-12-98

Ref No.: 2516b4040000

ProgrammingTwinCAT via programming interface or Ethernet
Program Memory48 kbytes
Data Memory32 kbytes
Remanent Data2 kbytes
Runtime System1 PLC task
PLC Cycle TimeApprox. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus)
Programming LanguagesIEC 61131-3 (IL, LD, FBD, SFC, ST)
Bus Terminals64 (255 with K-bus extension)
Max. Bytes Fieldbus512 byte input, 512 byte output
Max. Bytes Process Image2048 byte input, 2048 byte output
Digital Peripheral Signals2,040 inputs/outputs
Analog Peripheral Signals512 inputs/outputs
ProtocolTwinCAT ADS, Modbus TCP
Data Transfer Rates10/100 Mbaud, automatic recognition
Bus Interface1 x RJ45
Power Supply24 V DC (-15 %/+20 %)
Input Current65 mA + (total K-bus current)/4
Starting CurrentApprox. 2.5 x continuous current
Recommended Fuse‰¤ 10 A
K-bus Current Supply1750 mA
Power ContactsMax. 24 V DC / 10 A
Electrical Isolation500 V (power contact/supply voltage/fieldbus)
Operating Temperature0 / +55 °C
