Beckhoff EL 2004 Ethercat Terminal
중고
재고 있음14 단위즉시 배송 가능
15,55$
ETHERCAT TERMINAL
Beckhoff EL2004 EtherCAT terminal with 4 digital outputs, 24 V DC, 0.5 A per channel short-circuit proof, IP20 rating, and -25 / +60 °C operating range.
방대한 재고
글로벌 배송
전문 지원
품질 보장

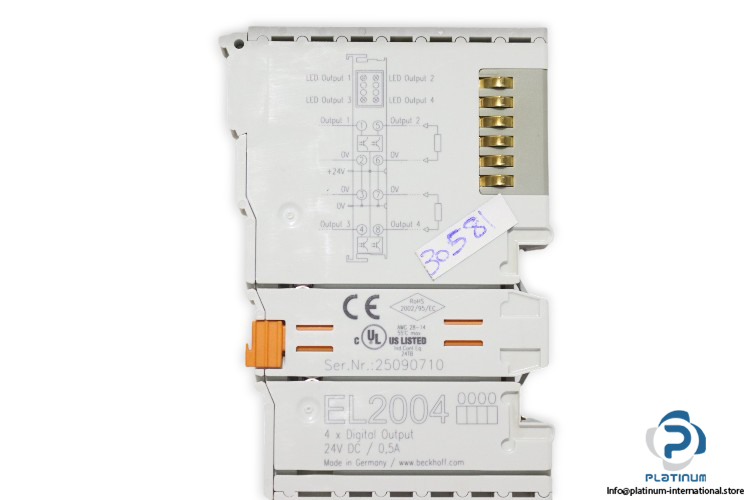

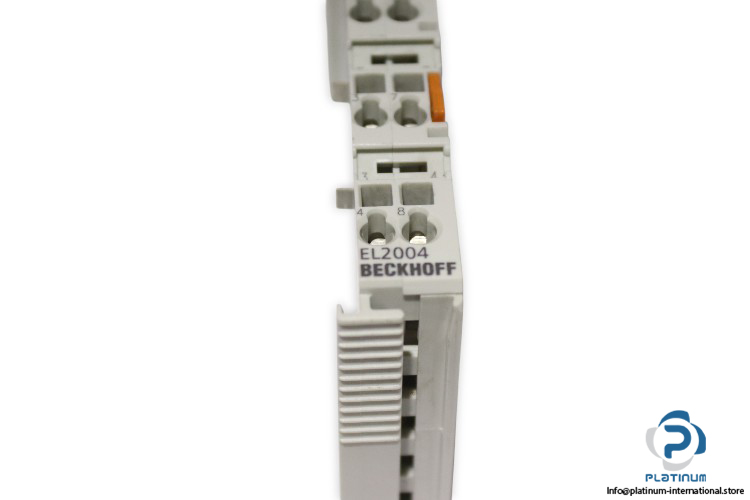

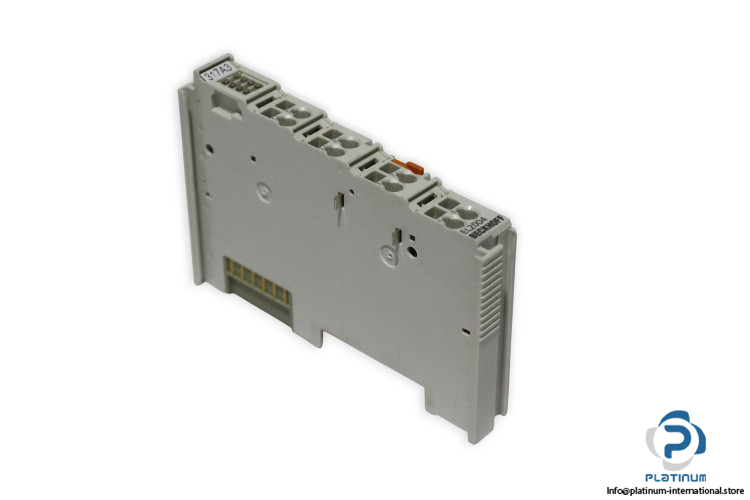

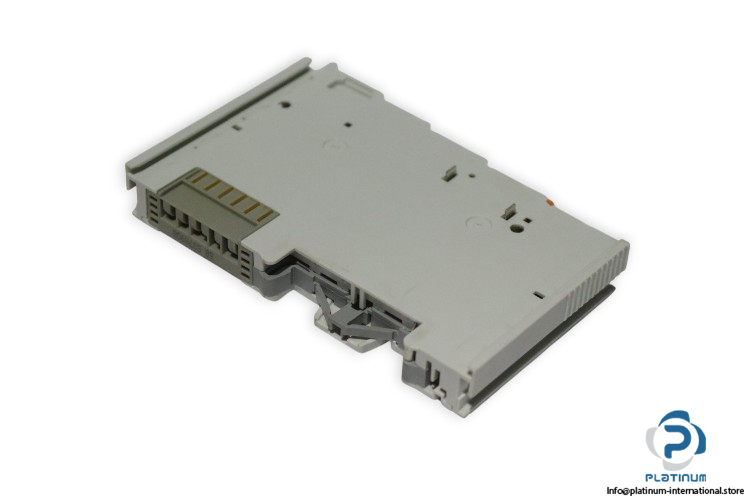

Beckhoff EL2004 EtherCAT Terminal
The Beckhoff EL2004 is a digital output EtherCAT terminal designed for industrial automation systems. With four channels, short-circuit protection, and versatile load compatibility, it ensures reliable signal output in compact, modular control setups.
Manufacturer: Beckhoff
Type: EtherCAT Terminal
Model: EL2004
Serial Nr: 25090710
| Voltage | 24 V DC |
| Current | 0.5 A |
| Digital Output | 4 |
| Connection Technology | 2-wire |
| Load Type | Ohmic, inductive, lamp load |
| Max. Output Current | 0.5 A (short-circuit proof) per channel |
| Protection Rating / Installation Position | IP20 / variable |
| Operating Temperature | -25 / +60 °C |
