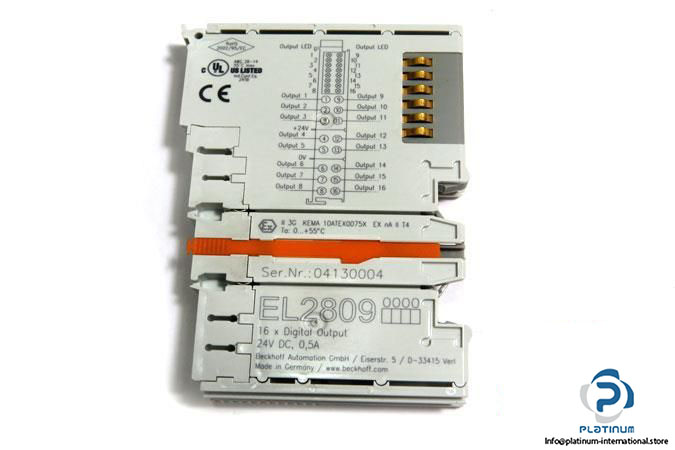

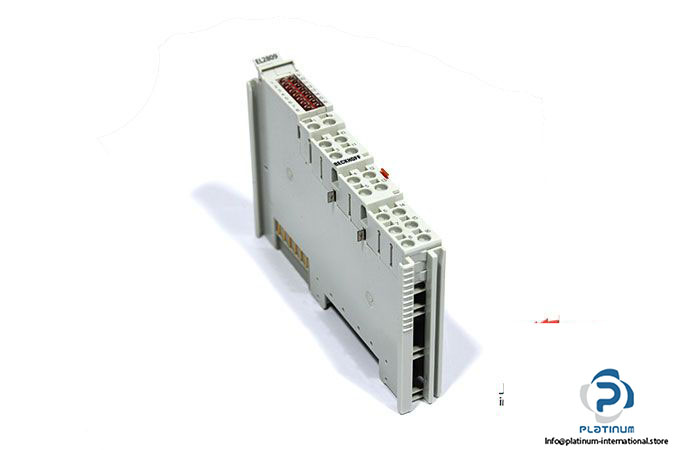

Beckhoff EL 2809 16-CHANNEL Digital Output
신제품
재고 있음1 단위즉시 배송 가능
250,00$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: BECKHOFF
Type: EtherCAT Terminal, 16-Channel Digital Output
Model: EL2809
No. of Outputs: 16 DO
Load voltage: 24 V DC (-15%/+20%)
Max. Output Current: 0.5 A
Short-Circuit Current: Typ. < 2 A
Load type: ohmic, Inductive, Lamp Load
Switching Times: TON: 60 µs, typ. TOFF: 300 µs
Output Current: 500 mA
Current Consumption: 35 mA
Isolation: 500 V
Operating Temperature: -25 … 60 °C
Protection: IP20
Material: Polycarbonate
Dimensions: 12 x 100 x 68 mm
Weight: 70g
