Beckhoff EL1889 Ethercat Terminal
신제품
재고 있음3 단위즉시 배송 가능
111,11$

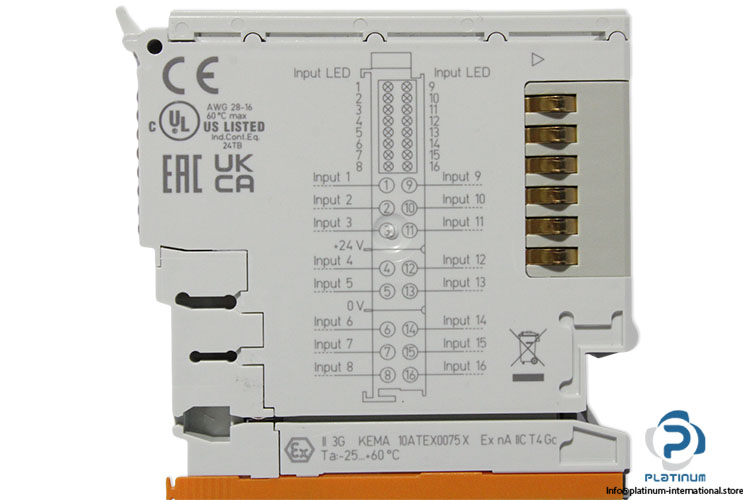

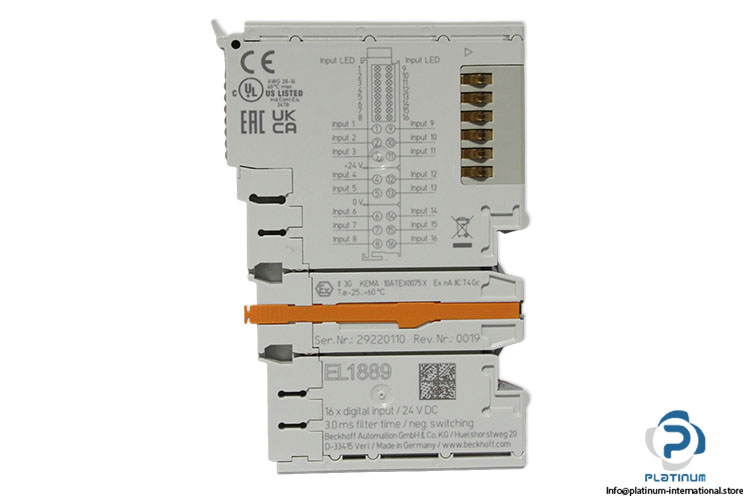

EtherCAT Terminal Beckhoff EL1889 EtherCAT terminal featuring 16 digital inputs, 24 V DC operation, high-density housing, and DIN rail installation for advanced industrial automation and control systems.
16AutomationBeckhoffchannelControlDigitalDINEL1889EtherCATII/OIndustrialInputModuleØPLCrailSystemterminal
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Serial No. | 29220110 |
| Rev. No. | 0019 |
| Connection Technology | 1-wire |
| No. of digital inputs (DI) | 16 |
| Nominal Voltage | 24 V DC |
| Input filter | typ. 3 ms |
| Signal voltage (0) | 18-30 V |
| Signal voltage (1) | 0-7 V |
| Input current | typ. 3 mA |
| Electrical isolation | 500 V |
| Current consumption E-bus | typ. 110 mA |
| Current load power contacts | Imax, 35 mA |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | -25 to 60°C |
| Certificate | cULus, CE, EAC, UKCA |
| Standard | II 3G KEMA 10ATEX0075X Ex nA IC T4 Gc |
| Design form | HD (High Density) housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | Labeling of the BZxxxx series |
| Terminal No. | 10035003723821 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097597 |
| Weight | 0,06 |
