Beckhoff EL2889 Ethercat Terminal
신제품
재고 있음3 단위즉시 배송 가능
99,99$
EtherCAT Terminal Beckhoff EL2889 16-channel digital output EtherCAT terminal engineered for high-speed switching, reliable signal processing, and compact distributed I/O integration in industrial automation systems.
16AutomationBeckhoffchannelControlDigitalDINDistributedEL2889EtherCATI/OIndustrialModuleOutputPLCrailSystemterminal
방대한 재고
글로벌 배송
전문 지원
품질 보장

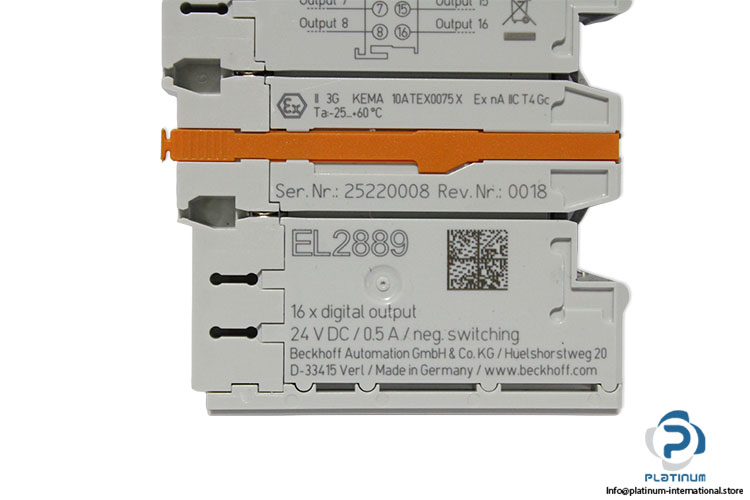

| Serial No. | 25220008 |
| Rev. No. | 0018 |
| Connection Technology | 1-wire/ground switching |
| No. of digital outputs (DO) | 16 |
| Nominal Voltage | 24 V DC |
| Load type | ohmic, inductive, lamp load |
| Output current | max. 0.5 A |
| Short-circuit current | typ. < 7 A |
| Breaking energy | < 100 mJ/channel |
| Electrical isolation | 500 V |
| Switching times | typ. TON: 50 µs, typ. TOFF: 200 µs |
| Current consumption E-bus | typ. 140 mA |
| Current load power contacts | Imax, 30 A |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | -25 to 60°C |
| Certificate | cULus, CE, EAC, UKCA |
| Standard | II 3G KEMA 10ATEX0075X Ex nA IC T4 Gc |
| Design form | HD (High Density) housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | Labeling of the BZxxxx series |

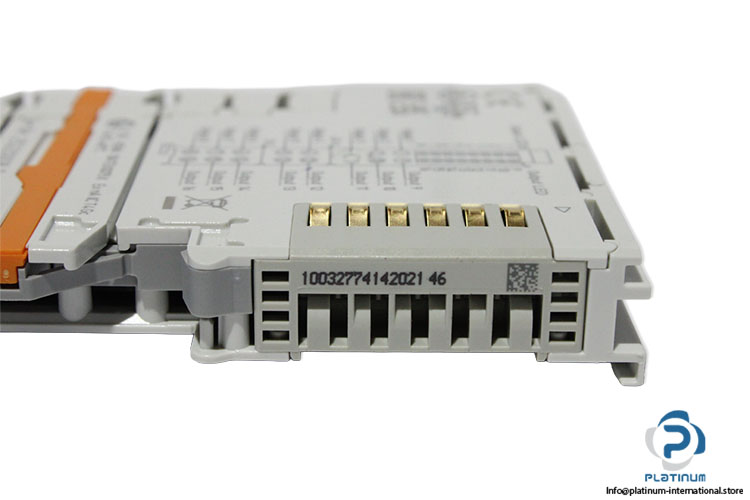

| Terminal No. | 10032774142021 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097586 |
| Weight | 0,05 |
