Beckhoff EL3008 Ethercat Terminal
신제품
재고 있음1 단위즉시 배송 가능
99,99$
EtherCAT Terminal / Analog Input Module Beckhoff EL3008 EtherCAT terminal featuring 8 analog input channels, 12-bit resolution, fast signal conversion, and compact DIN rail mounting for industrial automation and process control applications.
ACQAnalogAutomationBeckhoffComponentsControlDINEL3008EtherCATI/OIndustrialInputModulePLCrailSignalSystemterminal
방대한 재고
글로벌 배송
전문 지원
품질 보장

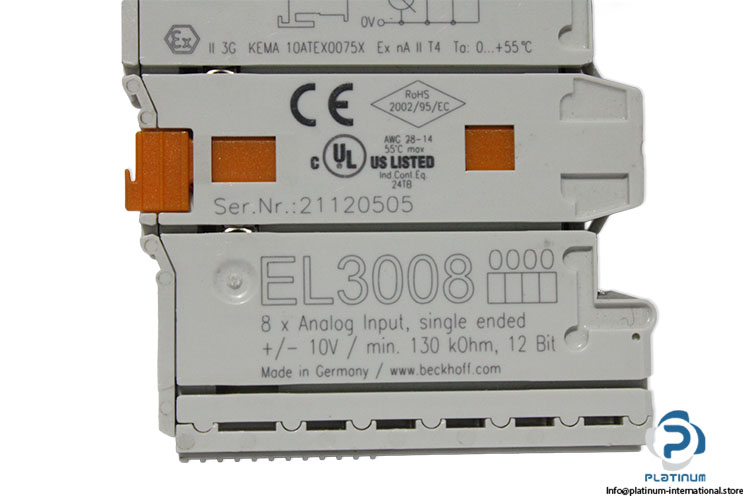

| Serial No. | 21120505 |
| No. of analog input (AI) | 8 |
| Ground reference | single-ended (input) |
| Nominal voltage | via the E-bus |
| Signal voltage | -10…+10 V |
| Internal resistance | > 130 kohm |
| Input filter limit frequency | 1 kHz |
| Dielectric strength | max. 30 V |
| Conversion time | 1.25 ms default setting, configurable, multiplex |
| Resolution | 12 bits |
| Protection degree | IP20 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | CE, cULus |
| Standard | Il 3G KEMA 10ATEX0075X Ex nA II T4 |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

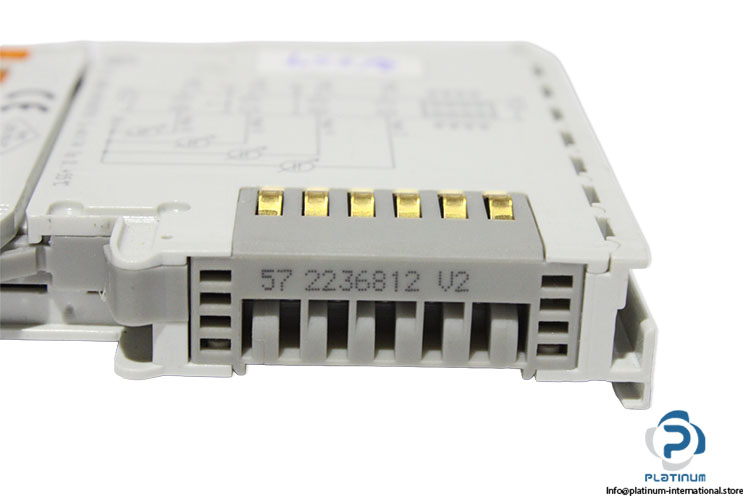

| Terminal No. | 57 2236812 V2 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097592 |
| Weight | 0,05 |
