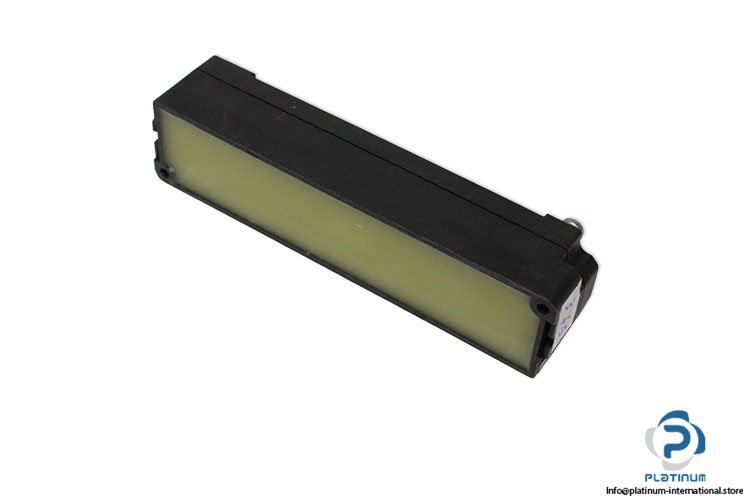

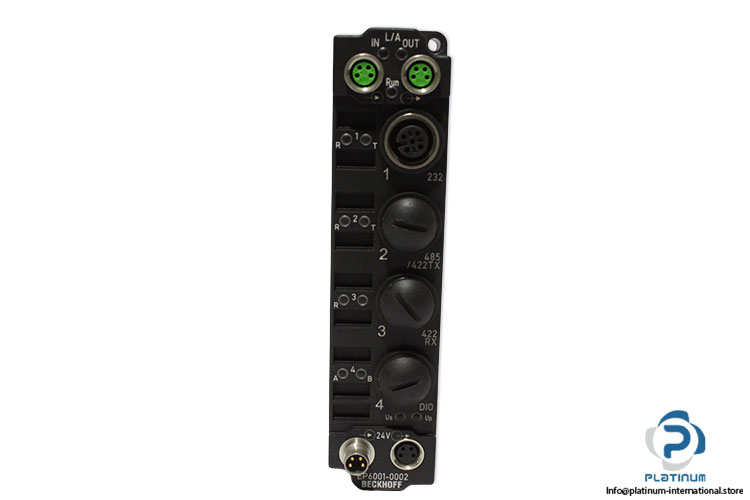

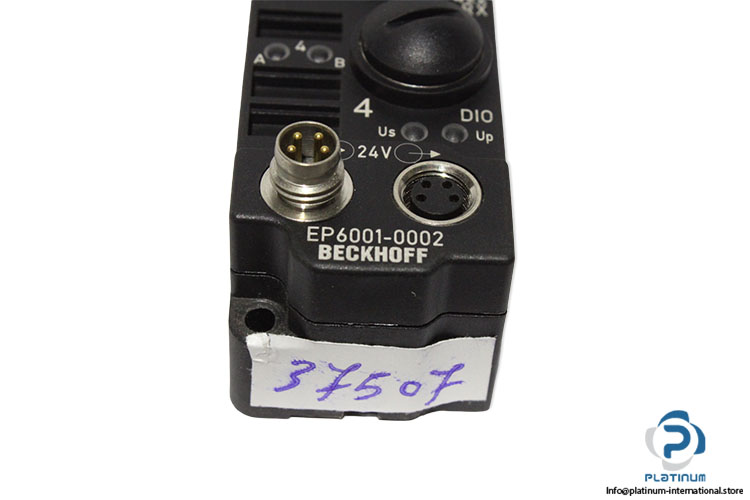

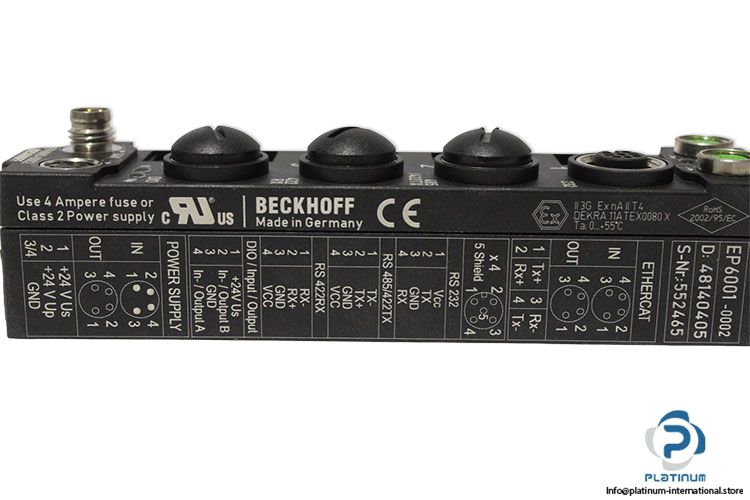

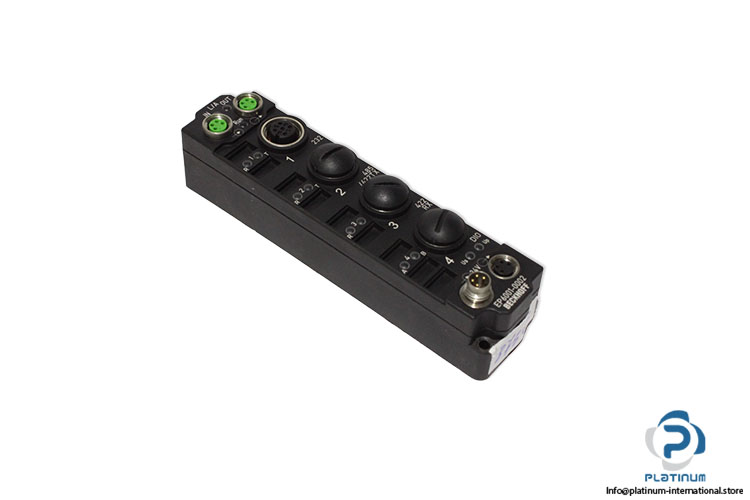

Beckhoff EP6001-0002 Ethercat BOX
신제품
재고 있음5 단위즉시 배송 가능
EtherCAT Box BECKHOFF EP6001-0002 EtherCAT Box with selectable RS232, RS485, and RS422 interfaces, IP65/66/67 protection, and support for easy integration of serial end devices in industrial automation systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Ref No | 48140405 |
| S-Nr | 552465 |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Data transfer channels | 1 |
| Interfaces | individually selectable from RS232, RS485, RS422 |
| Data transfer rates | 300…115,200 baud; 9600 baud (8 bit, no parity, 1 stop bit) is preset |
| Communication | TxD and RxD, full duplex |
| Bit distortion | 3% |
| Cable length | RS232: max. 15 m; RS422/RS485: approx. 1000 m |
| Data buffer | 864 bytes receive buffer, 128 bytes transmit buffer |
| Sensor supply | +5 V DC, 1 A |
| Connection technology | M12 socket, 5-pin, a-coded |
| Number of channels | 2 digital inputs or outputs |
| Input filter | 10 µs (for digital inputs) |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Load type | ohmic, inductive, lamp load |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Max. output current | 0.5 A per channel, individually short-circuit proof |
| Short-circuit current | typ. 1.5 A |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Current consumption from US | typ. 130 mA + sensor supply |
| Power supply connection | feed,1 x M8 male socket, 4-pin, a-coded; downstream connection,1 x M8 female socket, 4-pin, a-coded |
| Electrical isolation | 500 V |
| Special features | easy integration of serial end devices |
| Operating temperature | -25…+60°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099672 |
| Weight | 0,17 |
