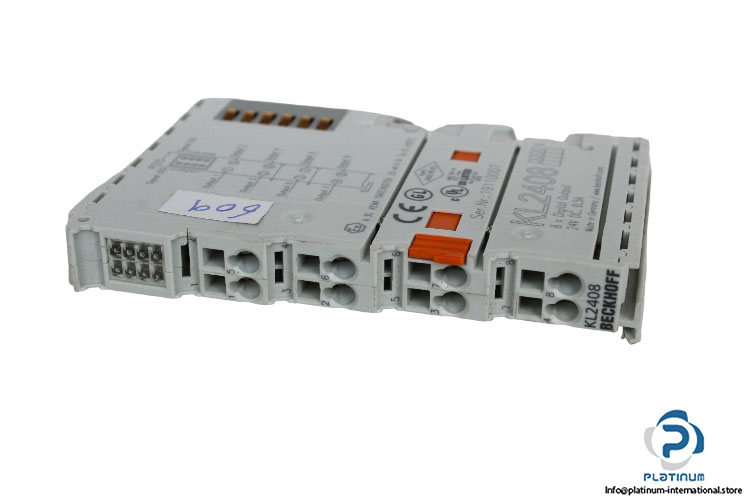

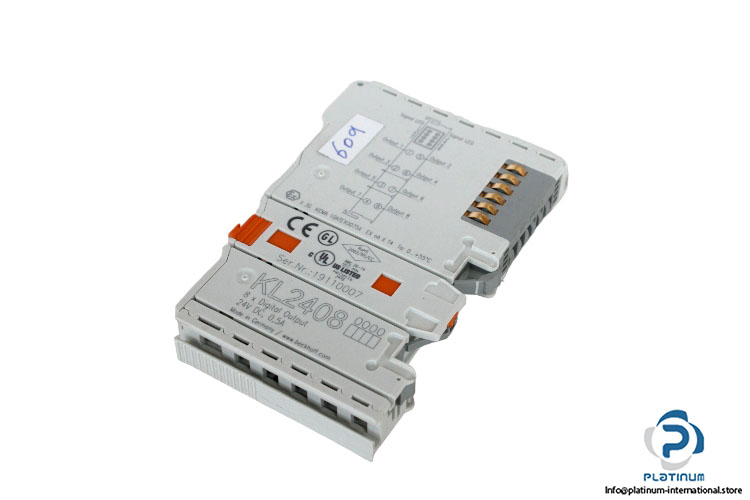

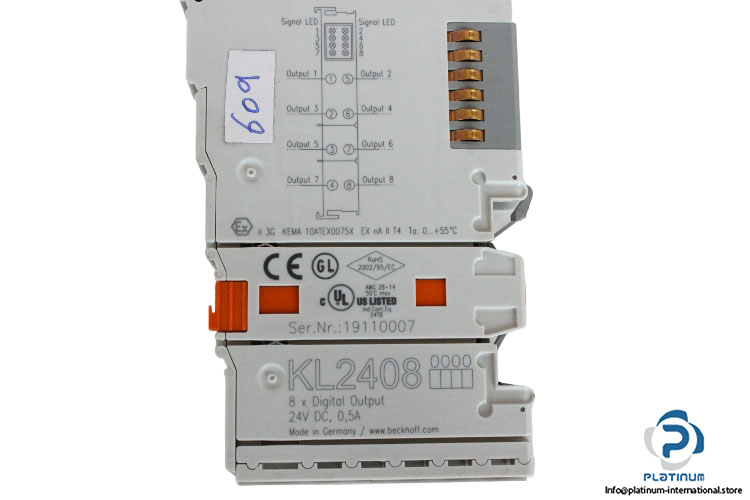

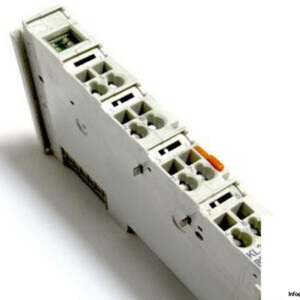

Beckhoff KL2408 8-CHANNEL Digital Output Terminal
Manufacturer: Beckhoff
Type: 8-Channel Digital Output Terminal
Model: KL 2408
No. Of Outputs: 8
Connection Technology: 1-wire
Voltage: 24 V DC
Short-Circuit Current: < 2 A
Output Current: 0.5 A
Electrical Isolation: 500 V
Current Consumption K-Bus: 18 mA
Current Consumption Power Contacts: 60 mA + Load
Operating Temperature: -25 … 60 °C
Protection: IP20
Material: Polycarbonate
Dimensions: 12 x 68 x 100 mm
