Beckhoff KL4002 BUS Terminal

재고 있음2 단위즉시 배송 가능

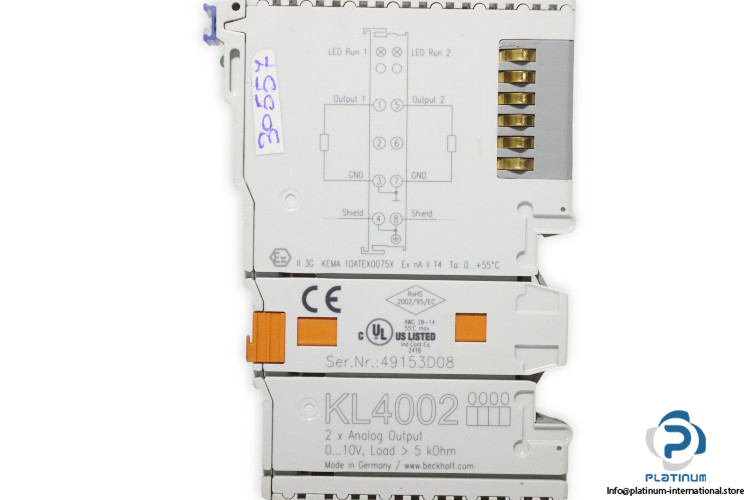

Bus Terminal The BECKHOFF KL4002 is a 2-channel analog output Bus Terminal with 0…10 V signal output and 12-bit resolution, designed for industrial automation and control systems.

제조업체
BECKHOFF
SKU
1083013
카테고리
PLC Modules
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장
Ser.Nr .27103D07
Technologysingle-ended
Number of outputs2
Power supplyvia the K-bus
Signal voltage0…10 V
Load5 kΩ (short-circuit proof)
Output error±0.1% (relative to end value)
Resolution12 bit
Conversion time1.5 ms
Electrical isolation500 V (K-bus/signal voltage)
Bit width in the process imageoutput: 2 x 16 bit data (2 x 8 bit control/status optional)
Operating temperature-25…+60°C
Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP20/variable
Pluggable wiring levelfor all KSxxxx Bus Terminals
Approvals/markingsCE, CCC, UL, ATEX, IECEx, cFMus
Ex marking ATEXII 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc
cFMusClass I, Division 2, Groups A, B, C, D
Materialpolycarbonate
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
Markinglabeling of the BZxxxx series
ConditionUsed
SKU1083013
Weight0,05
