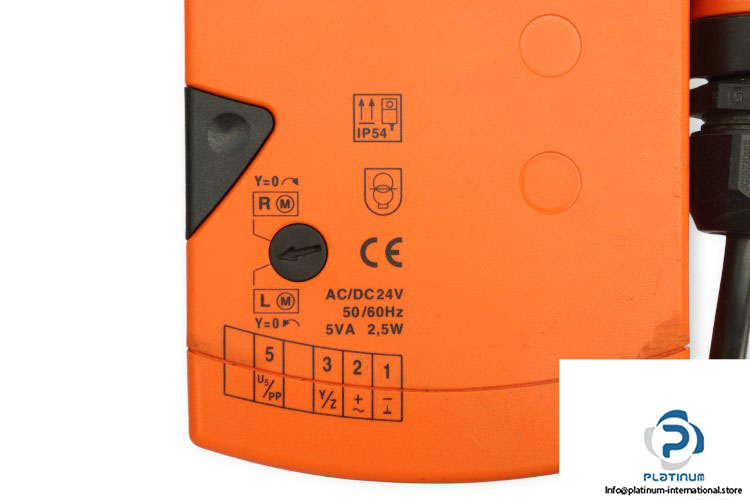

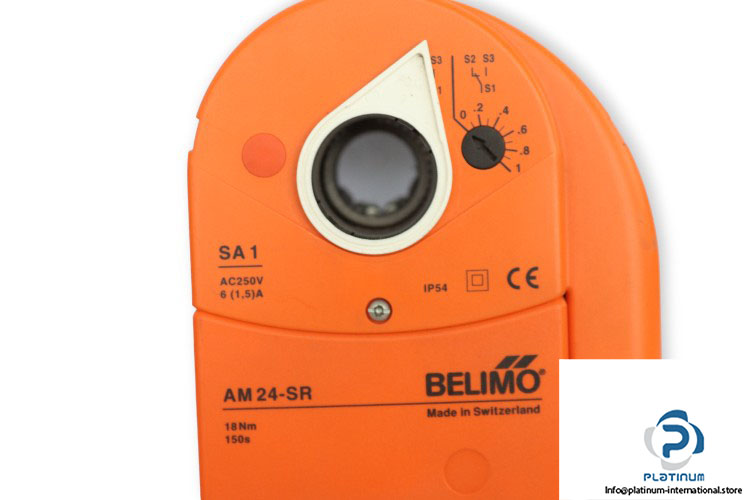

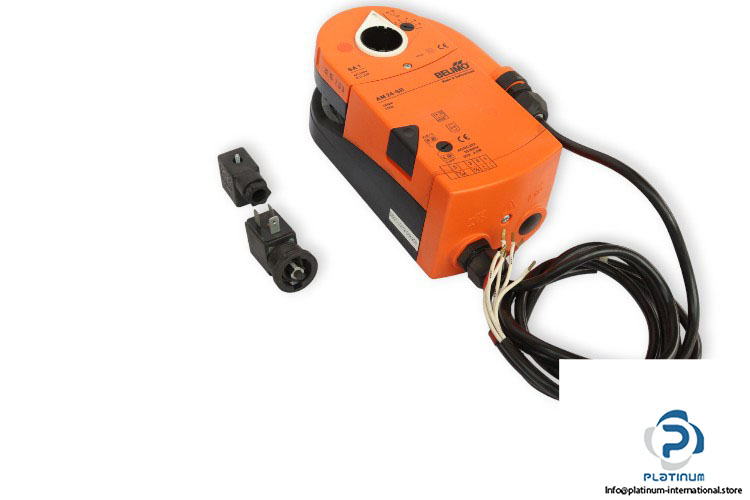

Belimo AM24-SR Damper Actuator
신제품
요청 시 제공 가능
177,77$
댐퍼 액추에이터
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Belimo
Type: Damper actuator
Model: AM24SR
Torque: 18 Nm
Nominal voltage: 24 V AC/DC (19.2…28.8 V AC, 21.6…28.8 V DC)
Nominal voltage frequency: 50/60 Hz
For wire sizing: 5 VA
Power consumption: running: 2.5 W, at rest: 1.2 W
Connecting cable: 1 m long, 4 x 0.75 mm2
Control signal Y: 0 … 10 V DC
Operating range: 2 … 10 V DC
Function position feedback U5: 2 … 10 V DC@ max. 0.7 Ma
Direction of rotation: selected with L / R
Angle of rotation: max. 95°
Running time: 150 s
Contact rating: 250 V AC, 6 (1.5) A
Sound power level: max. 45 dB (A)
Degree of protection: IP54
Ambient temperature: -30 … 50°C
