Bielomatik AB-P Single Piston Pump
중고
재고 있음1 단위즉시 배송 가능
단일 피스톤 펌프 Bielomatik AB-P 단일 피스톤 펌프는 공압 구동 시스템, 최대 압력 60바, 10.5 cm³/스트로크의 유량을 특징으로 합니다. 산업용 윤활 및 유체 이송 응용 분야에 설계되었습니다.
60AB-PbarBielomatikconnectionFluidG1/4high-performanceIndustrialIP67lubricationPistonPneumaticpumpSingleTransfer
방대한 재고
글로벌 배송
전문 지원
품질 보장

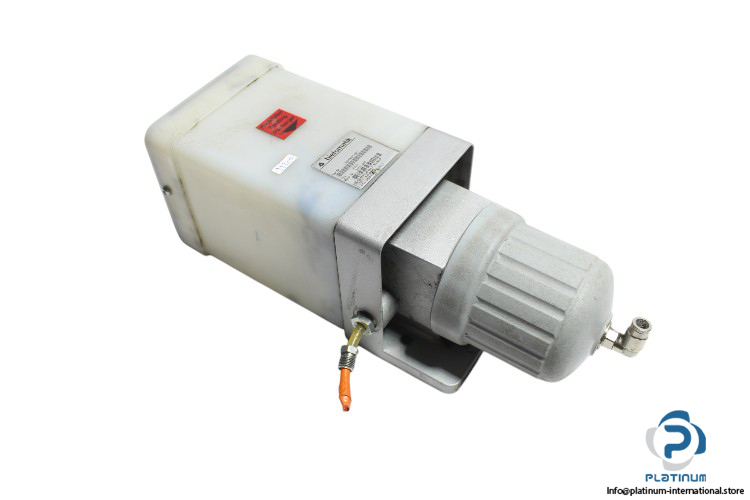

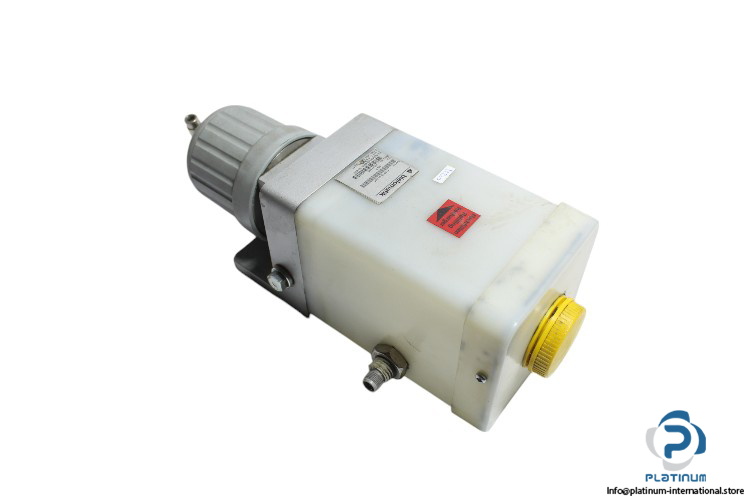

Bielomatik AB-P Single Piston Pump
The Bielomatik AB-P Single Piston Pump is a high-performance pneumatic-driven pump designed for precise fluid control in industrial applications. With a robust design and a maximum operating pressure of 60 bar, this pump ensures efficient lubrication and fluid transfer under demanding conditions.
Manufacturer: Bielomatik
Type: Single Piston Pump
Model: AB-P

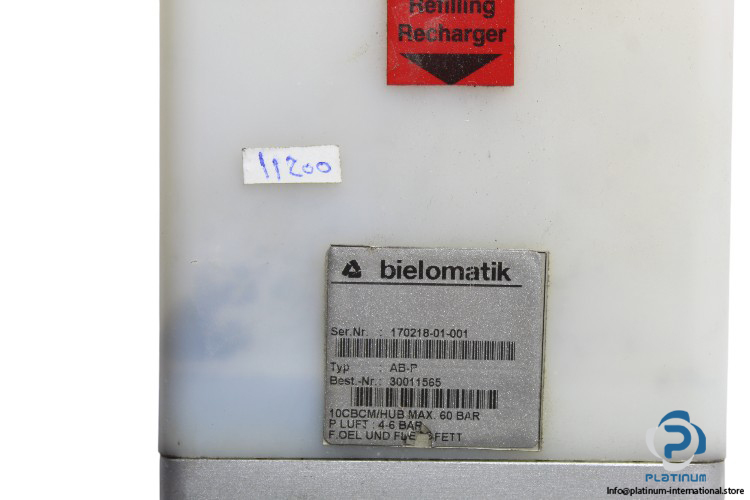

Order No.: 30011565
Ideal for lubrication systems and industrial fluid management, the Bielomatik AB-P provides precise and efficient operation for a wide range of applications.
| Operating Pressure | max. 60 bar |
| Drive Supply Pressure | 4 to 6 bar |
| Kind of Drive System | Pneumatic |
| Flow Rate | 10.5 cm³/stroke |
| Connection | G1/4 |
| Switching Voltage | 24 V AC/DC |
| Operating Medium | Mineral Oil |
| Ambient Temperature | 0 to 80°C |
| Enclosure Rating | IP67 |
