Bosch 0 830 100 469 Proximity Cylinder Switch
중고
재고 있음8 단위즉시 배송 가능
41,44$
근접 실린더 스위치 BOSCH 0830100469 근접 스위치는 IP67 보호 등급과 M8 3핀 플러그를 갖춘 리드형 센서입니다. 산업 자동화 및 공압 시스템을 위해 -20 °C에서 80 °C까지 신뢰할 수 있는 위치 감지를 제공합니다.
08301004693-pinAutomationBoschComponentCylinderIndustrialIP67M8MagneticPlugPneumaticPositionProximityReedSensorSwitch
방대한 재고
글로벌 배송
전문 지원
품질 보장

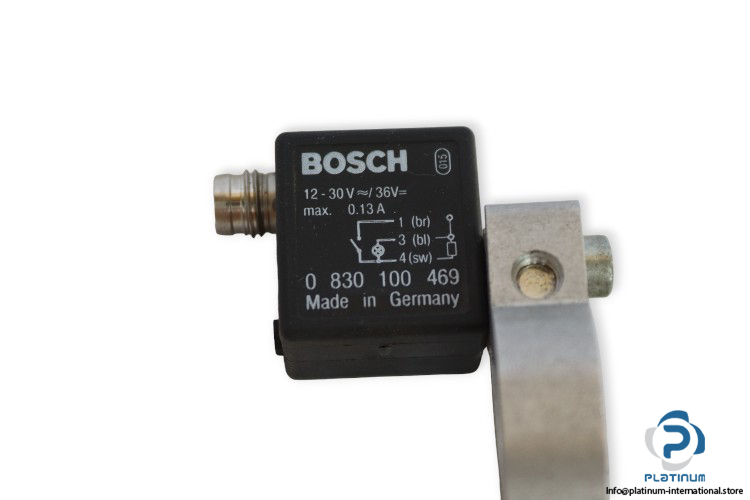

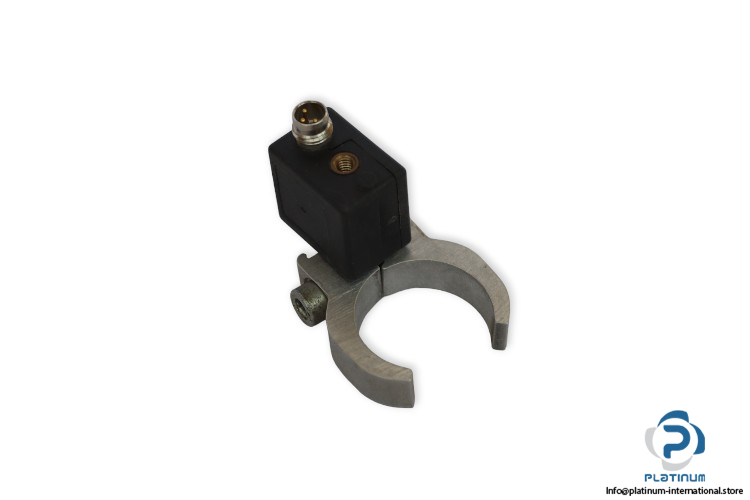

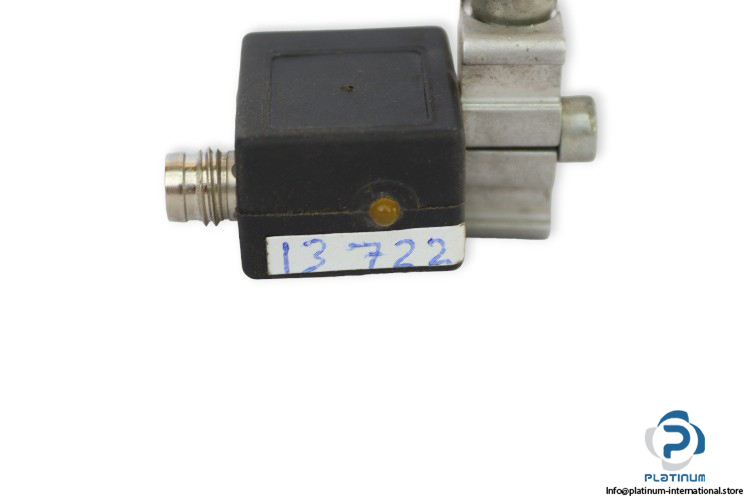

BOSCH 0830100469 Proximity Cylinder Switch
The BOSCH 0830100469 Proximity Cylinder Switch is a reliable magnetic reed switch designed for precise position sensing in pneumatic and automation systems. Built with a durable polyamide housing and IP67 protection, it ensures stable operation in demanding industrial environments. This switch offers easy installation, high switching accuracy, and compatibility with standard M8 connectors.
Manufacturer: BOSCH
Type: Proximity Cylinder Switch
Model: 0830100469
| Control Voltage | 12 / 30 V AC / 36 V DC |
| Rated Thermal Current (Ith) | 0.13 A |
| Frequency | 40 / 60 Hz |
| Switching Capacity | 5.5 W |
| Contact Type | Reed 1 Normally Open (NO) |
| Electrical Connection | M8, 3-Pin Plug |
| Housing Material | Polyamide |
| Protection Class | IP67 |
| Ambient Temperature | ˆ’20 / 80 °C |
| Dimensions | 24 × 22 × 16 mm |
