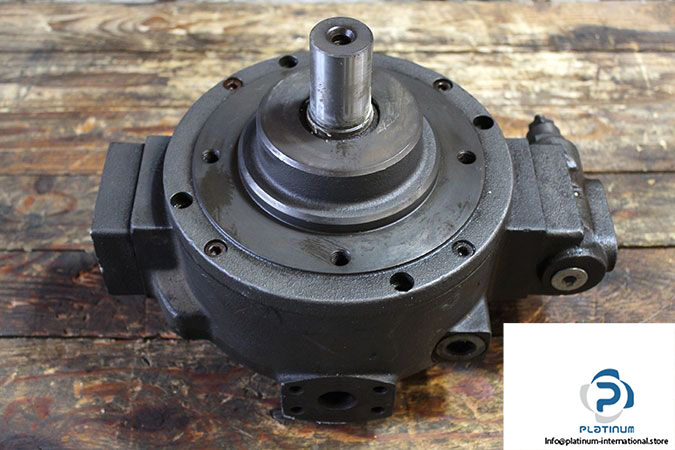

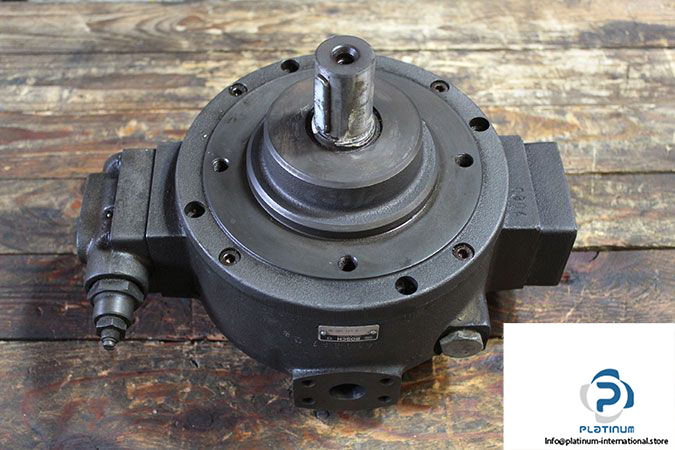

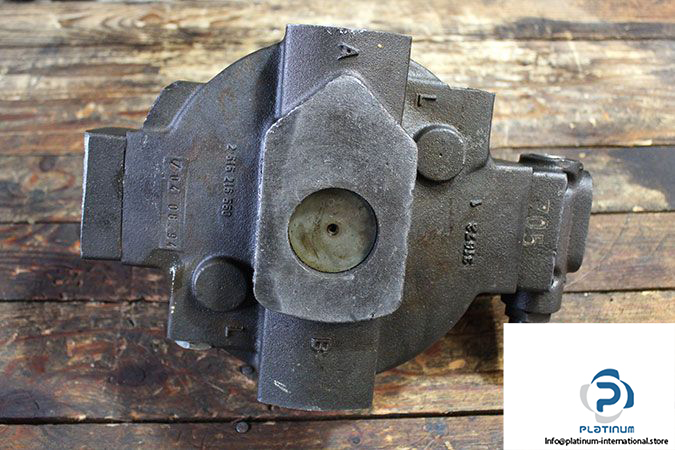

Bosch 0514500001 Axial Piston Variable Pump

Manufacturer: Bosch

Type: Axial Piston Variable Pump

Model: 0514R15A1RPV32SM28FZ28

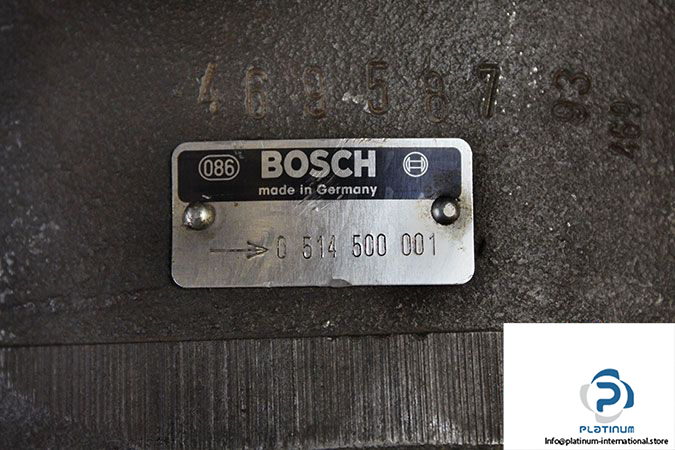

MNR: 0514500001

Size: 32

Displacement: 32 cm³

Direction of Rotation: Clockwise

Max Speed 1450 rpm: 1800 rpm

Max Pressure: 280 bar

Ambient-temperature range: –15 … 60 °C

Shaft Diameter: 35 mm

Nominal Flow Rate rpm: 45.3 l/m

Viscosity Range: 16 ….  46 mm²/s

Weight: 35 Kg
