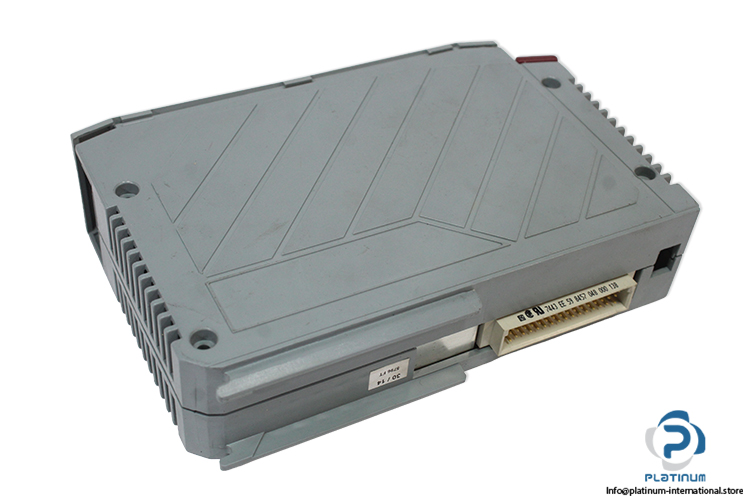

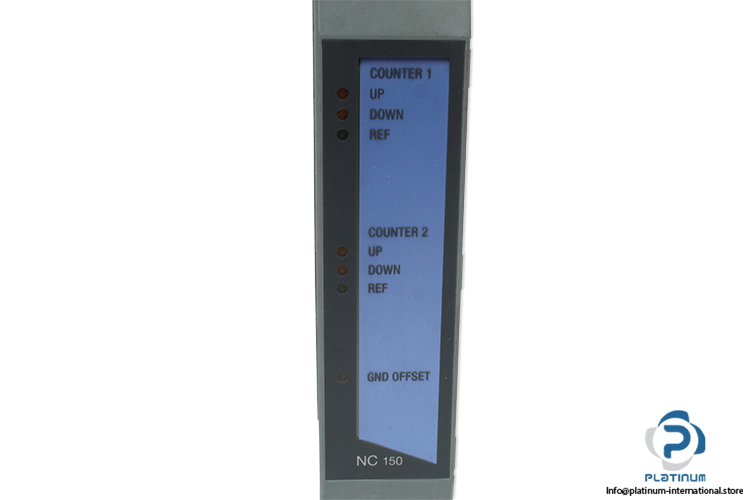

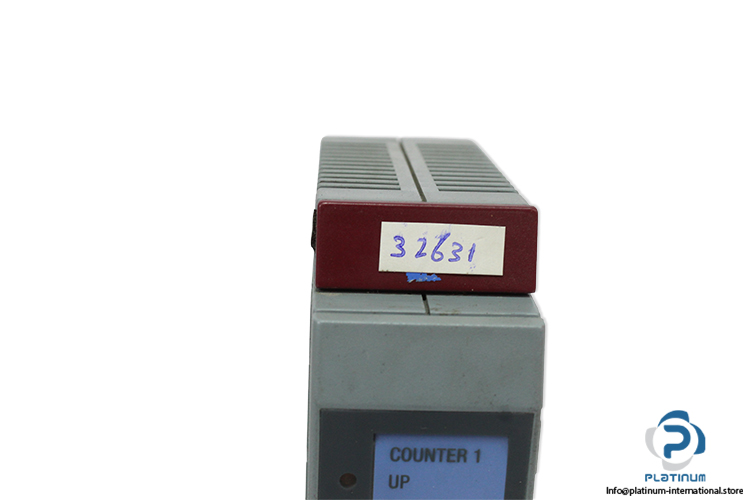

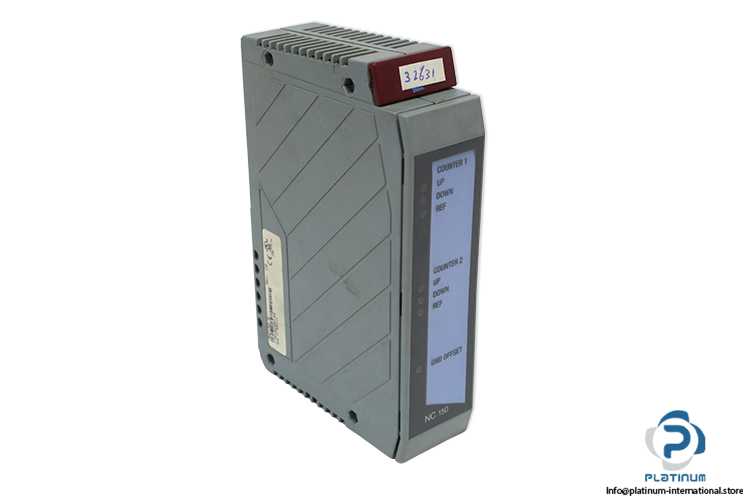

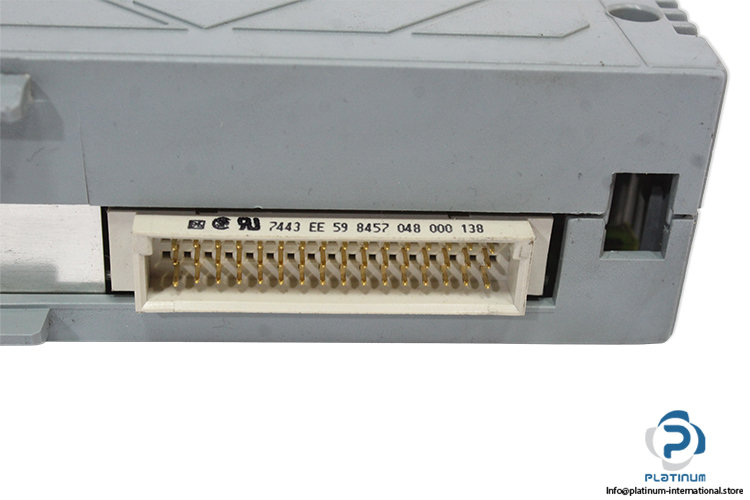

B&R 3NC 150.6 I/O MODULE
중고
재고 있음1 단위즉시 배송 가능
199,99$
I/O Module B&R NC 150 I/O module with 2 counter channels, 2 analog outputs, 32-bit counter size, and high-speed encoder evaluation for industrial automation and motion control applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

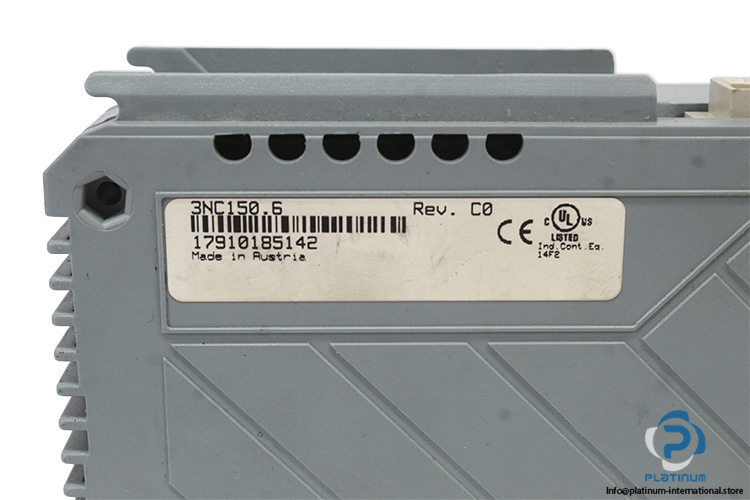

| Part No. | 3NC 150.6 |
| Ref No. | 17910185142 |
| Rev. | C0 |
| I/O module | 2 counter channels, 2 analog outputs |
| Variant | Two 9-pin female DSUB connectors |
| Operating modes | Incremental or up/down counter configurable using software |
| Input filter | 2 times configurable using software |
| Input frequency Max. | 100 kHz |
| Encoder inputs | Symmetrical and asymmetrical |
| Encoder power supply | 5 to 30 V external |
| Counter size | 32-bit |
| Analog outputs,Output | ±10 V |
| Digital converter resolution | 12-bit |
| Conversion time | 35 µs for all outputs |
| Output protection | Short-circuit proof |
| Basic accuracy | ±0.5% at 20°C |
| Degree of protection per EN 60529 | IP20 |
| Operation Temperature | 0 to 60°C |
| Condition | Used |
| SKU | 1099118 |
| Weight | 0,36 |
