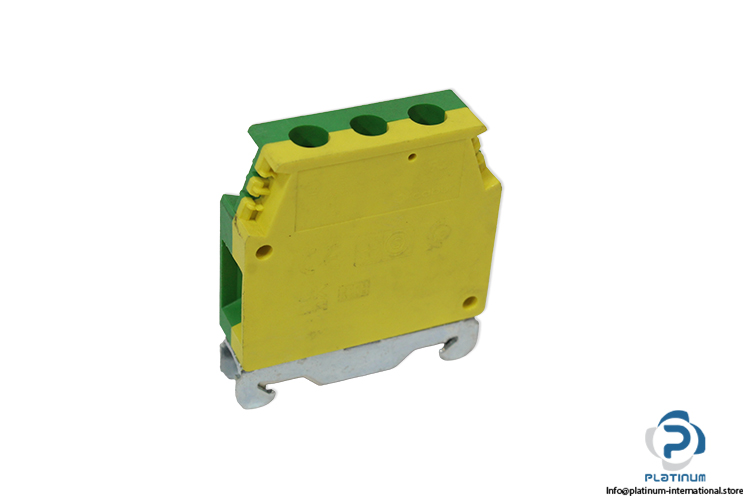

CABUR TE.16/O Screw Terminal Block
The CABUR TE.16/O screw terminal block is designed for secure and reliable electrical connections in industrial control panels and automation systems. Built with durable polyamide insulation and high current capacity, it supports flexible and rigid conductors and ensures safe operation in demanding environments.
Manufacturer: CABUR
Type: Screw Terminal Block
Model: TE.16/O

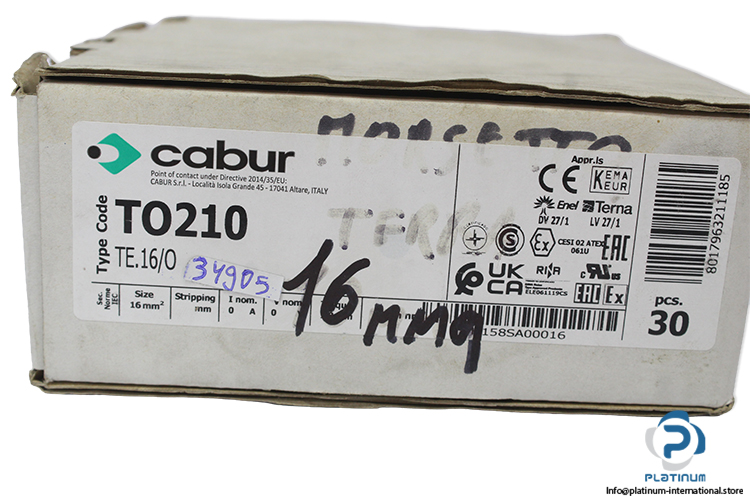

Code: TO210
Serial Number: 8017963211185
| Rated Cross-Section | 16 mm² |
| Connecting Capacity “ Flexible Wire | 0.5 “ 16 mm² |
| Connecting Capacity “ Rigid Wire | 0.5 “ 25 mm² |
| Wire With Ferrule “ Ferrule Type | 16 mm² “ WP160/22 |
| Maximum Voltage AC/DC | 600 V |
| Section (Min-Max) | 20 “ 3 (AWG) |
| Tightening Torque Value (UL) | 13.3 lb.in |
| Maximum Current (Rated Cross-Section) | 76 A |
| Operating Temperature Min/Max | -40 °C / +110 °C |
| Rated Impulse Withstand Voltage / Pollution Degree | 8 kV / 3 |
| Insulation Stripping Length | 13 mm |
| Tightening Torque Value (Nom. / Max.) | 1.8 / 3 Nm |
| Width (Pitch) | 12 mm |
| Length | 47 mm |
| Height Mounted On TH35-7.5 / TH35-15 / G32 | 56 / 64 / “ mm |
| Insulation Material Temperature Index (EN 60216-1) | 130 °C |
| Plastic Material | Polyamide UL94V-0 |

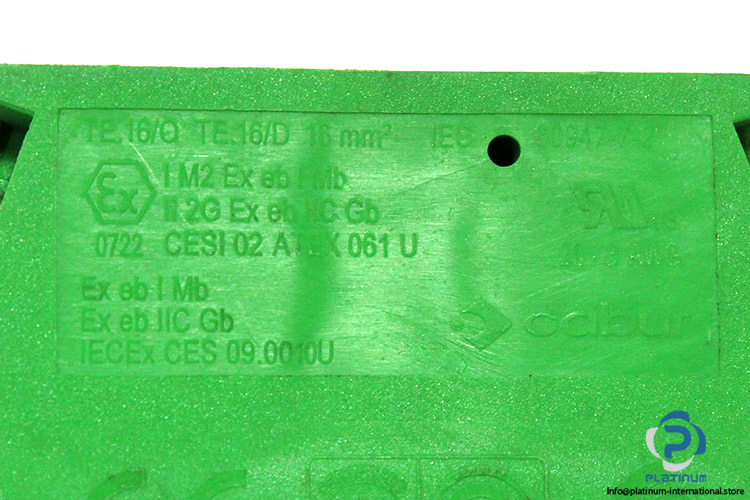

| Explosion Proof | Yes |
