Camlogic PFG-05 Rotary Paddle Level Switch
중고
요청 시 제공 가능
149,99$
Rotary Paddle Level Switch
The Camlogic PFG05 Rotary Paddle Level Switch with a 24V power supply, IP65 rating, and explosion-proof design (EX II D ½ Ex ta/tb IIIC T85°C) is ideal for precise level detection in liquids and granular materials.
방대한 재고
글로벌 배송
전문 지원
품질 보장

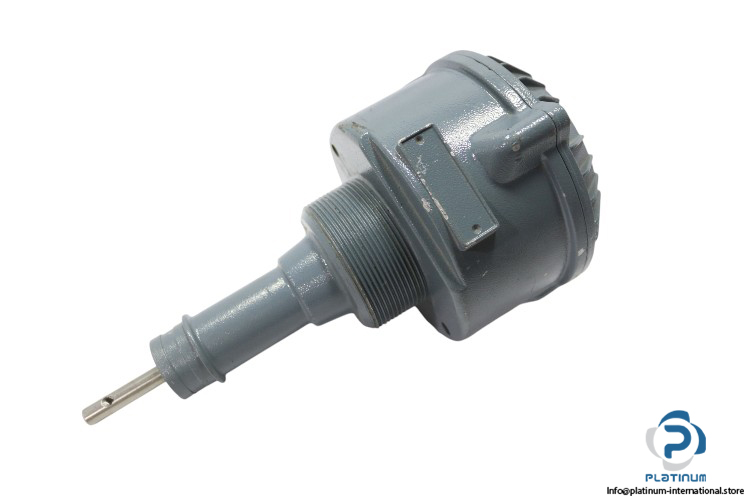

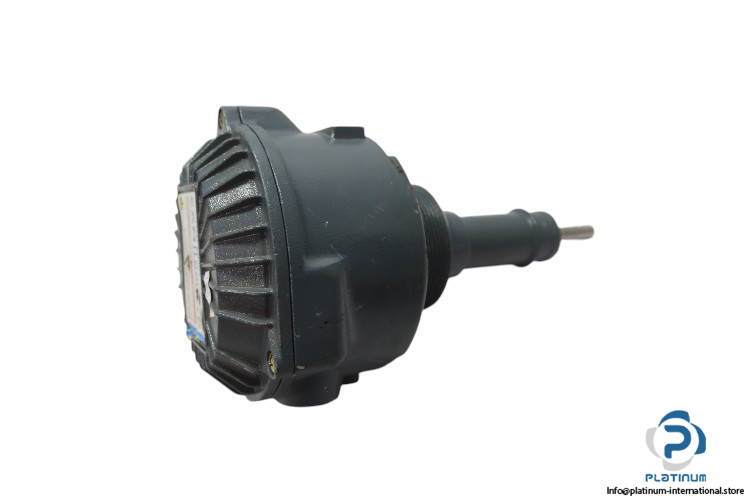

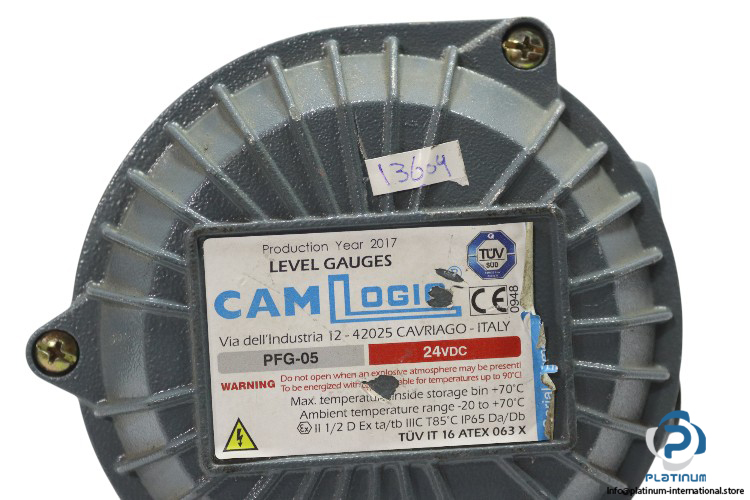

Camlogic PFG05 Rotary Paddle Level Switch
The Camlogic PFG05 Rotary Paddle Level Switch is designed for accurate level detection in industrial applications. With a rugged aluminium housing, this switch is rated for use in explosive atmospheres (EX II D ½ Ex ta/tb IIIC T85°C) and offers reliable performance across a wide temperature range. Ideal for liquids and granular materials, it ensures precise level measurement under challenging conditions.
Manufacturer: CAMLOGIC
Type: Rotary Paddle Level Switch
Model: PFG05
MRN: TUV IT 16 ATEX 063 X
REF No.: 0948
Technical Data:
- Measurement Principle: Rotary Paddle
- Power Supply: 24 V
- IP Grade: IP65
- Housing: Aluminium
- Connection: G 21/2
- Electrical Connection: M20x1.5 double cable entry
- Ambient Temperature: -20 / +70 °C
- Explosion Proof: EX II D ½ Ex ta/tb IIIC T85°C IP65
- Pressure Range: +0.8 / +1.1 bar
