Camozzi 40M2L080A0050 ISO Cylinder
중고
재고 있음1 단위즉시 배송 가능
ISO Cylinder
CAMOZZI ISO Cylinder 40M2L080A0050 is designed for pneumatic systems, featuring 80 mm bore diameter, 50 mm stroke, and a maximum pressure of 10 bar. It has a square shape, male piston rod end, and a G 3/8 pneumatic connection.103/840M2L080A005080AirbarCamozziCompressedconnectionCylinderdouble-actingGIndustrialISOmmPneumaticPressureShapeSquare
방대한 재고
글로벌 배송
전문 지원
품질 보장

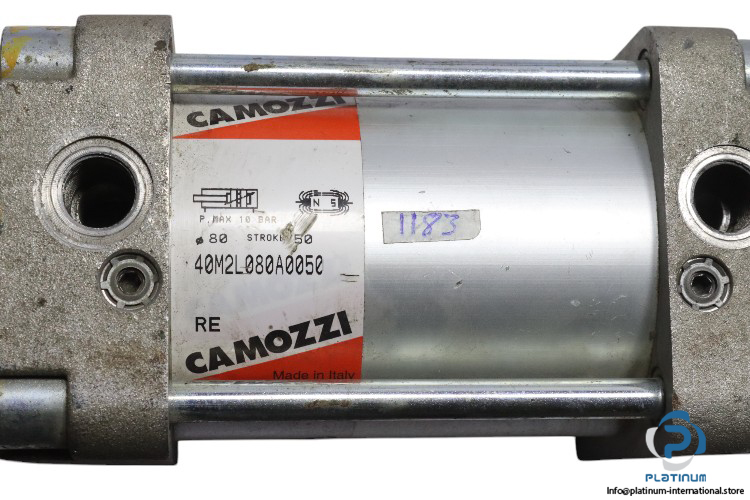

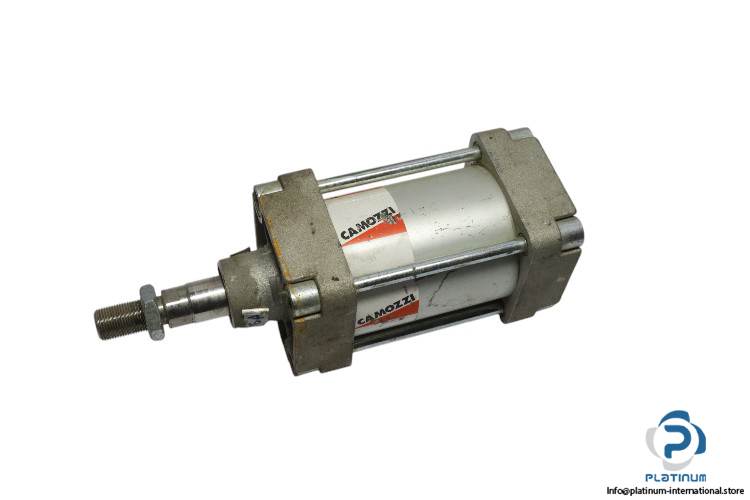

CAMOZZI ISO Cylinder 40M2L080A0050
The CAMOZZI ISO Cylinder 40M2L080A0050 is a high-performance pneumatic cylinder designed for various industrial applications. With a bore diameter of 80 mm and stroke of 50 mm, this double-acting cylinder ensures reliable operation under pressures up to 10 bar.
Manufacturer: CAMOZZI
Model: 40M2L080A0050
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 50 mm
- Bore x Stroke: 80 x 50 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 97 x 210 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
