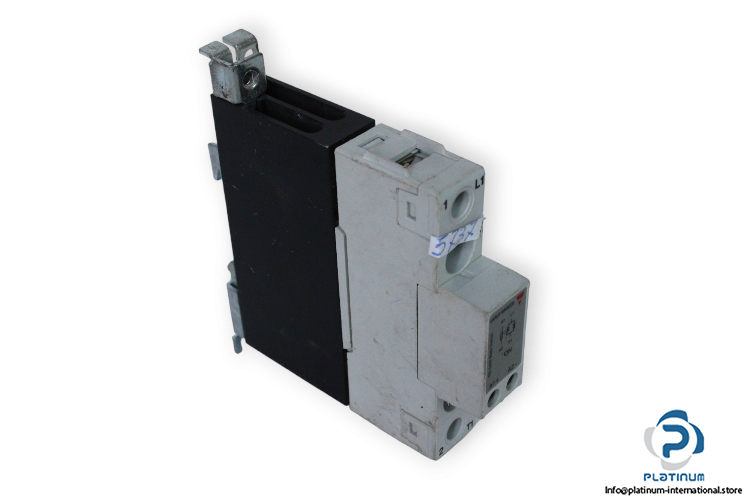

Carlo Gavazzi RGC 1 A23D15KKE Solid State Contactor

Manufacturer: Carlo Gavazzi
Type: Solid State Contactor
Model: RGC 1 A23D15KKE

Supply Voltage: 24 … 240 V AC
Frequency: 45 … 55 Hz
Power: 0.18 … 0.37 kW
Control Voltage: 3 … 32 V DC
Rated Current: 20 A (AC)
Insulation Voltage: 6 kV (AC)
Max. Torque: Output 0.2 Nm, Input 0.6 Nm
No. of Poles: 1
Mounting: DIN rail (panel mount also possible)
Material: PA66 or PA6
Operating Temperature: 0 … 80 °C
Degree of protection: IP20
Dimensions: 98.5 X 17.8 X 110 mm
