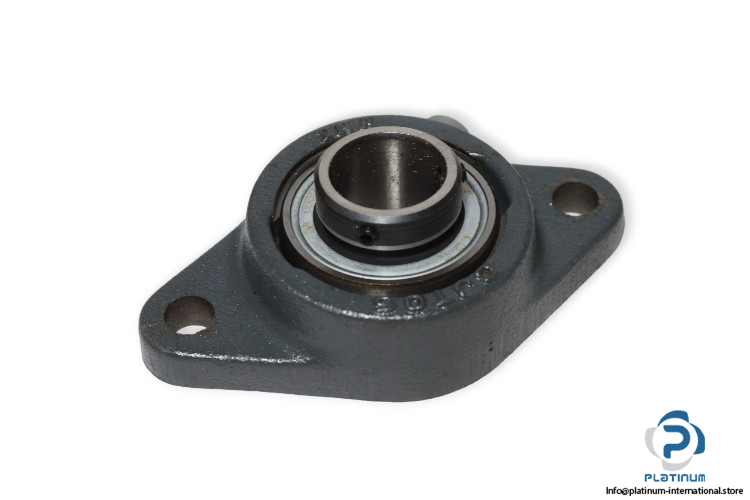

INA Pcjty 25 Flanged Housing Unit
Manufacturer: INA
Type: Flanged Housing Unit
Model: PCJTY25
Housing: CJT05

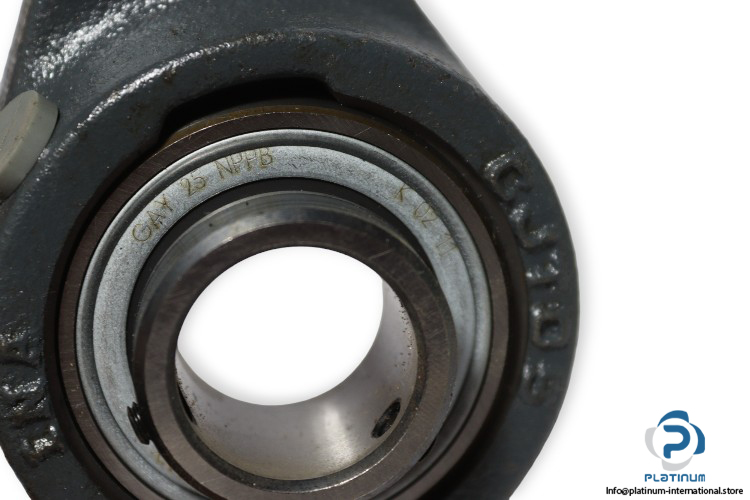

Bearing designation: GAY 25 NPPB

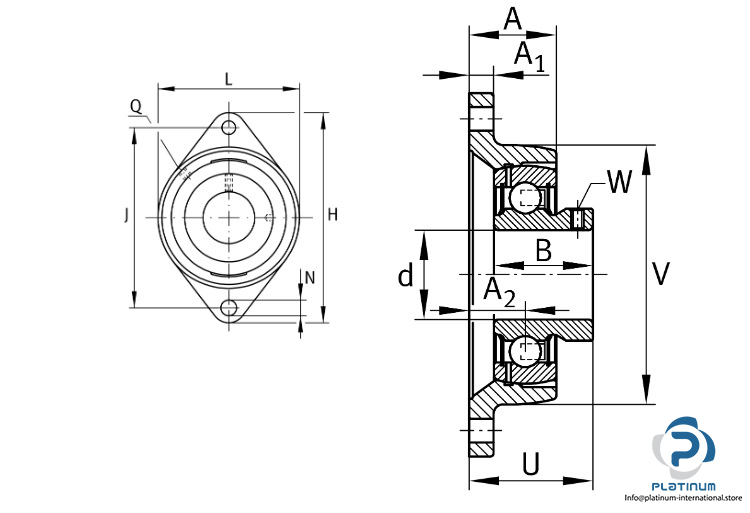

Bore Diameter d: 25 mm
Flange width L: 70 mm
Height flange H: 124 mm
Total height unit U: 38.5 mm
Distance fixing bore J: 99 mm
Fixing bore N: 11.5 mm
Basic dynamic load rating: 14000 N
Basic static load rating: 7800 N
Fatigue load limit: 335 N
Temperature range: -20 °C…100°C
