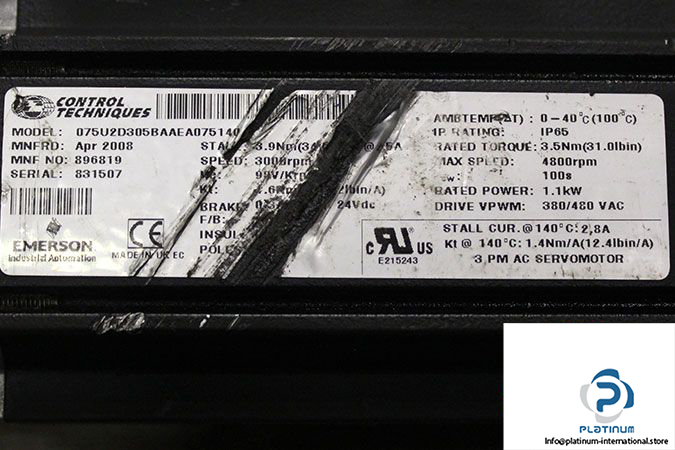

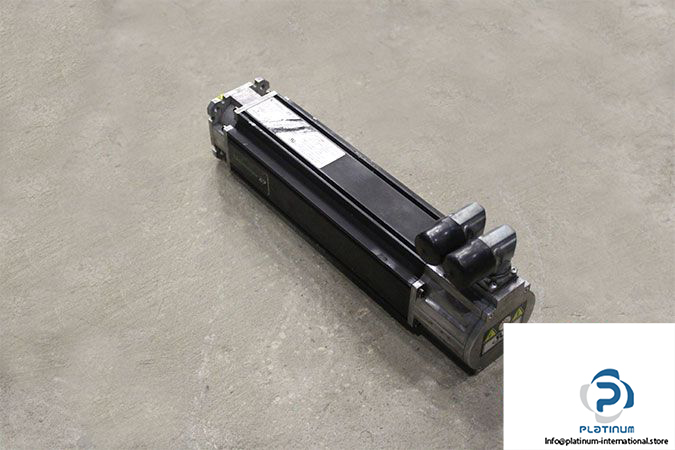

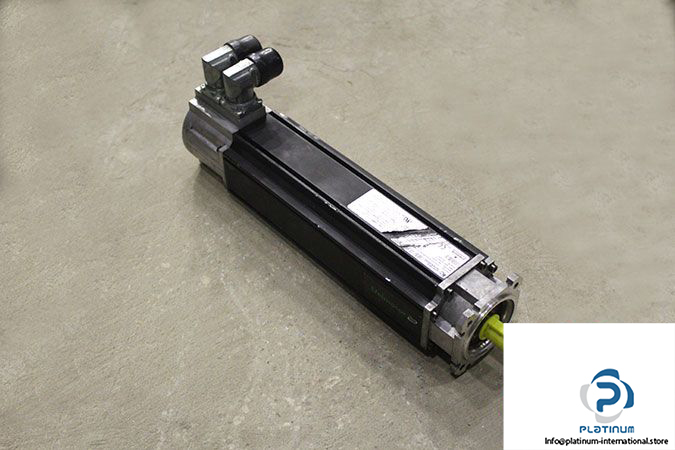

Control Techniques 075U2D305BAAEA075140 AC Servomotor

Manufacturer: Control Techniques

Type: AC Servo Motors

Model: 075 U2D305BAAEA075140

MNF No.: 896819

Frame Size: 075

Motor Voltage [V]: 400

Stator Length: D

Rated Power [kW]: 1.1

Rated Torque [Nm]: 3.5

Stall Torque [Nm]: 3.9

Rated Speed [rpm]: 3000

Max. Speed [rpm]: 4800

Constant Voltage [Vrms/krpm]: 98

Constant Torque [Nm/A]: 1.4

Output shaft: Key

Drive VPWM [VAC]: 380/480

Brake Voltage [VDC]: 24

Ambient Temperature [°C]: 0-40

Protection Class [IP]: 65

Weight [kg]: 5.815
