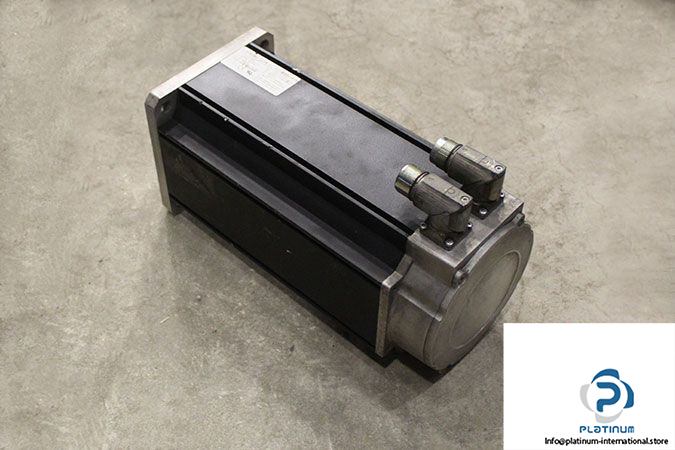

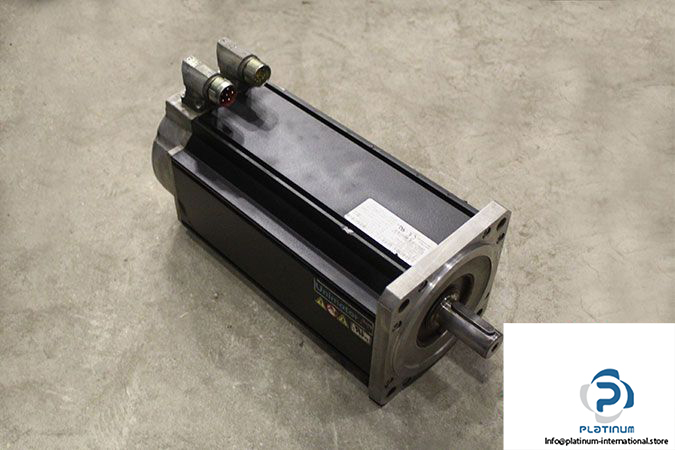

Control Techniques 142U3C305BACAA165240 AC Servomotor

Manufacturer: Control Techniques

Type: AC Servo Motors

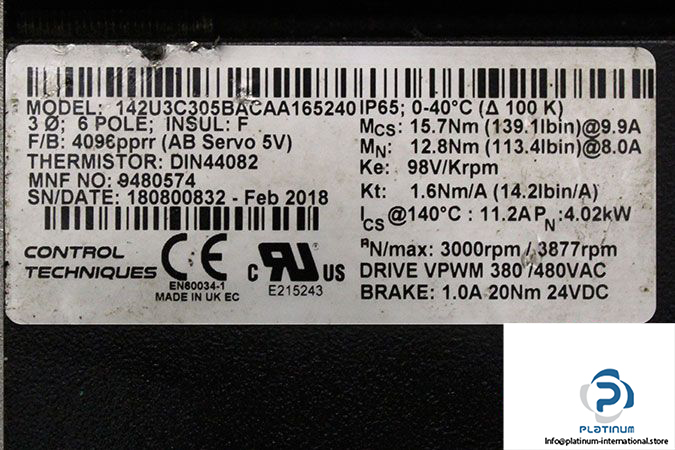

Model: 142 U3C305BACAA165240

MNF No.: 9480574

Frame Size: 142

Rated Power [kW]: 4.02

Rated Current [A]: 8.0

Rated Torque [Nm]: 12.8

Stall Current [A]: 9.9

Stall Torque [Nm]: 15.7

Rated Speed [rpm]: 3000

Max. Speed [rpm]: 3877

Constant Voltage [Vrms/krpm]: 98

Constant Torque [Nm/Arms]: 1.6

Ambient Temperature [°C]: 0 – 40

Number of Poles: 6

Brake Voltage [VDC]: 24

Brake Current [A]: 1.0

Brake Torque [Nm]: 20

Protection Class [IP]: 65

Insulation Class: F
