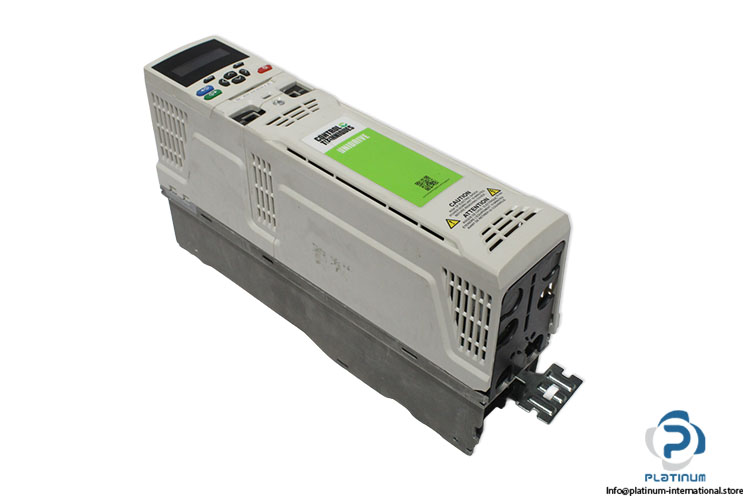

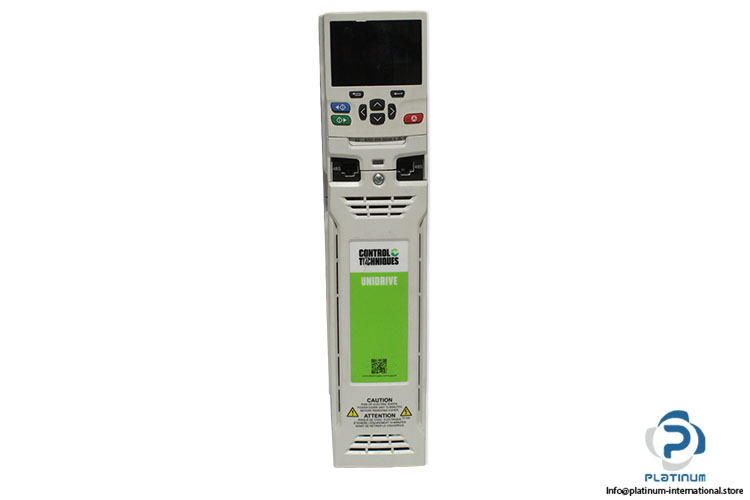

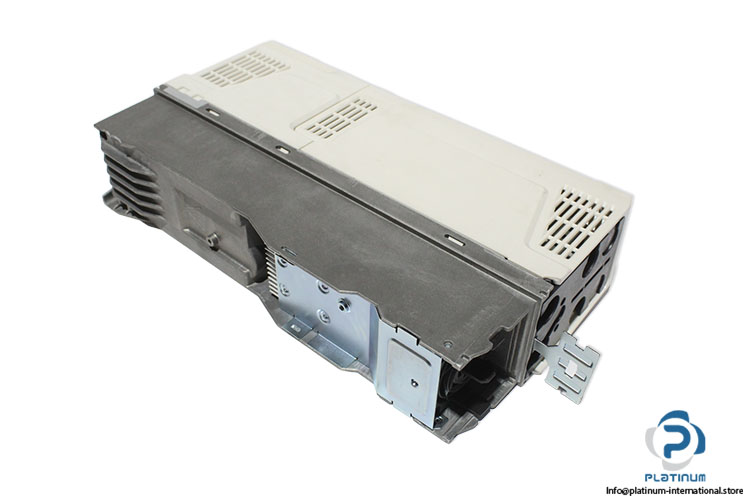

Control Techniques M701-034 00100 A Inverter Drive With Control Panel

Name: CONTROL TECHNIQUES M701-034 00100 A INVERTER DRIVE WITH CONTROL PANEL
SKU: 1097309
Availability: LimitedAvailability









신제품

재고 있음1 단위즉시 배송 가능

Inverter Drive Control Techniques M701 inverter drive with 380/480 V input, up to 5.5 kW power, and advanced control interfaces, designed for efficient industrial motor control applications.

제조업체

CONTROL TECHNIQUES

SKU

1097309

카테고리

Frequency Inverters

상태

신제품

(VSD)380-480V AC Automation Control Controller Digital Drive Efficiency High IE2 Industrial Inverter IO M motor Series Speed System Techniques Unidrive Variable VFD

방대한 재고

글로벌 배송

전문 지원

품질 보장

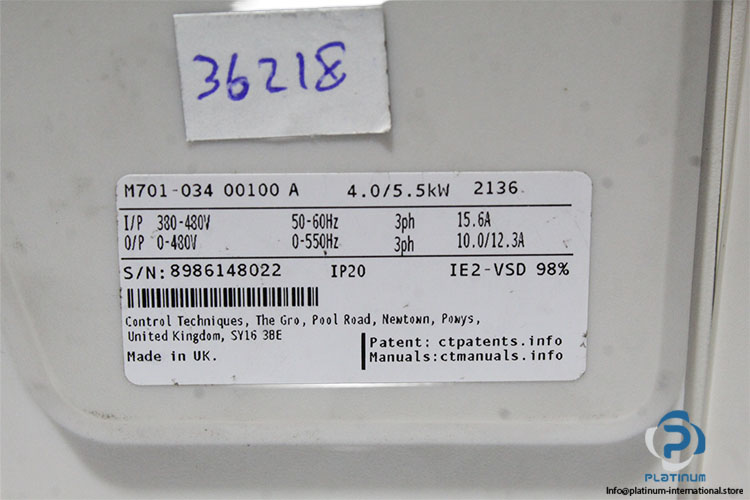

Serial No.	8986148022 / 8986148020
Ref. No.	2136
Series	Unidrive M

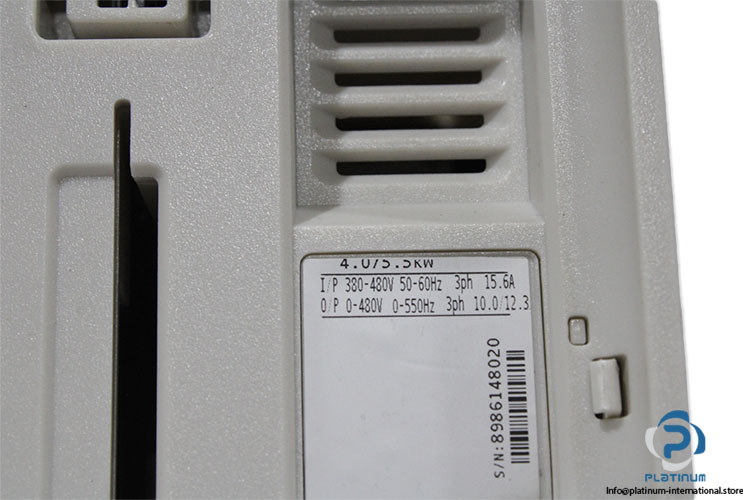

Input Voltage	380/480 V AC-3 Phase
Input Frequency	50/60 Hz
Input Current	15.6 A
Output Voltage	0 to 480 V AC-3 Phase
Output Current	10/12.3 A
Power	4.0 / 5.5 Kw
Output Frequency	0 to 550 Hz
Protection Class	IP20
Efficiency Class	IE2 - VSD 98%
Interfaces	Digital I/O, Communication Ports

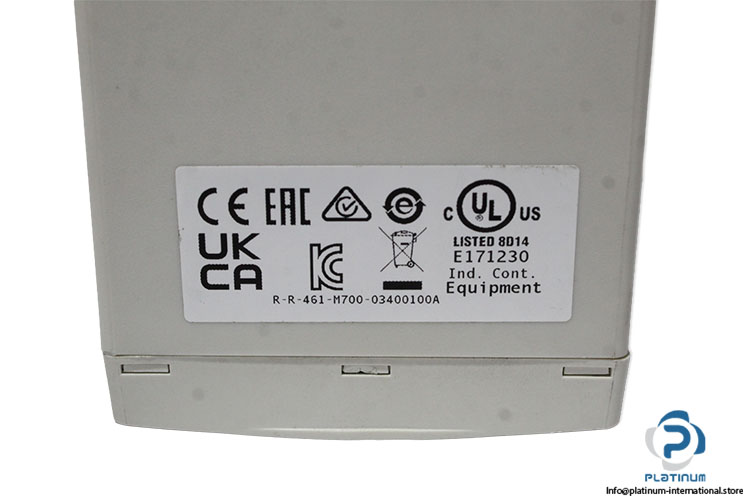

Compliance	CE, UL, UKCA, EAC Certified

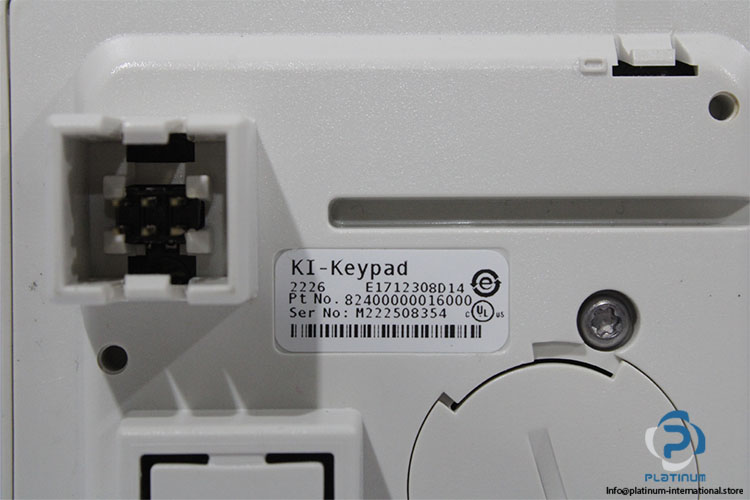

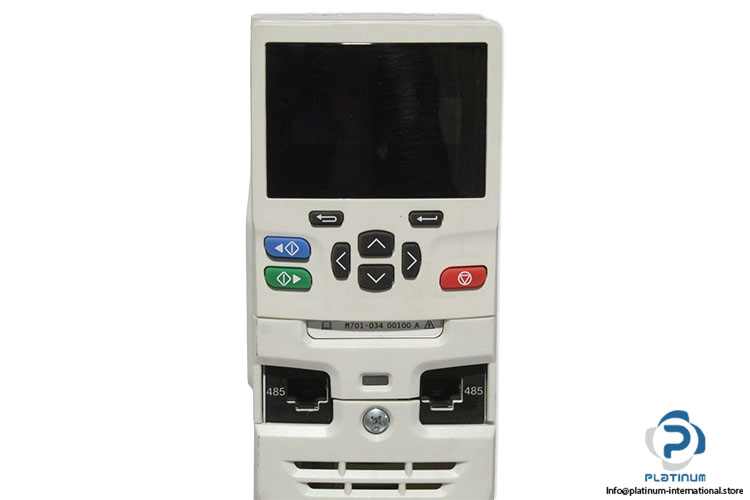

Attachment	CONTROL TECHNIQUES 82400000016000 KEYPAD/ OPERATOR PANEL
Keypad Serial No.	M222508354
Keypad Ref. No.	2226 E1712308D14
Condition	New
SKU	1097309
Weight	3,85
