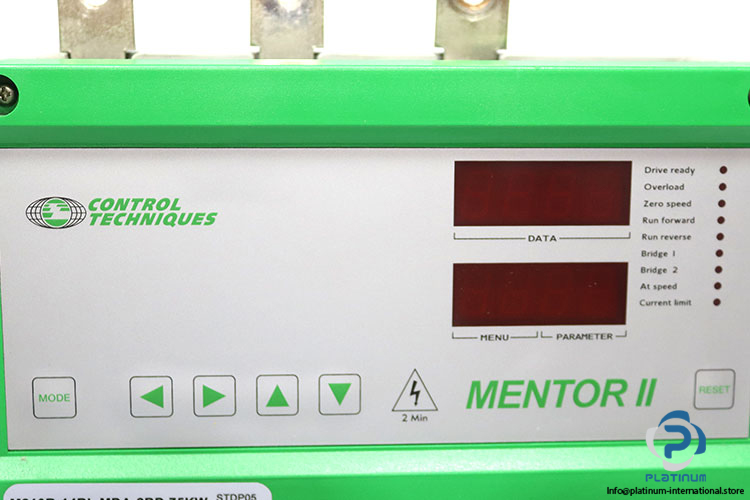

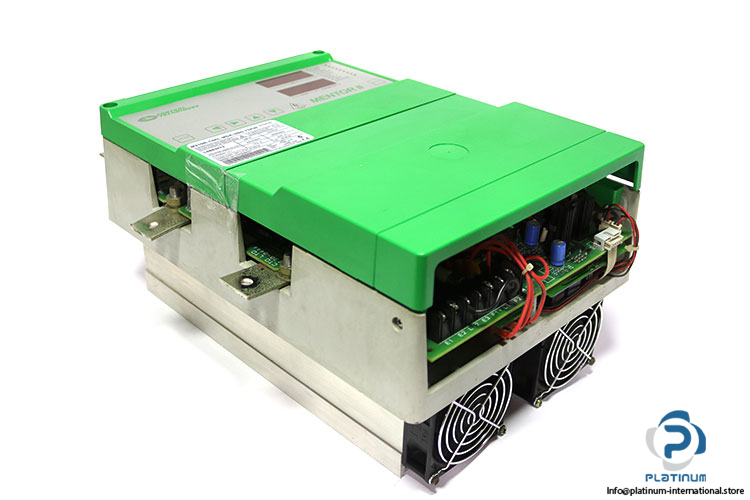

Control Techniques Mentor II M210R-14RL MDA-2BD 75KW Digital DC Drive

요청 시 제공 가능

7 666,66$

Digital DC Drive

The Control Techniques MENTOR II M210R-14RL MDA-2BD 75 kW drive provides precise DC motor control with 3-phase 220/480 V AC input, 250/530 V DC output, and IP54 protection for industrial automation.

제조업체
CONTROL TECHNIQUES
SKU
1080567
카테고리
Servo Motor Drives
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

Control Techniques MENTOR II M210R14RL MDA2BD 75 kW Digital DC Drive

The Control Techniques MENTOR II M210R-14RL MDA-2BD 75 kW Digital DC Drive delivers efficient and precise control of DC motors in demanding industrial environments. Built within the advanced MENTOR II range, it provides accurate speed and torque regulation, user-friendly configuration, and robust protection features for long-term performance.

Manufacturer: Control Techniques

Type: Digital DC Drive

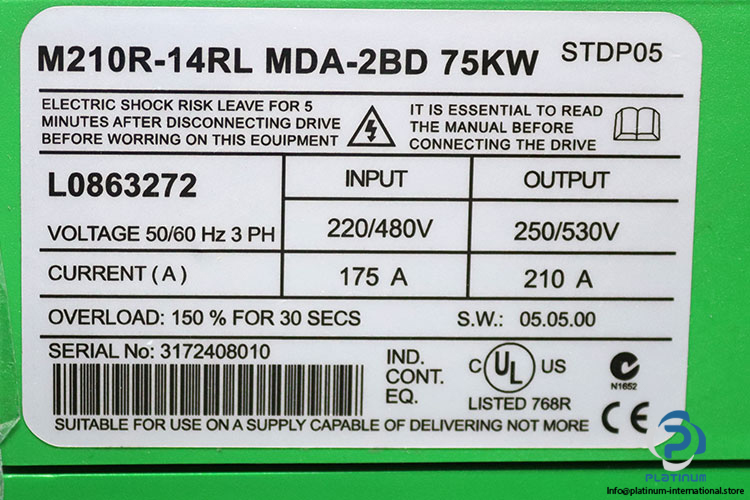

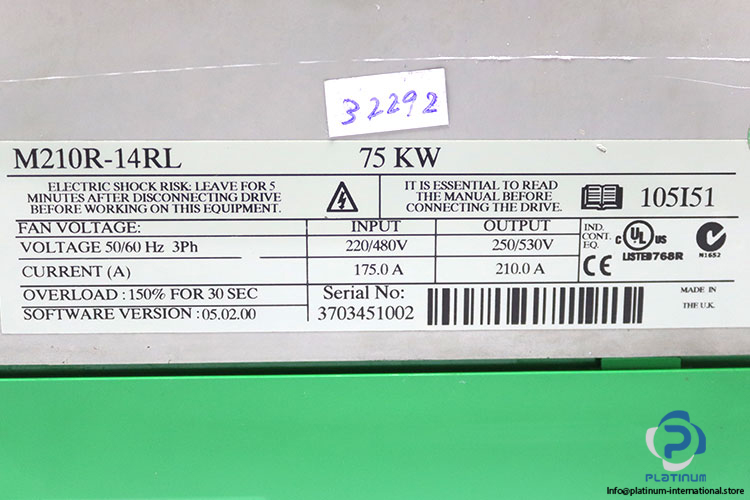

Model: MENTOR II M210R-14RL MDA-2BD 75KW

Alternative Model: L0863272 / 3172408010 / STDP05

S.W.: 05.05.00

Range: MENTOR II

Input:

Output:

Rated Voltage3 Phase 220/480 V AC
Rated Current175 A
Frequency50 / 60 Hz
Rated Voltage250/530 V DC
Rated Current210 A
Power75 kW / 100 HP
Protection ClassIP54
Operation Temperature0 / 40 °C
Dimensions370 x 250 x 195 mm
