Festo 30477 Double Solenoid Valve 13464 Coil
중고
재고 있음9 단위즉시 배송 가능
DOUBLE SOLENOID VALVE
FESTO MVH-5/3G-1/8-B valve with 13464 coil offers 5/3 closed functionality, electrical actuation, and high flow performance in compact aluminum design.134645/3AluminumClosedcoilControlDoubleFestoflowGateHighIndustrialMVH-5/3G-1/8-BPneumaticsolenoidValve
방대한 재고
글로벌 배송
전문 지원
품질 보장

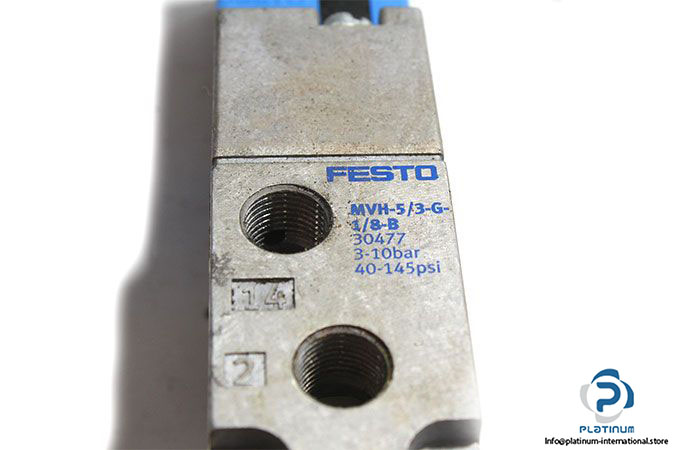

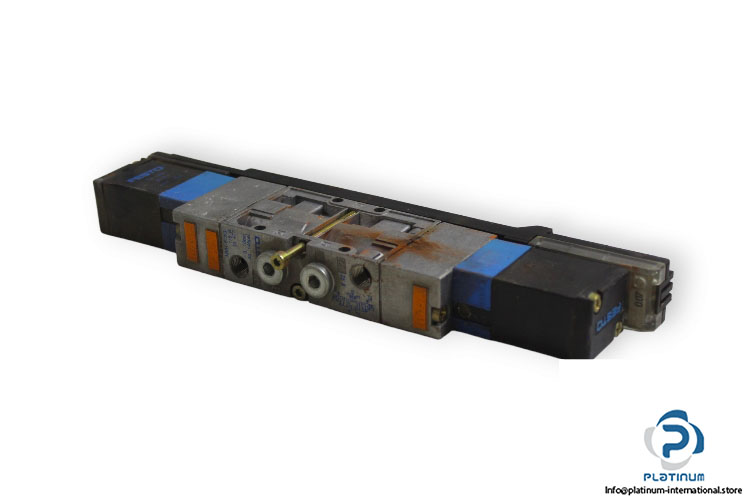

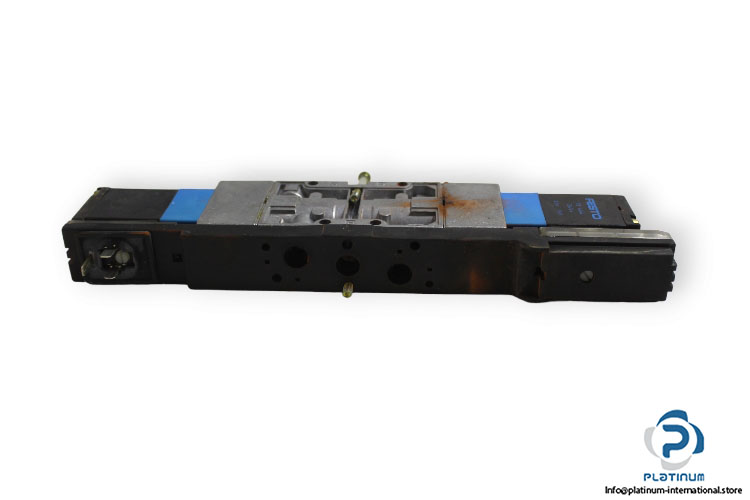

FESTO MVH-5/3G-1/8-B DOUBLE SOLENOID VALVE WITH COIL
The FESTO MVH-5/3G-1/8-B is a high-performance double solenoid valve designed for precise pneumatic control. Engineered with a piston gate valve design and 5/3 closed functionality, this valve ensures dependable operation across a wide range of industrial applications. It includes the FESTO 13464 solenoid coil for optimal performance and electrical control.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MVH-5/3G-1/8-B
Part No.: 30477
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | G1/8 |
| Material | Aluminum die cast |
| Ambient Temperature | -5 / 50 °C |

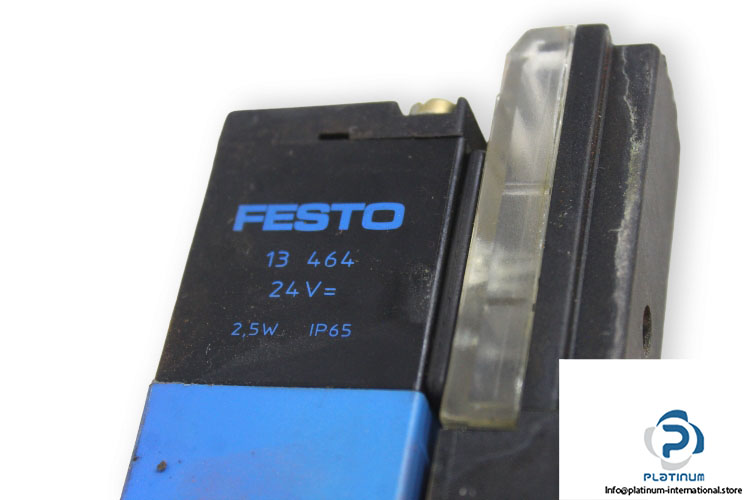

| Attachment | FESTO 13464 SOLENOID COIL |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
