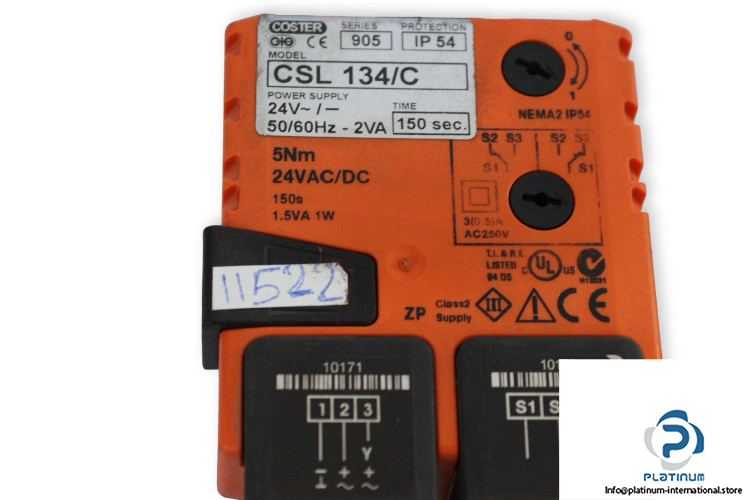

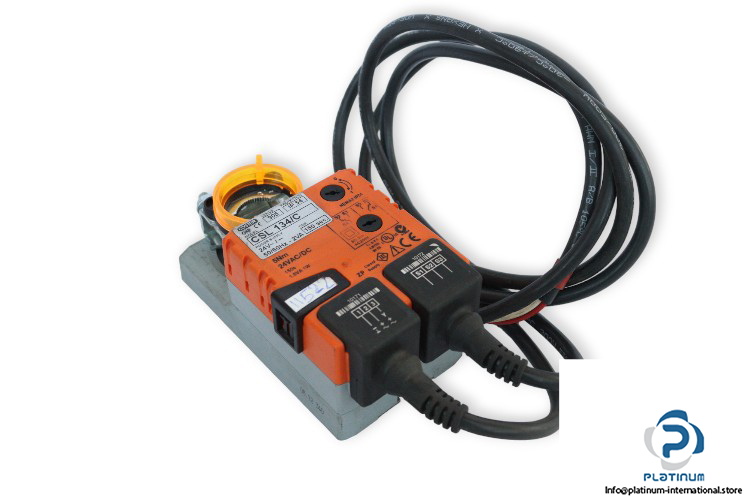

Coster CSL 134/C Damper Actuator
중고
재고 있음1 단위즉시 배송 가능
유형: 댐퍼 액추에이터
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Coster
Type: Damper Actuator
Model: CSL134/C
Used: for the regulation of air dampers in systems mechanics and technology of buildings
Torque motor: 5 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / DC 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption: 1 W
Power For transformer sizing: 1.5 VA
Auxiliary switch: 1 SPDT, 3 A (0.5 A), AC 250 V
Angle of rotation max.: 95°
Running time: 150s
Degree of protection: IP54
Ambient temperature: -30 … 50°C
Dimensions: 61 x 116 x 157 mm
