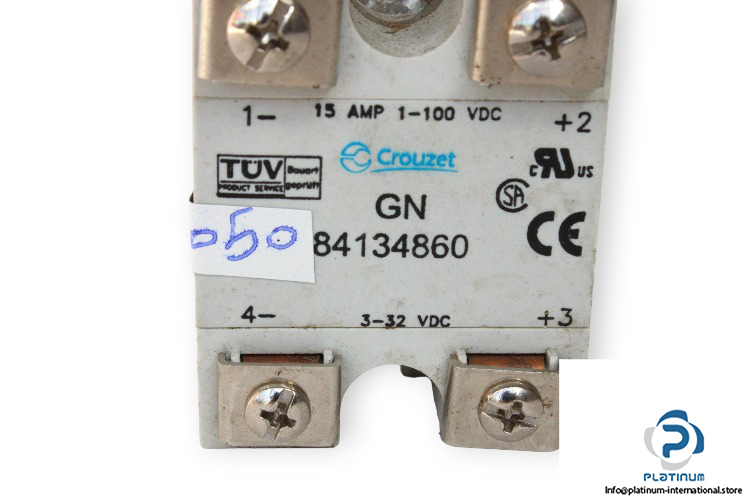

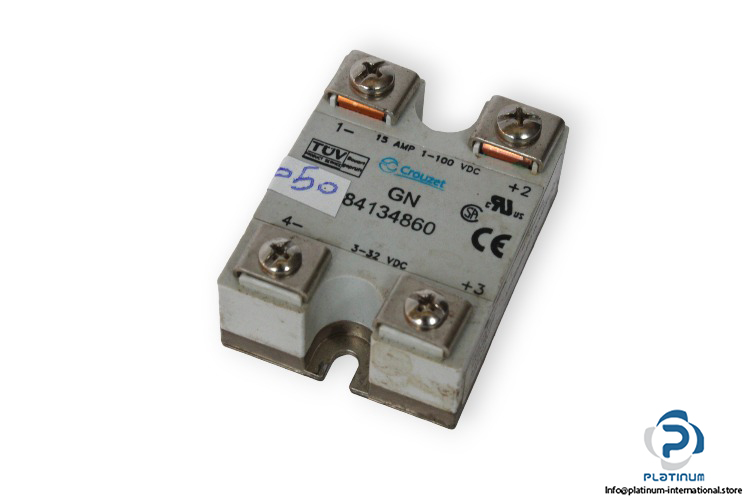

Crouzet 84134860 Solid State Relay

Manufacturer: Crouzet

Type: Solid State Relay

Part No.: 84134860

Series: 8413

Control Voltage: 3 … 32 V DC

Operating Voltage Range: 1 … 100 V DC

Current: 15 A

Package style: IP00

Maximum Input Current: 20 mA

Output type: Mosfet

Turn-on time: 2 ms

Turn-off time: 50 µs

Housing Material: UL 94V0

Status Indicating Display: Green

Ambient Operating Temperature: -40 … 80 °C

Dimensions: 44.5 x 47.8 x 22.6 mm
