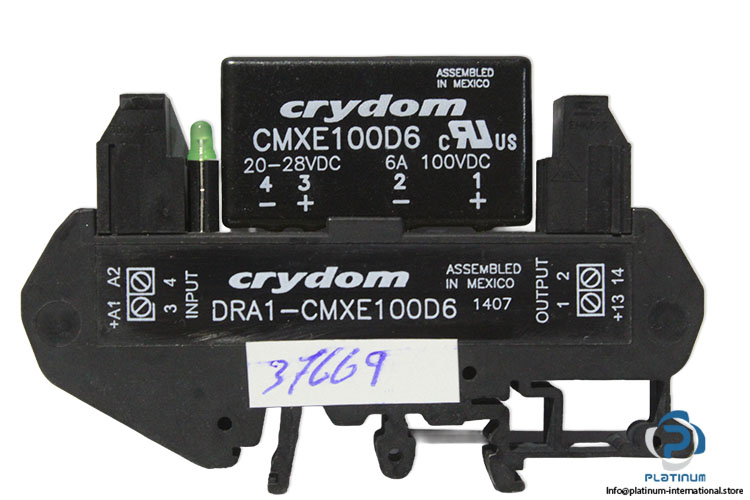

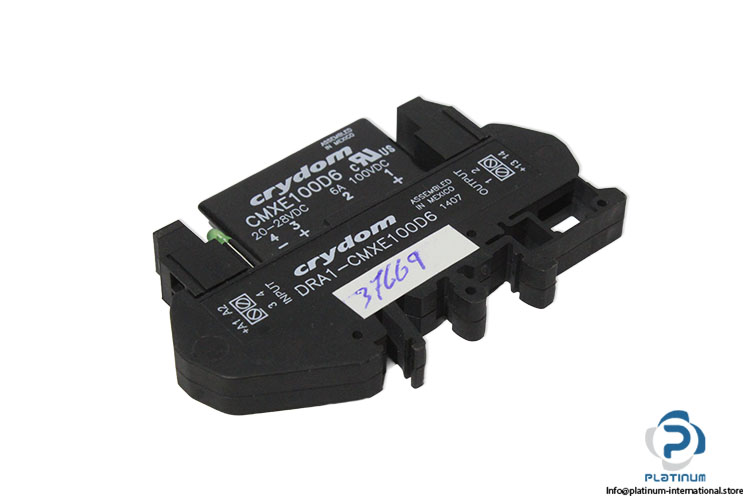

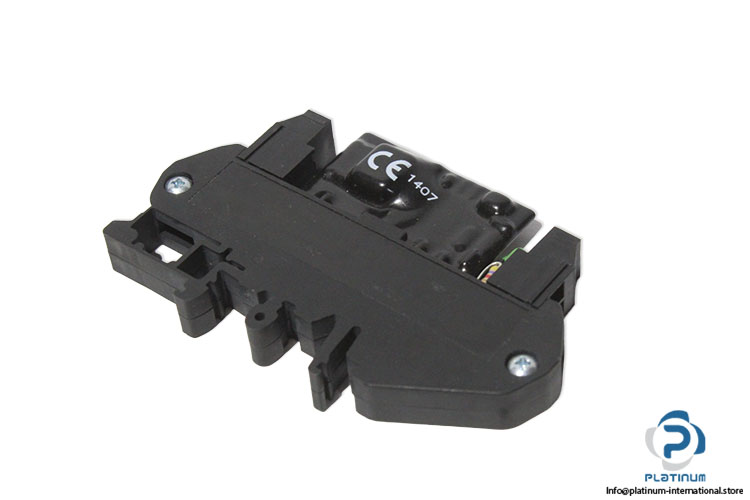

Crydom DRA1-CMXE100D6 DC Output Relay
신제품
재고 있음2 단위즉시 배송 가능
DC Output Relay The CRYDOM DRA1-CMXE100D6 is a DIN-rail mounted DC output relay designed for industrial automation systems. It features a 20–28 VDC control input, 1–100 VDC output range, 6 A switching capacity, and high dielectric isolation for reliable, maintenance-free operation.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Control Voltage | 20 to 28 VDC |
| Current | max. 6A |
| Typical Input Current | 12 mAdc at 20 Vdc |
| Operating Voltage | 1 to 100 VDC |
| Off-Sate Resistance | 0.04 Ohm |
| Nominal Input Impedance | 240 Ohm |
| Dielectric Strength | 2500 Vrms |
| Capacitance, Input/Output | max. 15 pF |
| Mounting method | DIN-rail |
| Fits | standard 35mm DIN rai |
| Ambient Temperature | -20 to 125°C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093400 |
| Weight | 0,03 |
