CS3493025035 Round Cylinder
중고
재고 있음1 단위즉시 배송 가능
Round Cylinder
The CS3493025035 double-acting round cylinder features a 25 mm bore and 35 mm stroke, with G1/8 connection and 10 bar pressure rating for compressed air systems in industrial automation.2535ActingActuatorAirboreCompressedCS3493025035CylinderDoubleIndustrialmmNC1335955931PneumaticRoundStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장

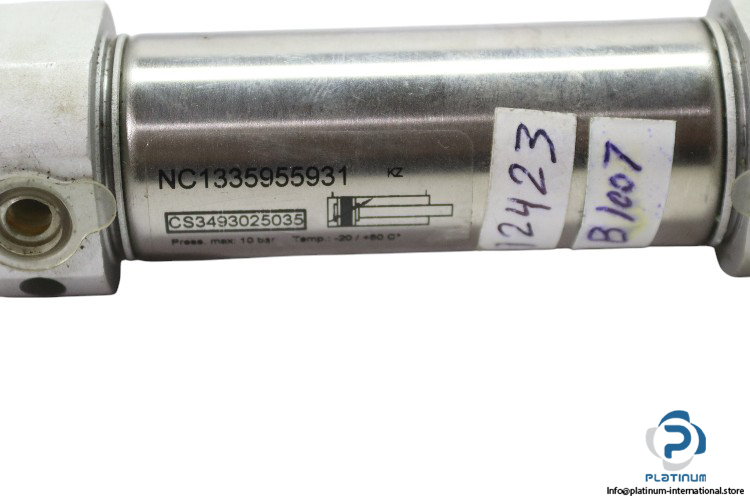

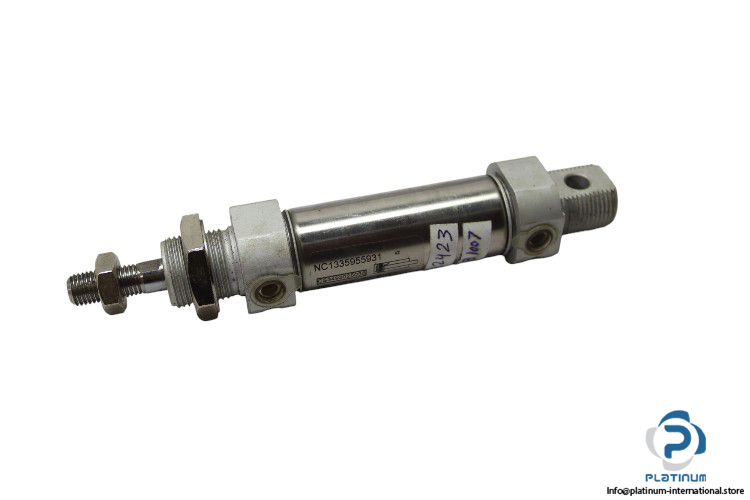

CS3493025035 “ Round Cylinder
The CS3493025035 is a compact round pneumatic cylinder engineered for efficient linear actuation in industrial automation systems. With a 25 mm bore and 35 mm stroke, it supports double-acting operation and offers robust performance under varying environmental and pressure conditions.
Type: Round Cylinder
Model: CS3493025035
MNR: NC1335955931
| Bore Diameter | 25 mm |
| Stroke | 35 mm |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double acting |
| Shape | Circular |
| Max. Operating Pressure | 10 bar |
| Operating Temperature | -20 to 80°C |
