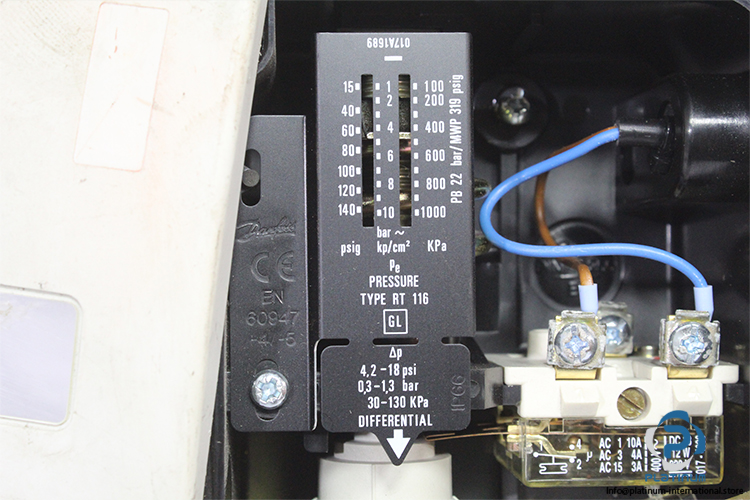

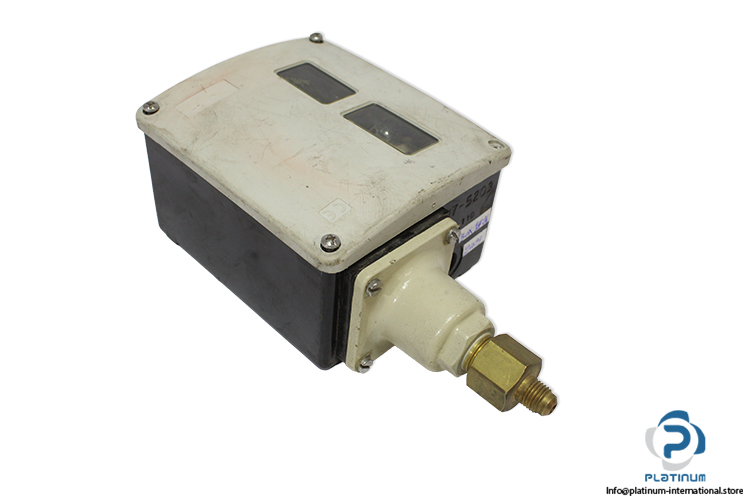

Danfoss RT 116 Pressure Switch
중고
재고 있음1 단위즉시 배송 가능
Pressure Switch DANFOSS RT116 pressure switch with adjustable range 1–10 bar, SPDT contact, IP66 protection, and stainless steel bellows for reliable industrial pressure control.
방대한 재고
글로벌 배송
전문 지원
품질 보장

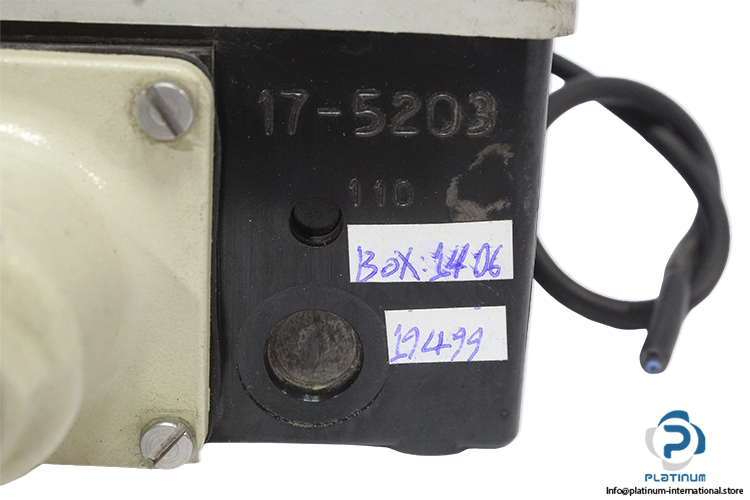

| Part No. | 17-5203 |
| Part No. | 017A1689 |
| Regulation Pressure range [bar] | 1 – 10 |
| Differential Pressure [bar] | 0.33 - 1.3 |
| Contact function | SPDT |
| Reset function | Auto |
| Pressure connection type | G |
| Pressure connection size | 3/8 |
| Pressure Male/Female | Male |
| Enclosure rating IP | IP66 |
| Max. Working Pressure [bar] | 22 |
| Ambient temperature | -50 – 70 °C |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Dimension | 110 x 127 x 74 mm |
| Pressure Bellows | Stainless Steel |
| Standard | EN 60947 |
| AC15=3 A | 400 V |
| AC1=10 A | 400 V |
| AC3=4 A | 400 V |
| DC13=12 W | 220 V |
| LR=28 A | 400 V |
| Condition | Used |
| SKU | 1096754 |
| Weight | 0,9 |
