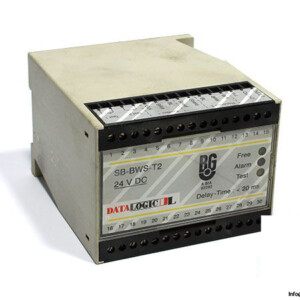

Datalogic SB-BWS-T2 Safety Control Unit
신제품
재고 있음2 단위즉시 배송 가능
Safety Control Unit
The Datalogic SB-BWS-T2 is a compact, high-performance safety control unit compatible with Datalogic light curtains. It features dual relay outputs, 24 V DC supply, and supports sensor distances up to 50 meters.
중고
재고 있음
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장
Datalogic SB-BWS-T2 Safety Control Unit
The Datalogic SB-BWS-T2 is a high-reliability safety control unit designed to manage and monitor safety light curtains in industrial automation systems. With compatibility across multiple sensor models and dual safety relay outputs, it ensures maximum safety and system efficiency in a wide range of applications.

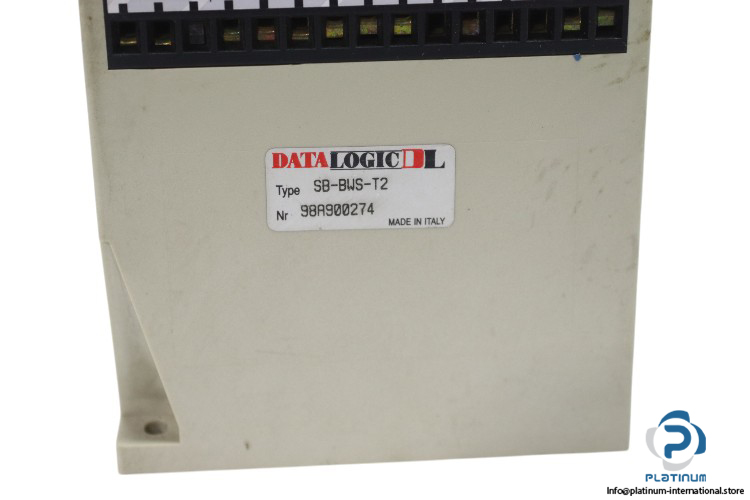

Manufacturer: Datalogic
Type: Safety Control Unit
Model: SB-BWS-T2
Part No.: 98A900274
Operating Distance:
0 to 8 m with S5-F/G-ST2 or S10-F/G-ST2
0 to 50 m with S30-F/G-ST2
| Supply Voltage | 24 V DC |
| Current Rating | 180 mA max |
| Output Type | 2 safety relays with NO contact |
| Output Current | 4 A |
| Response Time | 20 ms max |
| Temperature Range | 0 to 50°C |
| Mechanical Protection | IP20 |
