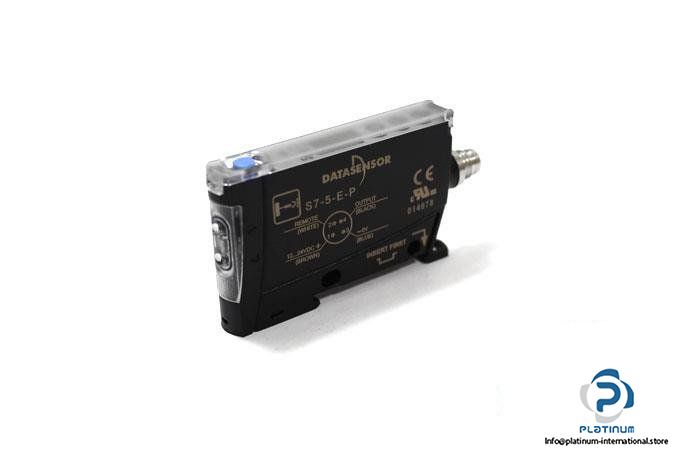

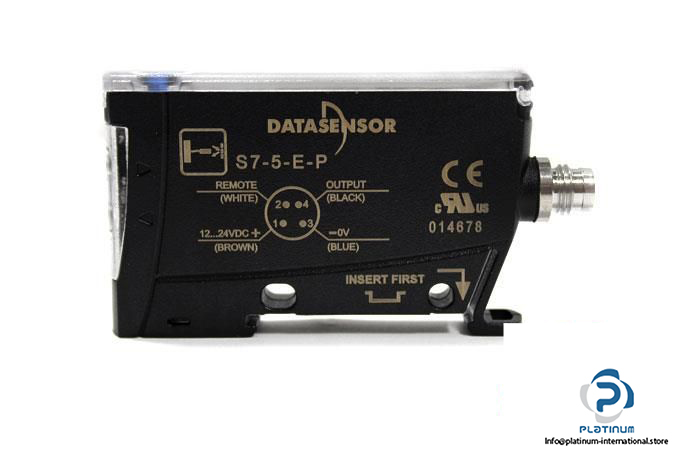

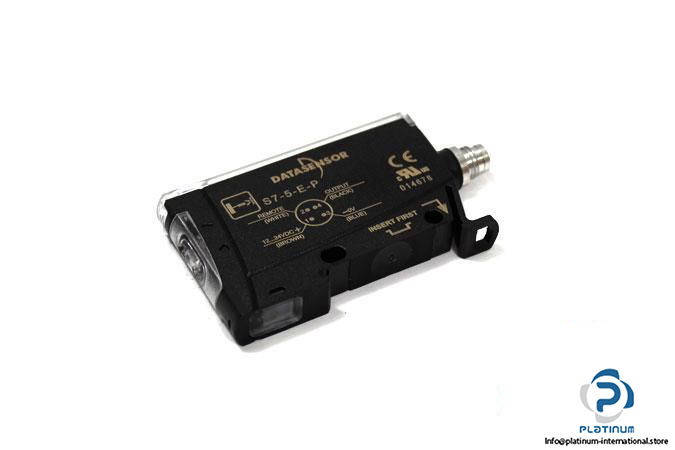

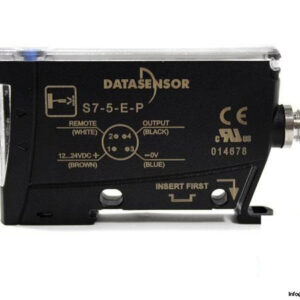

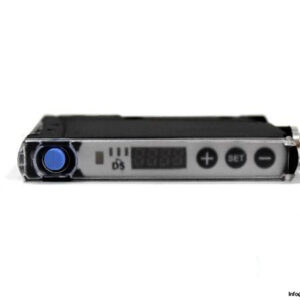

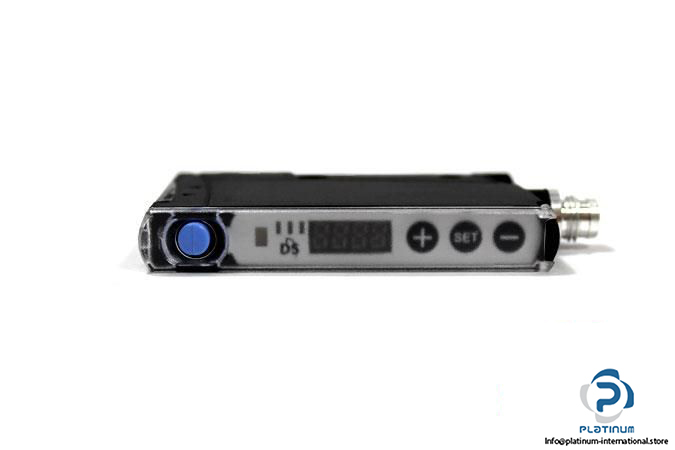

Datasensor S7-5-E-P Fiber-Optic Amplifier

Manufacturer: DATASENSOR DATALOGIC

Type: FIBER-OPTIC SENSOR AMPLIFIER

Model: S7-5-E-P

Order No.: 950551030

Operating Distance (Normal Mode): 0 … 100 mm

Operating Distance (Fast Mode): 0 … 100 mm

Through Beam Operating Distance (Normal Mode): 0 … 300 mm

Through Beam Operating Distance (Fast Mode): 0 … 300 mm

Response Time (Normal Mode, Fast Mode): 500, 100 ms

Switching Frequency (Normal Mode, Fast Mode): 1, 5 kHz

Operating Voltage: 12 … 24 V DC

Current Consumption: ≤ 50 mA

Electrical Design: PNP

Switching Output: Normally Open

Operating Mode: Light with EASYtouch or Trimmer, Automatic Dark / Light

Type of Light: Red LED

Adjustment: Teach-in SET Button

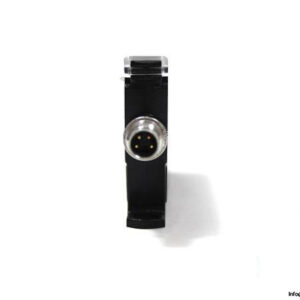

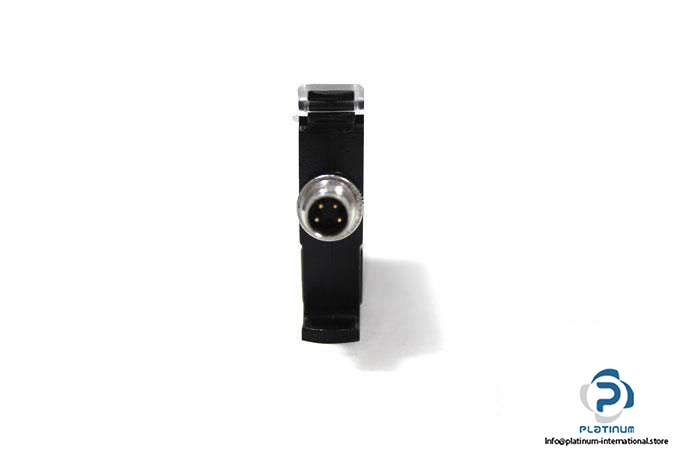

Connector Type, Length: M8 Connector, 4-Pin

Housing: Rectangular

Enclosure Rating: IP65

Ambient Operating Temperature: -10 … 55°C

Dimensions: 40 x 10 x 64 mm

Weight: 115 g
