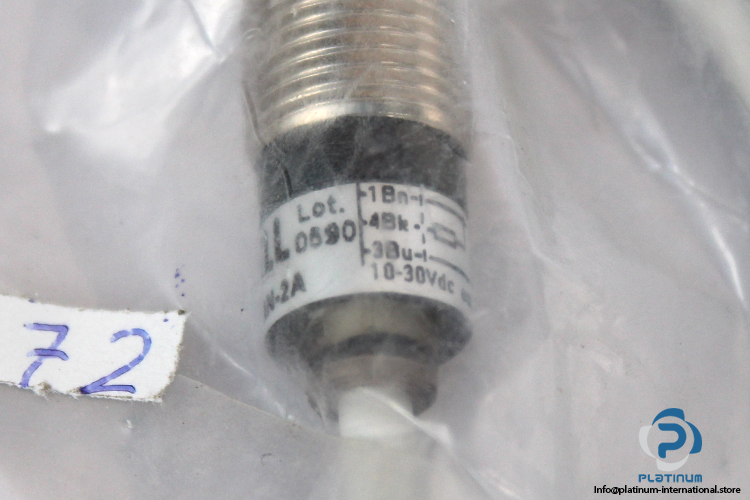

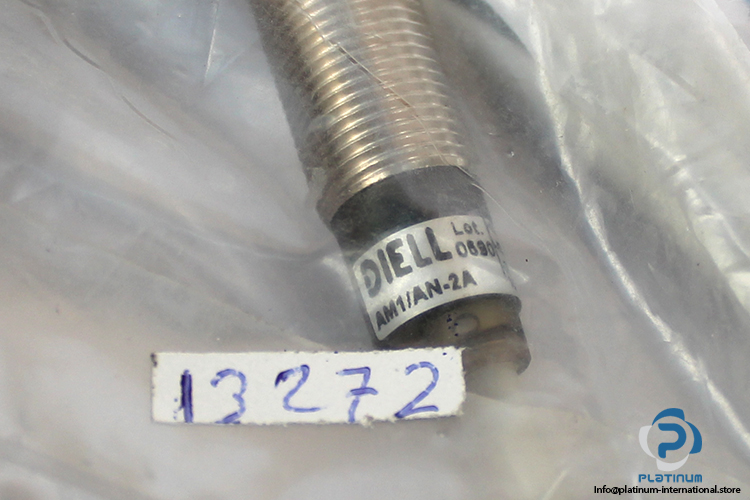

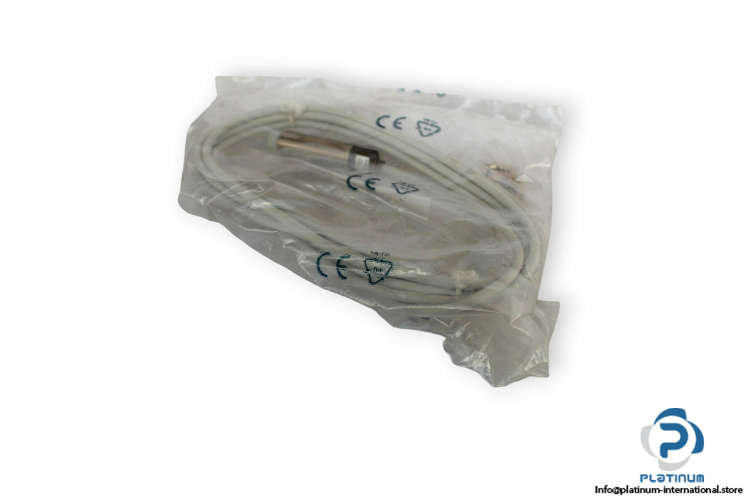

Diell AM1/AN-2A Inductive Sensor

Manufacture: Diell
Type: Inductive Sensor
Model: AM1/AN-2A

Supply voltage: 10 … 30 V DC
Nominal distance range: 4 mm
Operating range: 0 … 3.2 mm
Electrical Design: NPN
Contact: Normally open
Absorption of current in the vacuum: ≤ 10mA
Load current: ≤ 200mA
Leakage current : ≤ 10µA
Body material: nickel-plated brass
Connections: Cable PVC 2m – Output axial
Material of the active surface: PBT
Tightening torque: 10 Nm
Degree of protection: IP 67
Operating temperature: -25 …+70°C
Dimensions: M12 x 1 / L = 49,8 mm
