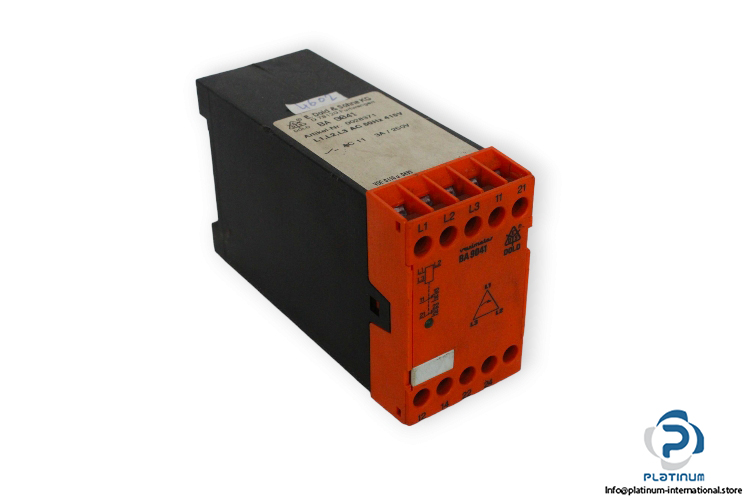

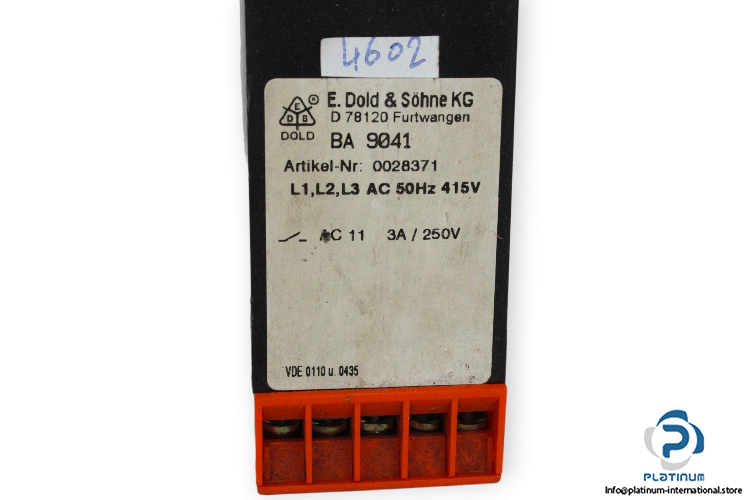

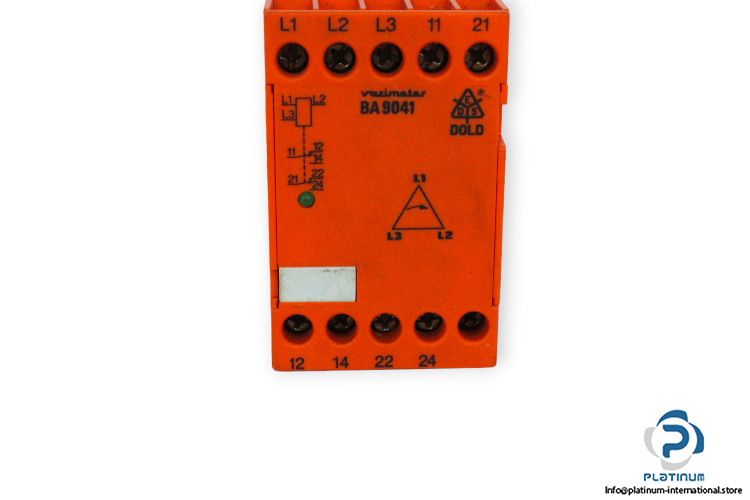

Dold 0028371 Phase-Sequence Relay
중고
요청 시 제공 가능
상 순서 릴레이
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Dold
Type: Phase-sequence relay
Model: BA 9041
Art. No.: 0028371
Nominal voltage UN: 415 V AC/3-phase
Nominal frequency of UN: 50 Hz
Nominal consumption: < 3.5 VA
Contact rating: 2 changes over contact (SPDT)
Rated operational current Ie: 3 A
Switching capacity
AC-11: 250 V AC,3 A
Operation temperature: -20 … + 60°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 73,2 x 119,8 mm
