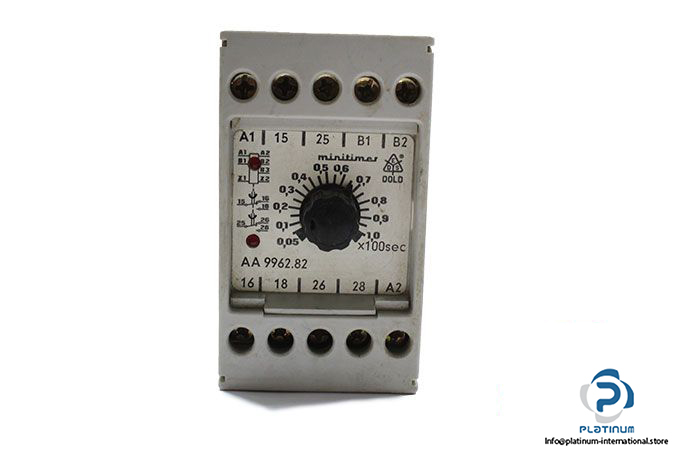

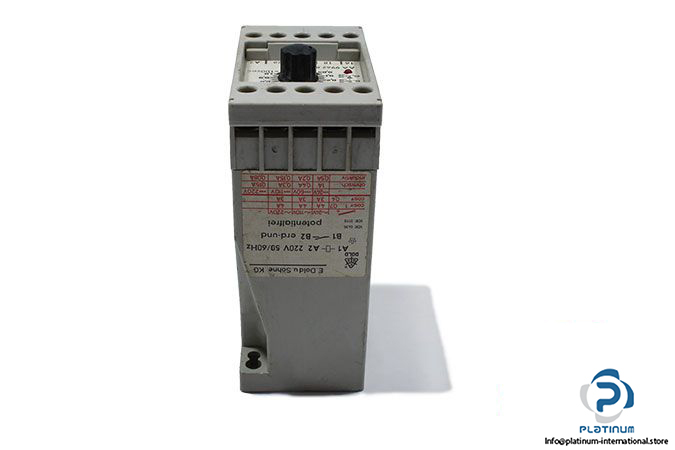

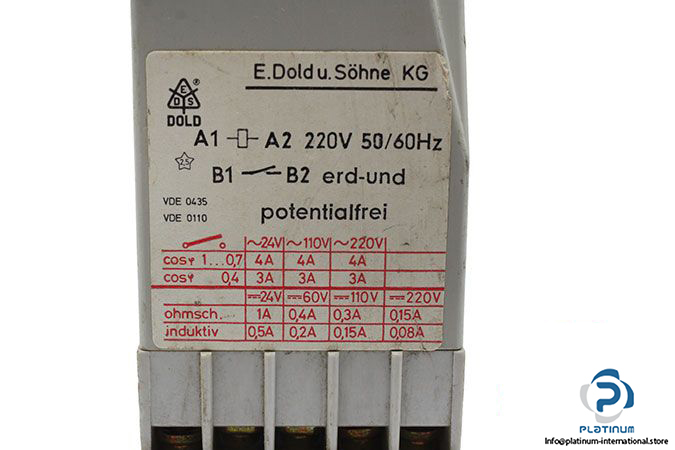

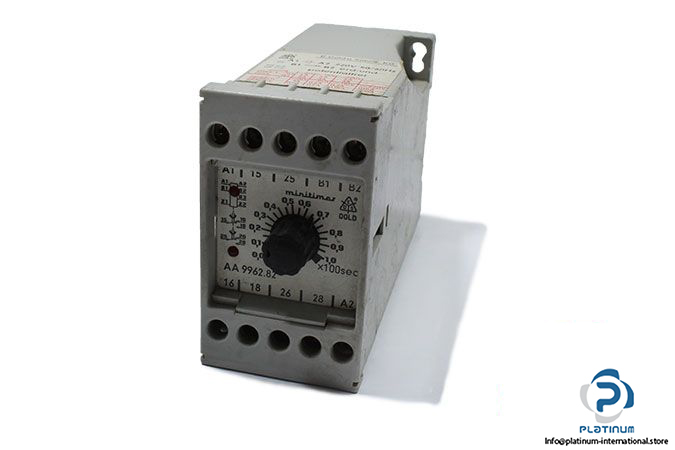

Dold AA 9962.82 Timer
Manufacturer: DOLD
Type: Timer
Model: AA 9962.82
Applications: Time-dependent controllers
Coil Voltage: 220 VAC
Frequency: 50/60 Hz
Nominal Power Consumption: 3.5VAC ; 24 VDC, 1 W ; 48 VDC, 2 W ; 60 VDC, 2 W ; 110 VDC, 2 W ; 220 VDC, 3 W ; 240 VDC, 3 W
Output Contacts: 1 delayed changeover contact
Degree of Protection Housing/ Terminals: IP 40 / IP20
Electrical Life: 0.5 X 105 switching cycles
Time Ranges: 0.05 … 1 s
Ambient Temperature: – 20 … + 60°C
Dimensions: 45 X 77 X 127 mm
Weight: 0.24 Kg
