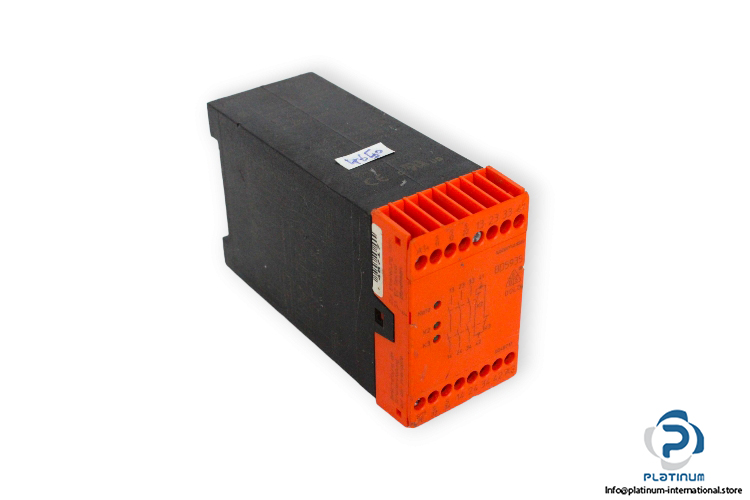

Dold BD5935.48/61 Emergency Stop Module
Manufacture: Dold
Type: Emergency Stop Module
Model: BD59354861
Art. No.: 0048717
Nominal voltage UN: 230 V AC
Nominal frequency of UN: 50/60 Hz
Contact rating: 3 NO,1 NC
Switching capacity: 230 V AC,3 A
Operation temperature: -15 … 55°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 45 x 74 x 121 mm
