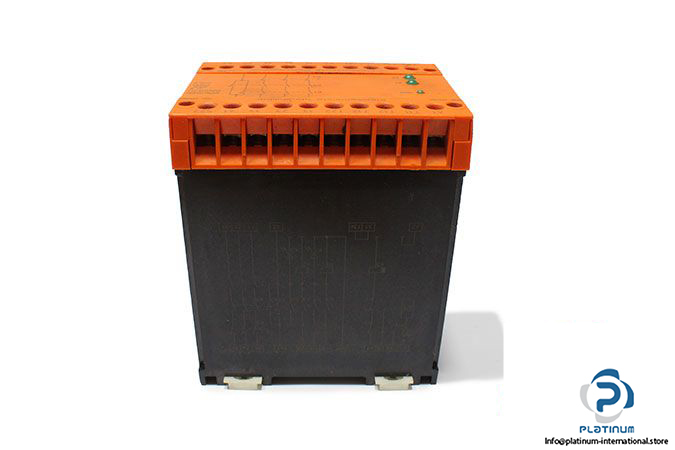

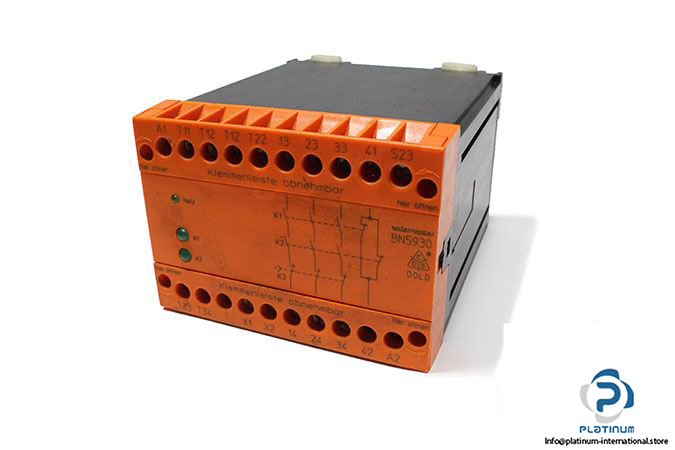

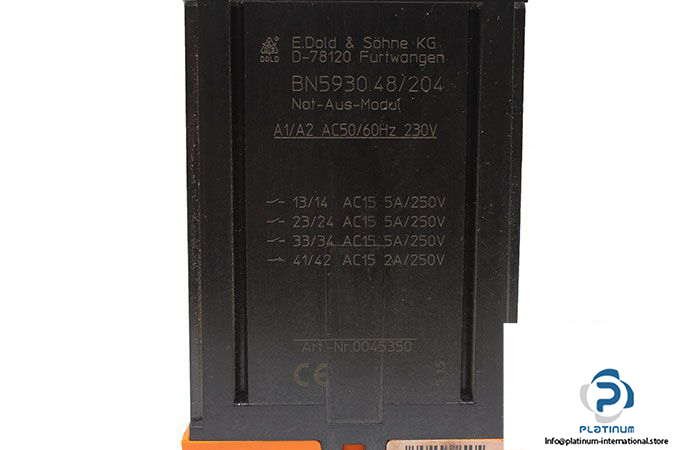

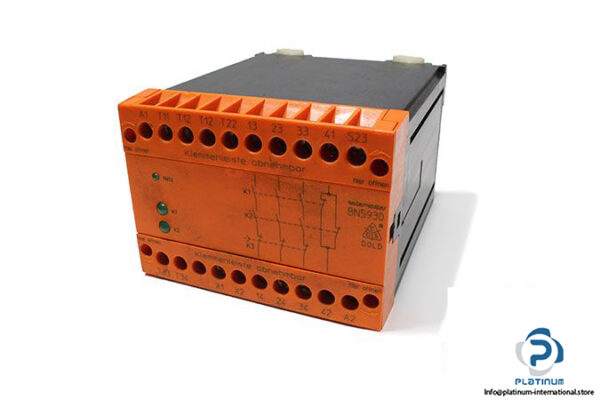

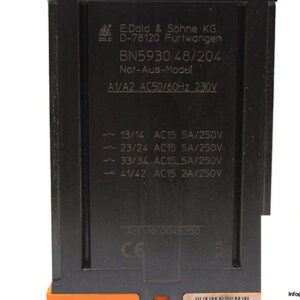

Dold BN 5930.48/204 Emergency Stop Module
Manufacturer: DOLD
Type: Emergency Stop Module
Model: BN5930.48/204
Art. No.: 0045350
Nominal Voltage: 230 VAC
Nominal Consumption: Approx. 3.9 VA
Nominal Frequency: 50 / 60 Hz
Control Current: approx. 12 mA
Output Contact: 3 NO, 1 NC
Contact Rating: 250 VAC, 5 A
Operating Mode: Continuous operation
Ambient Temperature: – 15 … 55 °C
Degree of protection Housing /Terminals: IP 40 / IP 20
Dimensions: 100 x 74 x 121 mm
Weight: 0.6 Kg
