Hydraulic System Filter Elements

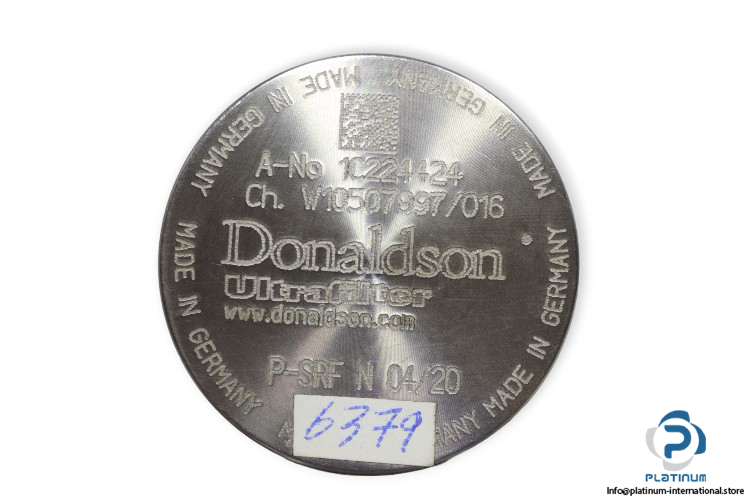

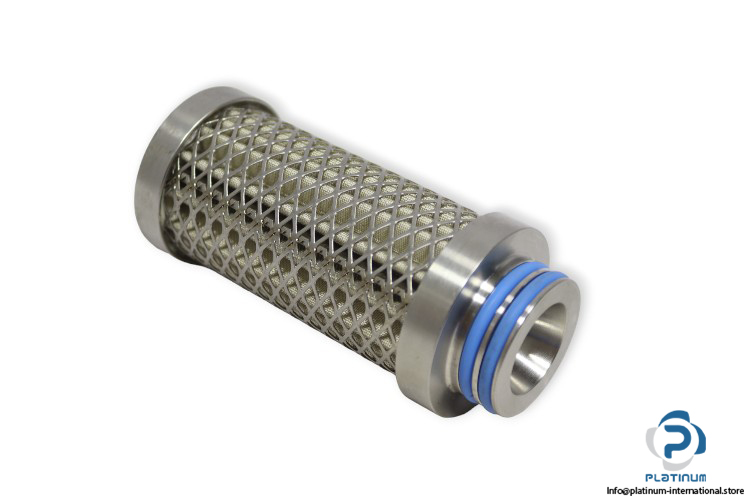

Donaldson P-SRF N 04/20 Replacement Filter Element

Name: DONALDSON P-SRF N 04/20 REPLACEMENT FILTER ELEMENT
SKU: 1042031
Availability: LimitedAvailability

donaldson-P-SRF-N-04_20-filter-element-new

donaldson-P-SRF-N-04_20-filter-element-new-2

신제품

재고 있음5 단위즉시 배송 가능

제조사: Donaldson / Ultrafilter 유형: 교체 필터 요소 모델: P-SRF N 04/20 부품 번호: 1C224424 배치 번호: W10507997/016

제조업체

DONALDSON

SKU

1042031

카테고리

Filter Elements

상태

신제품

Donaldson Element filter Relays Safety Ultrafilter

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: Donaldson / Ultrafilter
Type: Replacement Filter Element
Model: P-SRF N 04/20
Part No: 1C224424
Ch: W10507997/016

Media: Compressed Air, Carbon Dioxide, Fermentation Air , Tank Ventilation, Technical Gases
Element Size: 04/20
Length: 104 mm
Inner Diameter: 37 mm
Total Length: 118 mm
Flow Rate @ 7 barg: 120 …. 180 m³/h
Absolute Retention Rate: ≥99.99998% at ≥0.01 µm
Maximum Differential Pressure: 5 bar,75 Psid (-4°F to 302°F), Regardless Of The System Pressure Or Flow Direction
Maximum Operating Temperature: 150 °C
Flow Direction: From Outside to Inside
Material: Borosilicate
