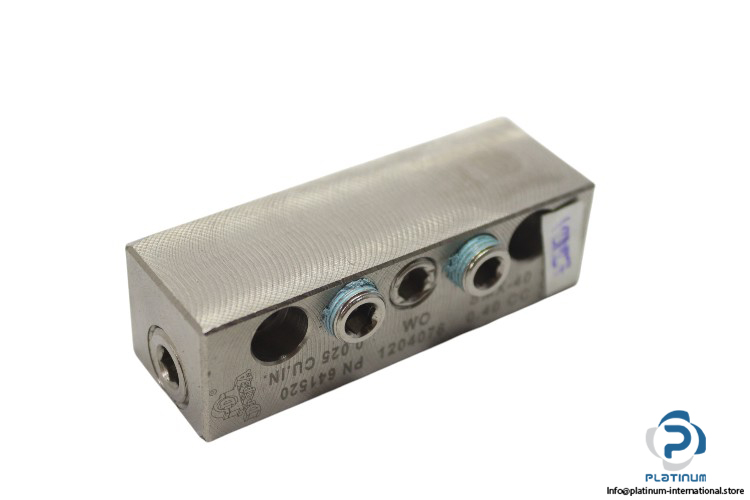

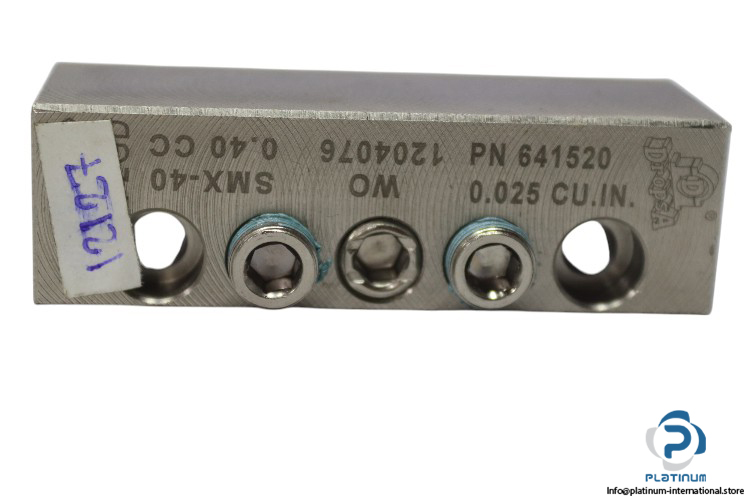

Dropsa SMX-40 0.40 CC Modular Progressive Distributor
Dropsa SMX-400.40CC Progressive Distributor “ High-pressure lubrication distributor with G1/8 connection, air bleed valves, and full monitoring. Supports grease and oil, up to 7,200 psi.
Dropsa SMX-400.40CC Modular Progressive Distributor
The Dropsa SMX-400.40CC is a modular progressive distributor engineered for advanced lubrication systems. Designed with built-in air bleed valves and full monitoring capabilities, this unit supports a wide range of thread types and is ideal for precise and reliable lubricant distribution in demanding industrial applications.
Manufacturer: Dropsa
Type: Modular Progressive Distributor
Model: SMX-400.40CC
Part No.: 641520
Order No.: 1204076
Key Features:
The two outputs are combined by replacing the adapter
Air bleed valves built into both sides of the base
SAE Metric - BSP - NPTF threads available
Full monitoring controls
The bases are always supplied complete with standard 'O' rings
| Operates at | SMX 7,200 psi (500 bar) / SMO 5,800 psi (400 bar) |
| Fluid | Grease and Oil |
| Connection | G1/8 |
| Material | Nickel-plated |
