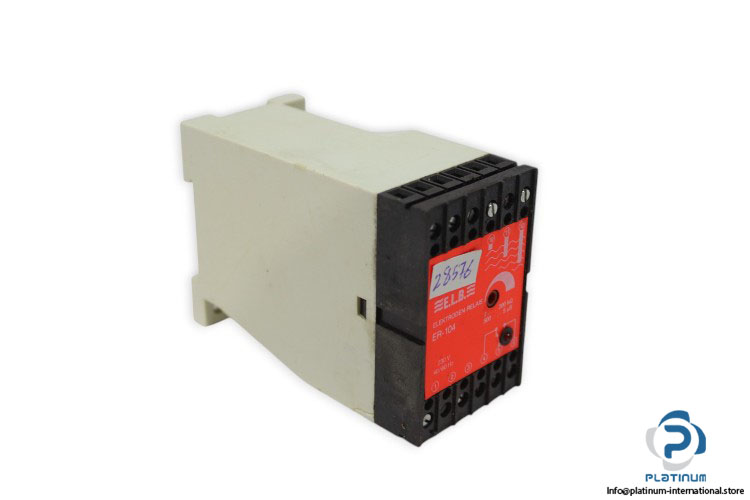

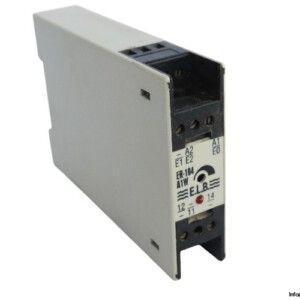

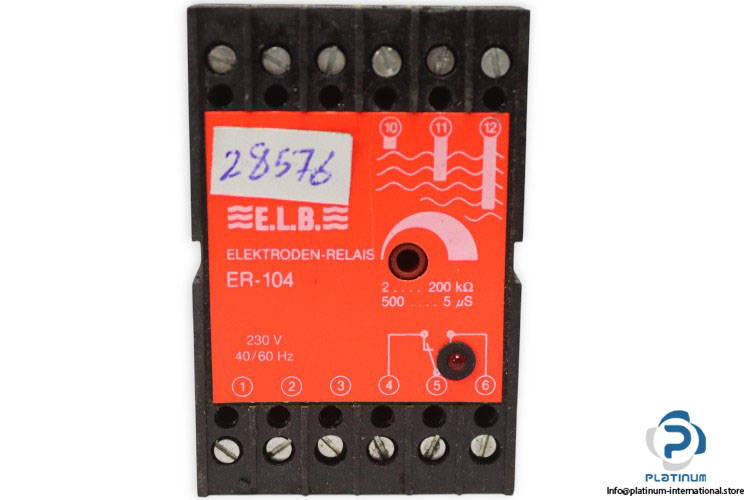

E.L.B ER-104 Electrode Relay
신제품
재고 있음1 단위즉시 배송 가능
ELECTRODE RELAY
Compact and reliable electrode relay from E.L.B, featuring adjustable sensitivity, low power consumption, and robust IP40 protection for industrial use.
방대한 재고
글로벌 배송
전문 지원
품질 보장
E.L.B ER-104 ELECTRODE RELAY
The ELB ER104 is a high-performance electrode relay engineered for reliable monitoring and control in electrical systems. With wide sensitivity adjustment and robust protection features, it ensures precise operation under varying conditions.
Manufacturer: E.L.B
Type: Electrode Relay
Model: ER-104
| Sensitivity Range | 2 / 200 KOhm |
| Supply Voltage | 230 V AC |
| Frequency | 40 / 60 Hz |
| Power Consumption | 1 W/VA |
| Contact | 1 Change-Over (CO) |
| Switching Voltage | 250 V AC |
| Switching Current | 5 mA |
| Switching Delay | 500 / 5 ms |
| Protection Class | IP40 |
| Temperature Range | -20 / 60 °C |
