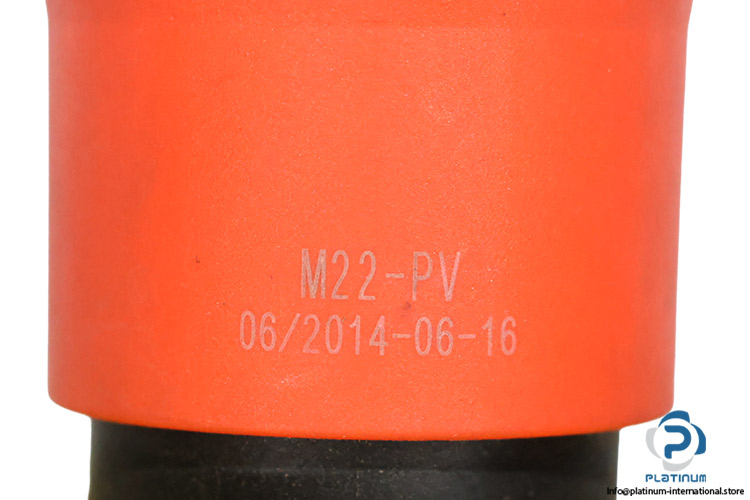

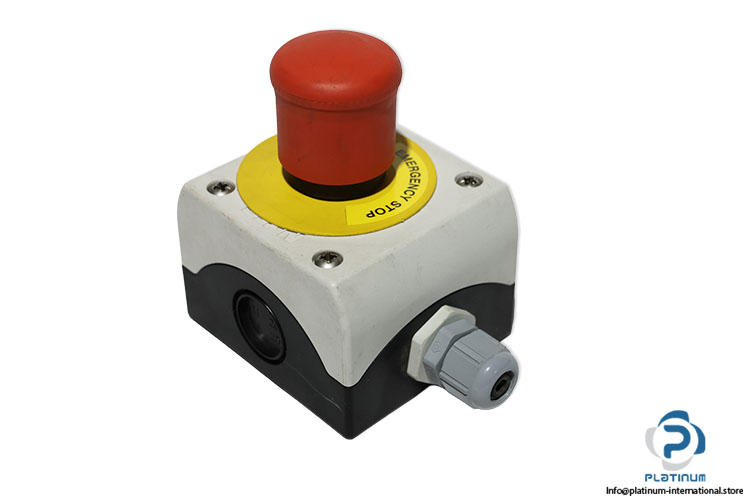

Eaton M22-PV Emergency Stop Push Button With Protective Cover
신제품
재고 있음1 단위즉시 배송 가능
EATON M22 PV Emergency Stop Push Button with protective cover, push-pull actuator, M22-K01 contact block, and IP67/IP69K protection for industrial safety applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

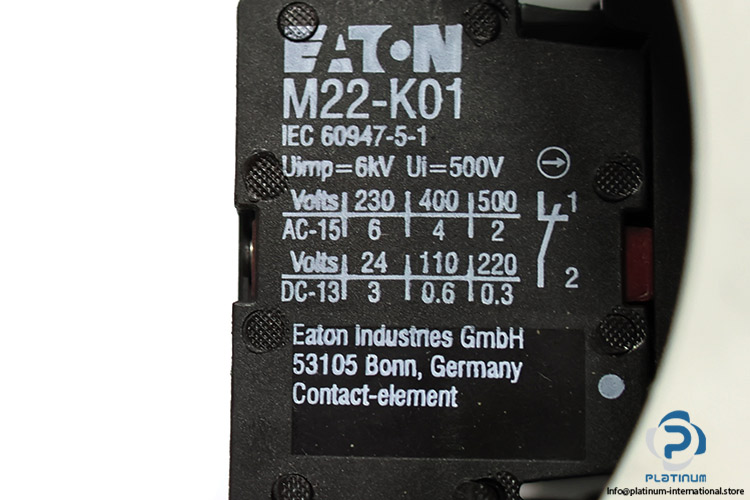

| Contact block | EATON M22-K01 (2NC,1 NO, 22.5 mm, Front, spring-cage) |
| Contact rating | Rated insulation voltage (500 V), Rated impulse withstand voltage (6 Kv) |
| Contact Current Rating | 4 A at 400 V AC, 0,3 at 220 V DC |
| Actuator function | Push-pull |
| Actuator | 35 mm pushbutton |

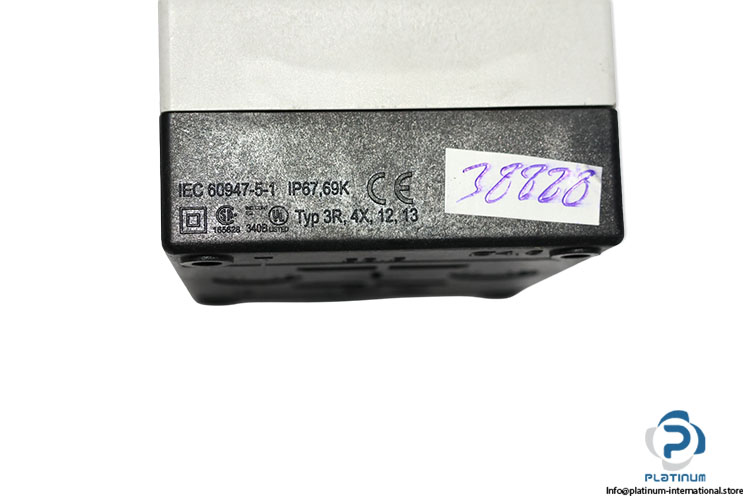

| Environmental rating | IP67,69K (ratings of NEMA 1, 3R, 4X, 12 and 13) |
| Standard | IEC 60947-5-1 |
| BOX Hole Configuration | 1 hole with a standard 22 mm diameter for control units |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098444 |
| Weight | 0,22 |
