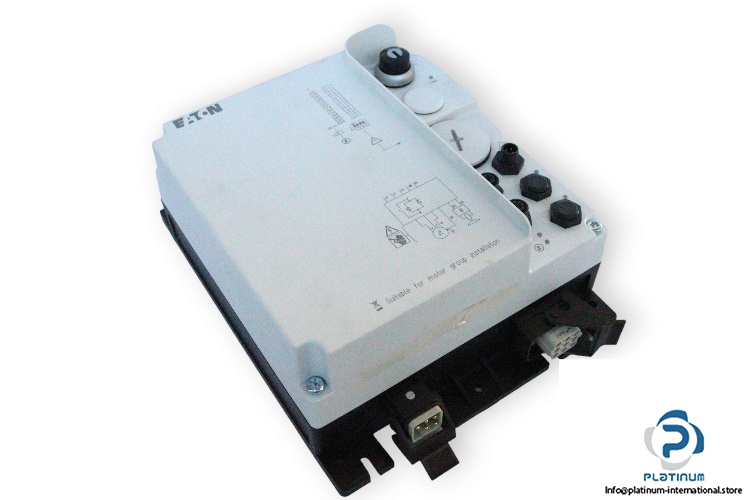

Eaton RAMO-D02AI1S-C320S1 DOL Starter

Manufacturer: Eaton
Type: Dol Starter

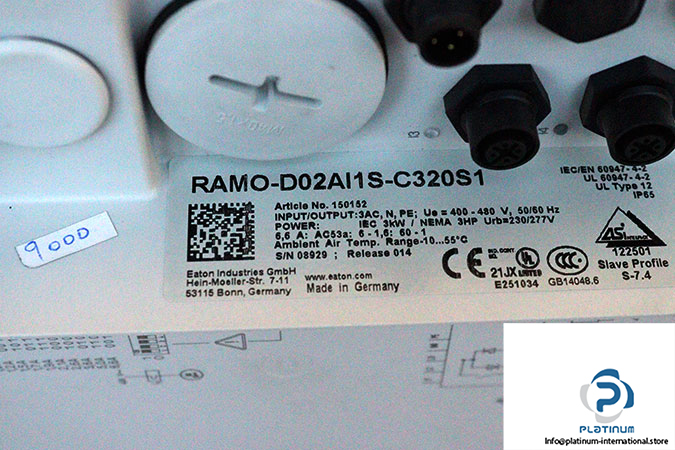

Model: RAMO-D02AI1S-C320S1
Part No: 150152

Input/ Output Voltage: 400 … 480 V AC (3 AC, N, PE)
Rated Impulse Withstand Voltage: 4 kV
Control voltage external brake: 230 … 277 V AC
Frequency: 50 … 60 Hz
Direction: 1 Direction Forward
Plug-in power connection: at bottom
Interface/field bus (built-in): AS-Interface
Rated operational current: 6.6 A
Power: 0.09 … 3 kW (400 V/ 3 HP)
Operating Temperature: -10 … 55 °C
Protection degree: IP65
Dimensions: 220 X 270 X 120 mm
