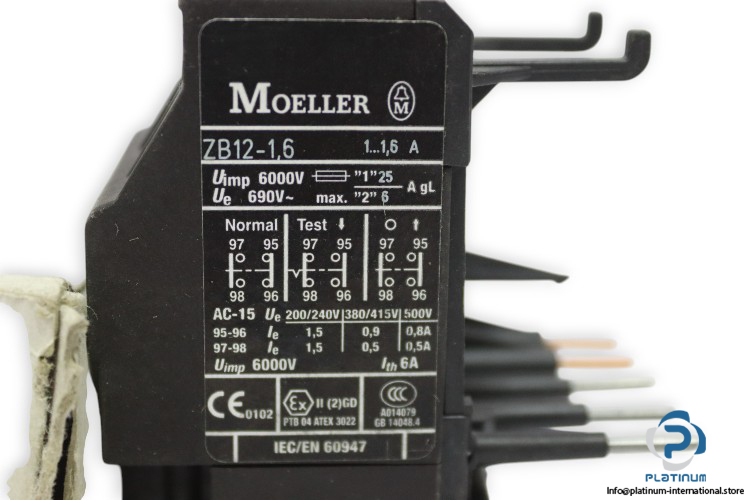

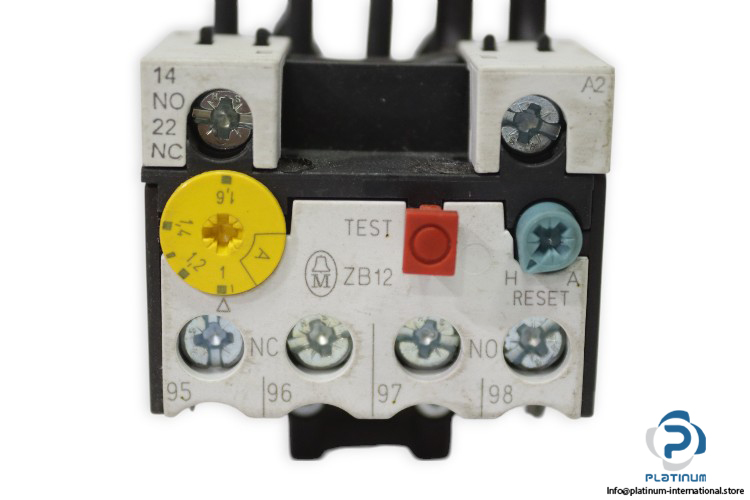

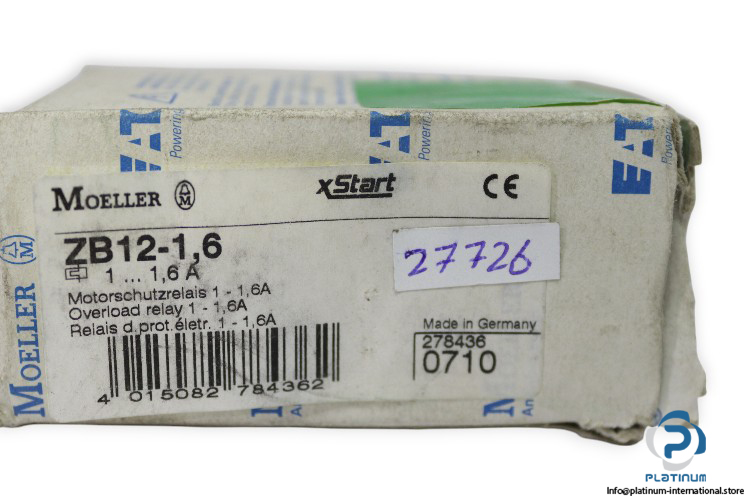

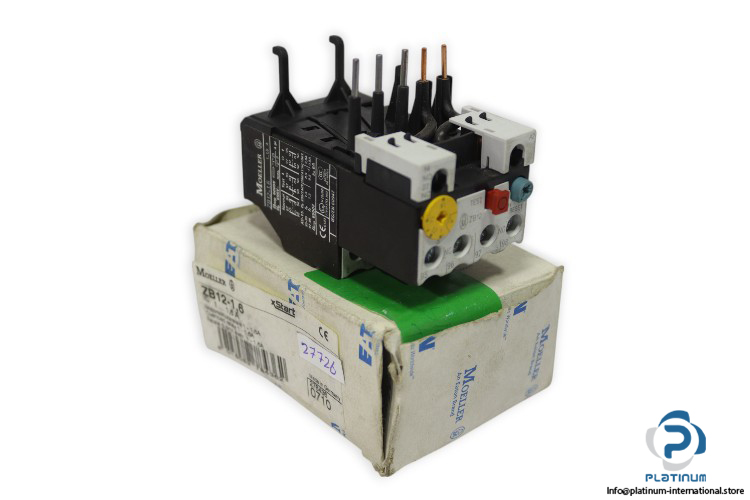

Eaton ZB12-1,6 Overload Relay
신제품
재고 있음1 단위즉시 배송 가능
EATON / Moeller ZB12-1,6 overload relay, rated 6A thermal current, 6000V impulse withstand, and 690V insulation voltage. Compact, efficient, and ideal for industrial motor protection.
2784366000V690V6ACurrentEatonElectricalIndustrialMoellermotorOverloadProtectionRelaySafetyThermalUiUimpZB12-1.6
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: EATON / Moeller
Type: Overload Relay
Model: ZB12-1,6
Part No.: 0710 / 278436
The EATON / Moeller ZB12-1,6 overload relay is engineered for reliable protection of electric motors against overload conditions. Designed for industrial and commercial applications, this relay delivers optimal thermal current handling and safe operational integrity under varying environmental conditions.
- Rated Impulse Withstand Voltage (Uimp): 6000V AC
- Rated Insulation Voltage (Ui): 690V
- Terminal Screw: M4
- Tightening Torque: 1.8 Nm
- Stripping Length: 10 mm
- Contact Configuration: 1 Normally Open + 1 Normally Closed (1 NO + 1 NC)
- Thermal Current (Ith): 6 A
- Operating Temperature Range: -5°C to +55°C
This compact and efficient overload relay is a dependable choice for safeguarding motor systems in a wide range of automation and control environments.
