Elap SEB 1 Incremental Encoder

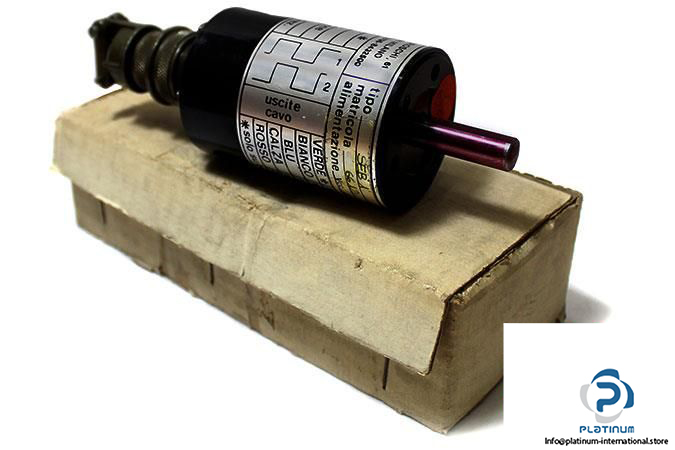

ELAP SEB1 INCREMENTAL ENCODER
The ELAP SEB1 Incremental Encoder is engineered for precision and reliability in automation and motion control systems. It features a solid AISI 303 steel shaft and offers excellent signal performance across a wide frequency range, making it suitable for various industrial environments.
Manufacturer: ELAP
Type: Incremental Encoder
Model: SEB1

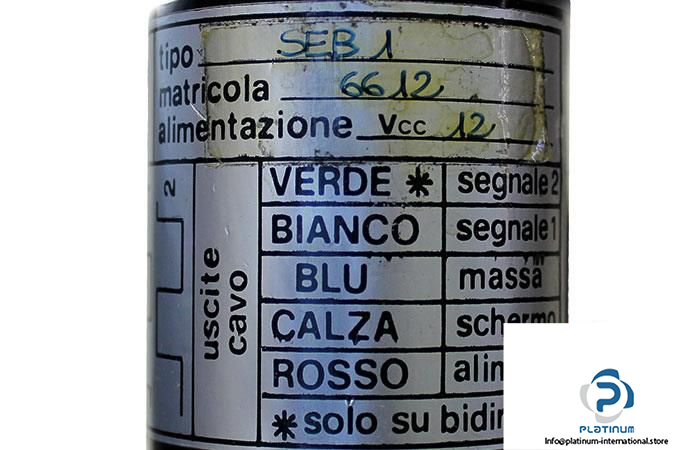

Ref No.: 6612

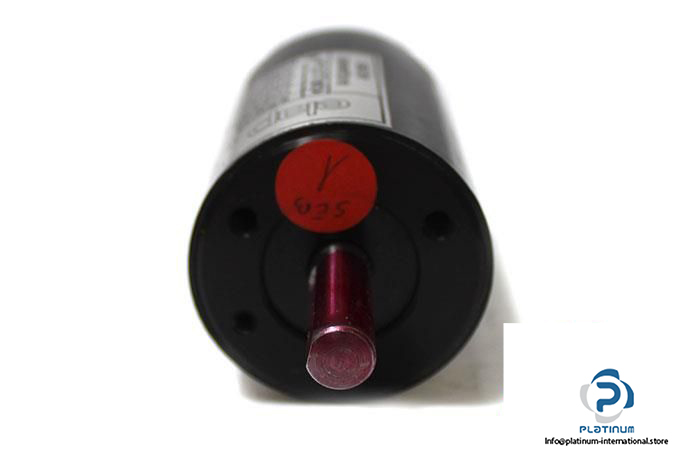

| Shaft Type | Solid Shaft (Steel AISI 303) |
| Shaft Diameter | 10 mm |
| Voltage Supply | 12 VDC |
| Switching Frequency | 0 / 100 kHz |
| Consumption | 70 mA |

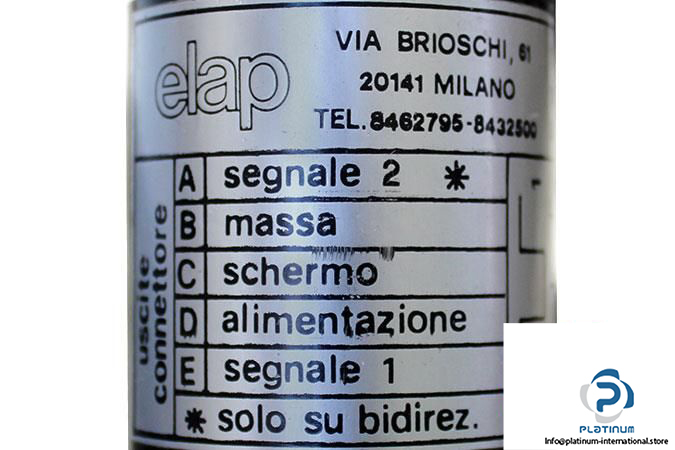

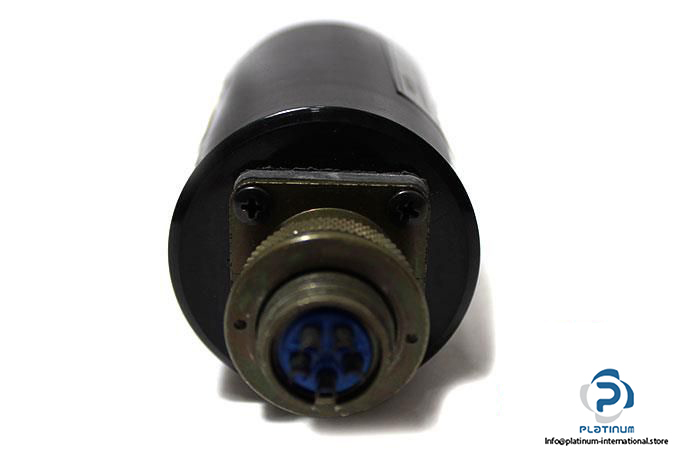

| Connection Type | Connector M23, 5 pin, Axial |
| Protection Class | IP64 |
| Temperature Range | -10 / 70 °C |
