Motion Control Rotary Encoders

Elesta 5/12.B500.RON Incremental Encoder

Name: ELESTA 5/12.B500.RON INCREMENTAL ENCODER
SKU: 965718
Price: 144.00 USD
Availability: InStock

중고

재고 있음1 단위즉시 배송 가능

144,00$

INCREMENTAL ENCODER

ELESTA MEDIOCOD 5/12.B500.RON incremental encoder with 500 PPR resolution, 8 mm shaft, IP54 rating, and axial M23 connector. Operates at 5“12 VDC with NPN output circuit.

제조업체

ELESA

SKU

965718

카테고리

Rotary Encoders

상태

중고

5/12.B500.RON 500 8 Axial Connector Elesta Encoder Incremental Industrial IP54 M23 mm NPN Output Position PPR Sensor shaft

방대한 재고

글로벌 배송

전문 지원

품질 보장

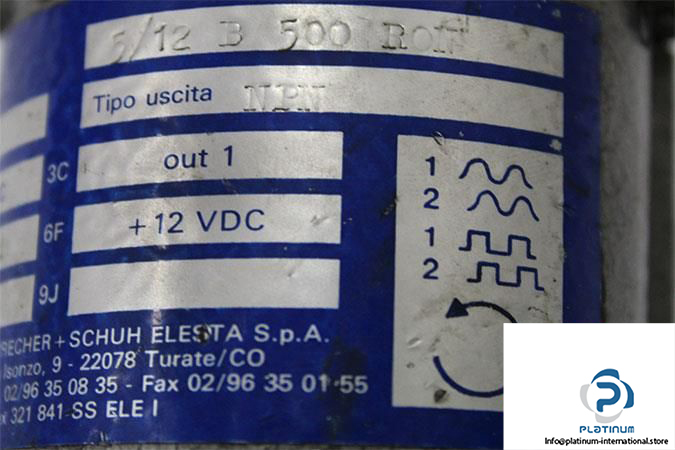

ELESTA MEDIOCOD 5/12.B500.RON INCREMENTAL ENCODER

The ELESTA MEDIOCOD 5/12.B500.RON is a high-precision incremental encoder designed for motion feedback in industrial automation systems. With a resolution of 500 PPR and durable IP54 protection, this encoder ensures reliable performance in demanding environments. Ideal for applications that require accurate position tracking and high-speed operation.

Manufacturer: ELESTA MEDIOCOD

Type: Incremental Encoder

Model: 5/12.B500.RON

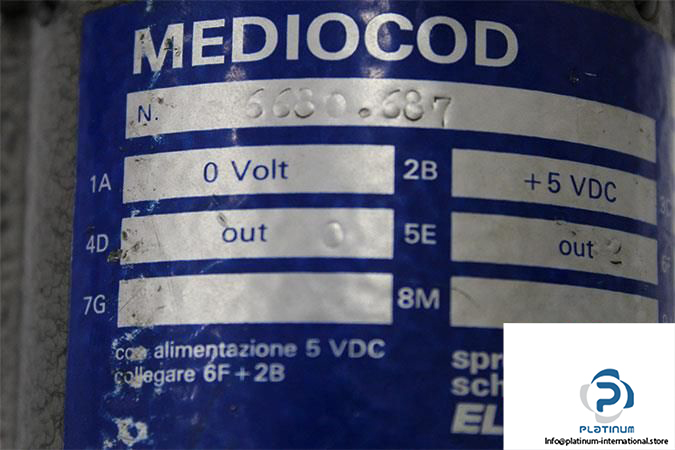

Part No.: 6680.687

Flange Type	Square flange
Shaft Diameter	8 mm
Resolution	500 Pulses per Revolution (PPR)
Voltage Supply	5 / 12 VDC
Output Circuits	NPN
Max Rotation Speed	6000 rpm
Connection Type	Axial M23 connector
Protection Class	IP54
