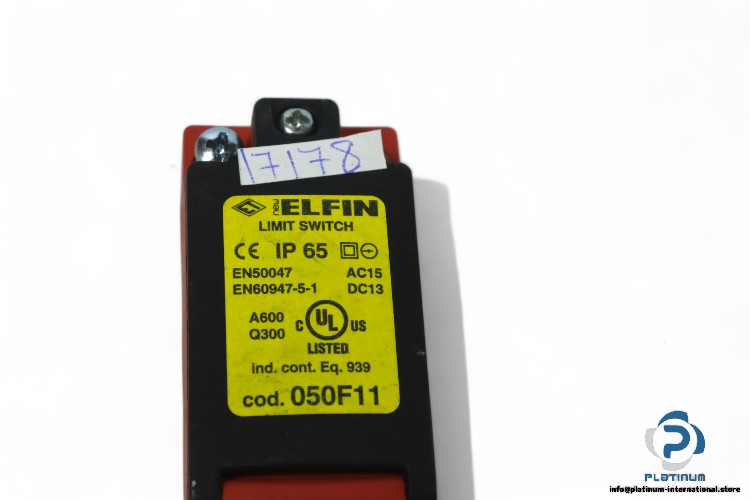

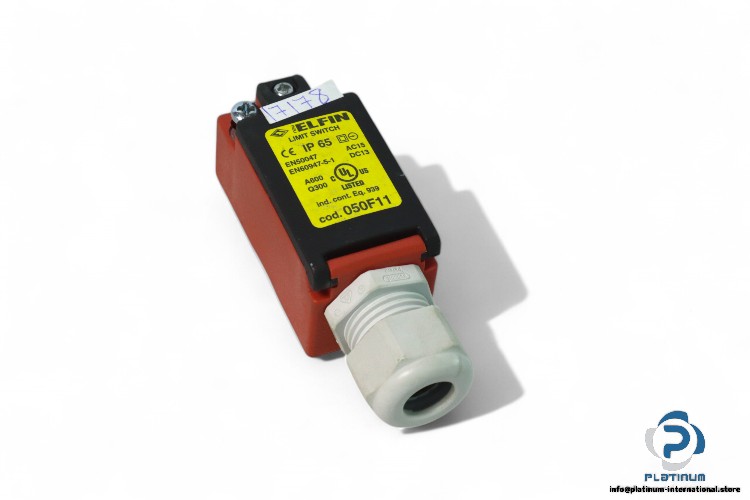

Elfin 050F11 Limit Switch
Elfin Limit Switch 050F11 “ A reliable limit switch with IP67 protection, offering a wide range of AC and DC performance options, durable PA polyamide housing, and precise actuation for industrial environments.
LIMIT SWITCH 050F11 by Elfin
The Elfin Limit Switch 050F11 is a high-performance, reliable safety device designed for precise actuation and protection in industrial applications. With a wide range of AC and DC performance ratings, it ensures versatile compatibility and durability in demanding environments.
Key features include:
- Rated Insulation Voltage: 690 V “ Uimp 4 kV
- Rated Thermal Current Ith: 10 A
- Actuation Speed: Min. 5mm/s “ Max. 20mm/s
- AC Performance Ratings: AC 24 V “ 10 A, 120 V “ 6 A, 240 V “ 3 A, 600 V “ 1.2 A
- DC Performance Ratings: DC 24 V “ 2.5 A, 120 V “ 0.6 A, 240 V “ 0.3 A
- Protection Degree: IP67 (IEC-EN60529) for high resistance to dust and water
- Housing Material: PA Polyamide, offering strength and reliability
- Contact Material: Ag 1000/1000 for improved conductivity
- Operating Temperature Range: -10°C to +80°C
- Terminal Screw Material: Zinc-plated steel for corrosion resistance
- Terminal Screw Tightening Torque: 0.8 to 1 Nm
The 050F11 Limit Switch is ideal for industrial environments where precision, reliability, and environmental protection are essential. Its IP67 rating ensures excellent resistance to water and dust ingress, making it suitable for both indoor and outdoor applications.
