Eltra EL40A200S5/28C6X6PR1 Incremental Encoder
재고 있음1 단위즉시 배송 가능
135,00$
INCREMENTAL ENCODER ELTRA EL40A200S5/28C6X6PR1는 NPN 오픈 컬렉터 출력, 5/28 VDC 전원 공급, 6000 rpm 회전 속도와 함께 200 PPR 해상도를 제공합니다. 산업용 모션 제어에 적합합니다.
2006AutomationCollectorControlEL40A200S5/28C6X6PR1EltraEncoderHigh-SpeedIncrementalIndustrialIP54mmMotionNPNOpenPPRSensorshaft
방대한 재고
글로벌 배송
전문 지원
품질 보장

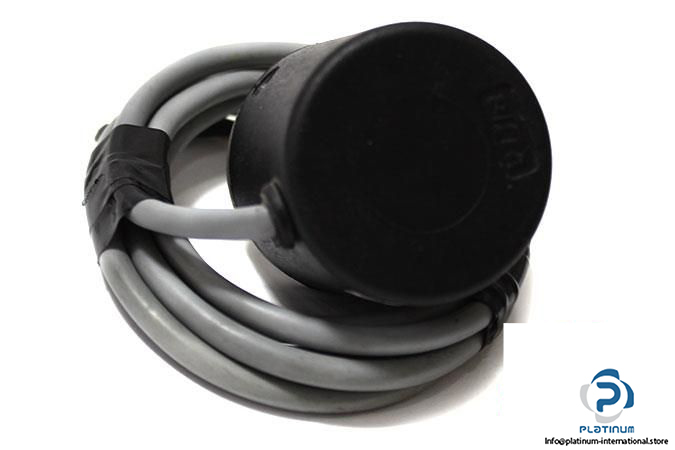

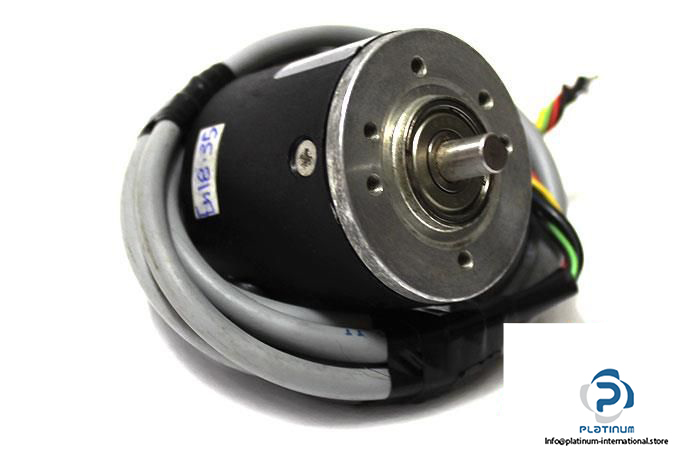

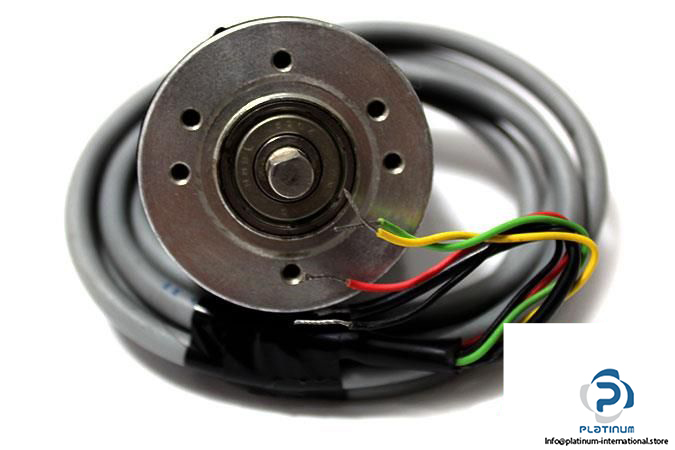

ELTRA EL40A200S5/28C6X6PR1 INCREMENTAL ENCODER
The ELTRA EL40A200S5/28C6X6PR1 is a compact and efficient incremental encoder engineered for precise motion control applications. With robust construction and reliable signal output, it™s ideal for automation systems, robotics, and industrial drives.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL40A200S5/28C6X6PR1

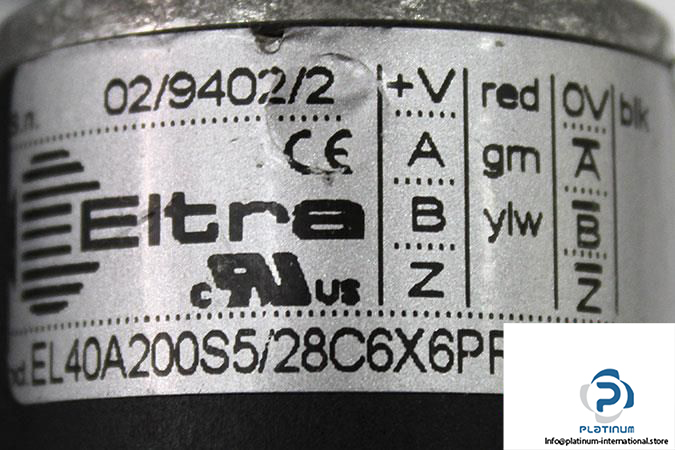

Serial No.: 02/9402/2
| Shaft Diameter | 6 mm |
| Resolution | 200 Pulses per Revolution (PPR) |
| Voltage Supply | 5/28 VDC |
| Output Frequency | 0 “ 100 kHz |
| Output Circuits | NPN Open Collector |
| Max Rotation Speed | 6000 rpm |
| Connection Type | Radial Cable Output (0.5 m) |
| Protection Class | IP54 |
| Temperature Range | 0 “ 60 °C |
