Eltra EL40A250S5/28P6X3PR Incremental Encoder

Name: ELTRA EL40A250S5/28P6X3PR INCREMENTAL ENCODER
SKU: 1044826
Availability: LimitedAvailability

eltra-EL40A250S5_28P6X3PR-incremental-encoder-(new)

eltra-EL40A250S5_28P6X3PR-incremental-encoder-(new)-1

eltra-EL40A250S5_28P6X3PR-incremental-encoder-(new)-2

eltra-EL40A250S5_28P6X3PR-incremental-encoder-(new)-3

eltra-EL40A250S5_28P6X3PR-incremental-encoder-(new)-4

eltra-EL40A250S5_28P6X3PR-incremental-encoder-(new)-5

신제품

재고 있음2 단위즉시 배송 가능

증분 인코더 ELTRA EL40A250S5/28P6X3PR 증분 인코더는 250 PPR 해상도, 푸시-풀 인터페이스 및 42mm 컴팩트 디자인의 실축 측면 방향을 제공하며, 회전 측정 시스템에 적합합니다.

제조업체

ELTRA

SKU

1044826

카테고리

Rotary Encoders

상태

신제품

250 42 EL40A250S5/28P6X3PR Eltra Encoder Incremental Industrial IP54 Measurement mm Optical PPR Rotary Sensor shaft Solid

방대한 재고

글로벌 배송

전문 지원

품질 보장

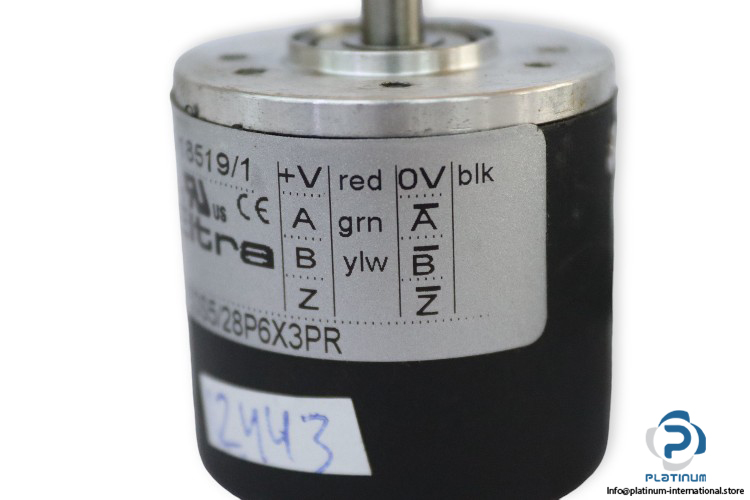

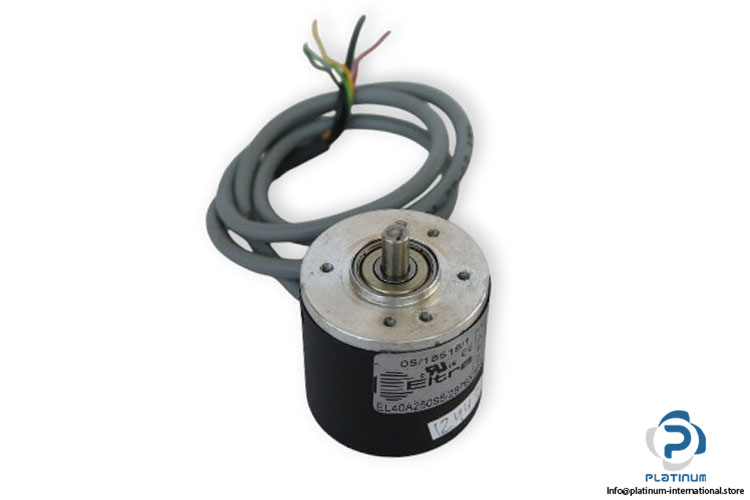

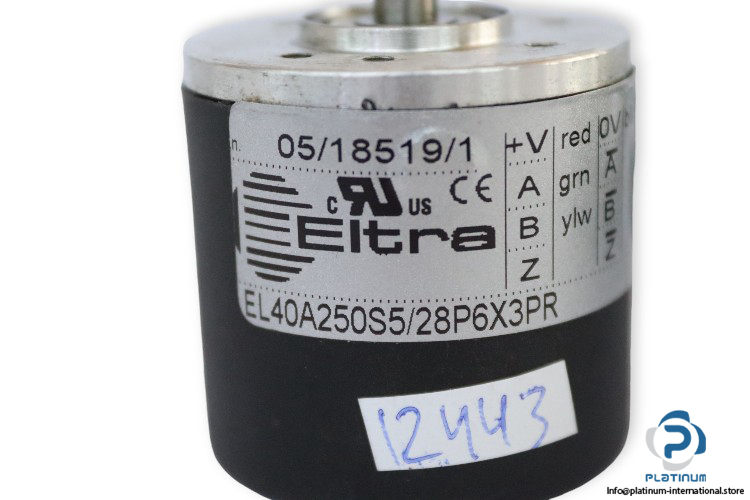

ELTRA EL40A250S5/28P6X3PR INCREMENTAL ENCODER

Eltra™s EL40A250S5/28P6X3PR is a compact and durable incremental encoder, designed to deliver reliable rotary measurement in industrial environments. With a 250 PPR resolution, this optical encoder ensures accurate position feedback for automated and motion control systems.

Manufacturer: ELTRA

Type: Incremental Encoder

Model: EL40A250S5/28P6X3PR

Serial No.: 05/18519/1

Reference No.: E212495

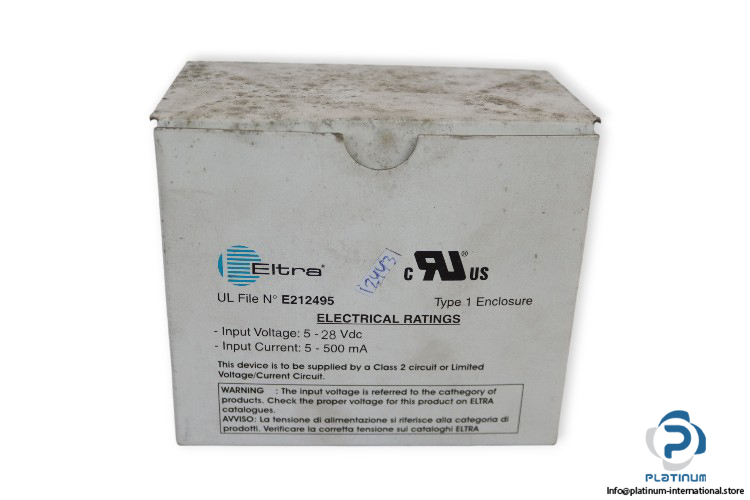

Input Voltage	5 / 28 V DC
Input Current	5 / 500 mA
Operating Principle	Incremental
Resolution	250 PPR
Max Output Frequency	150 kHz
Shaft Type	Solid Shaft
Shaft Diameter	6 mm
Mounting Type	Clamping Flange
Electronic Interface	Push Pull

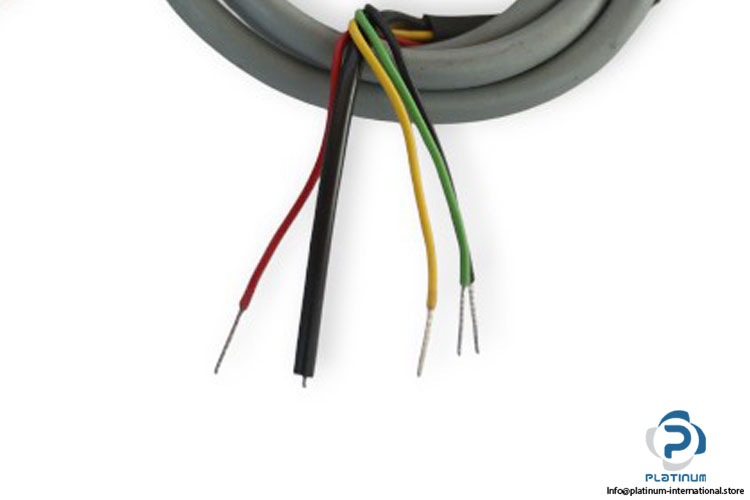

Output Type	Cable (5 Wires)
Measurement Type	Rotary
Type of Sensor	Optical
Enclosure Rating	IP54
Max Rotation Speed	3000 rpm
Operating Temperature	-10 / +60°C
Direction Type	Radial
Construction Size (Diameter)	42 mm
