Motion Control Rotary Encoders

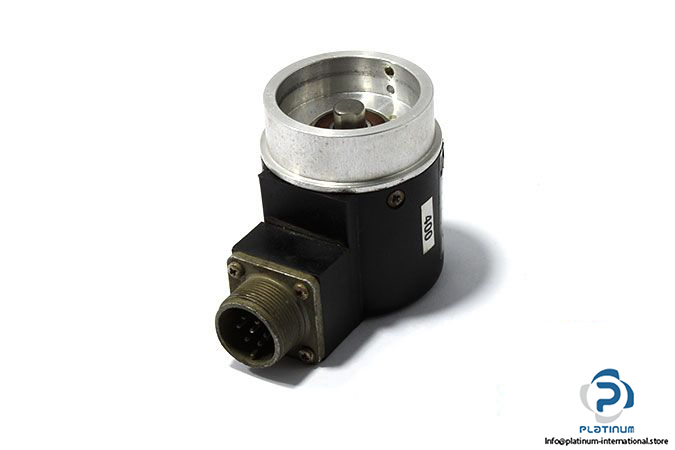

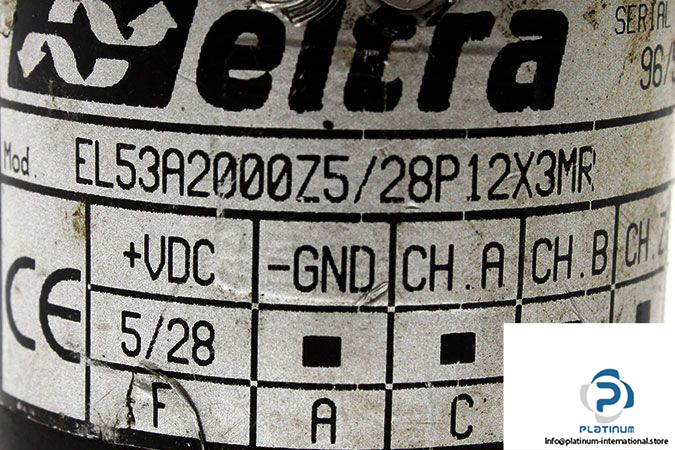

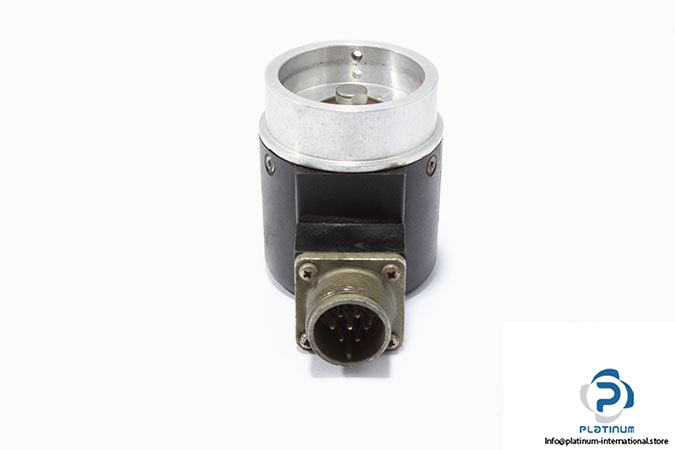

Eltra EL53A2000Z5/28P12X3MR Incremental Encoder

Name: ELTRA EL53A2000Z5/28P12X3MR INCREMENTAL ENCODER
Brand: ELTRA
SKU: 990464
Availability: LimitedAvailability

en93-400-eltra-el53a2000z5_28p12x3mr-incremental-encoder

en93-400-eltra-el53a2000z5_28p12x3mr-incremental-encoder-1

en93-400-eltra-el53a2000z5_28p12x3mr-incremental-encoder-2

en93-400-eltra-el53a2000z5_28p12x3mr-incremental-encoder-3

중고

재고 있음1 단위즉시 배송 가능

INCREMENTAL ENCODER Eltra EL53A2000Z5/28P12X3MR는 2000 ppr 해상도의 솔리드 샤프트 증분 인코더이며 5“28V에서 작동합니다. 방사형 출력 및 최대 3krpm 고속 애플리케이션용으로 설계되었습니다.

제조업체

ELTRA

SKU

990464

카테고리

Rotary Encoders

상태

중고

2000 58mm 7-Pin Connector EL53A2000Z5/28P12X3MR Eltra Encoder High-Speed Incremental Industrial Output PPR radial Rotary shaft Solid

방대한 재고

글로벌 배송

전문 지원

품질 보장

ELTRA EL53A2000Z5/28P12X3MR INCREMENTAL ENCODER

The Eltra EL53A2000Z5/28P12X3MR is a high-resolution incremental encoder designed for precise position and speed detection in automated systems. With a robust 58 mm housing and solid shaft design, this encoder ensures reliability and accuracy in demanding industrial environments.

Manufacturer: Eltra

Type: Incremental Encoder

Model: EL53A2000Z5/28P12X3MR

Shaft Type: Solid Shaft

Resolution	2000 ppr
Voltage	5 / 28V (depends on the electronics circuit)
Outer Diameter	58 mm

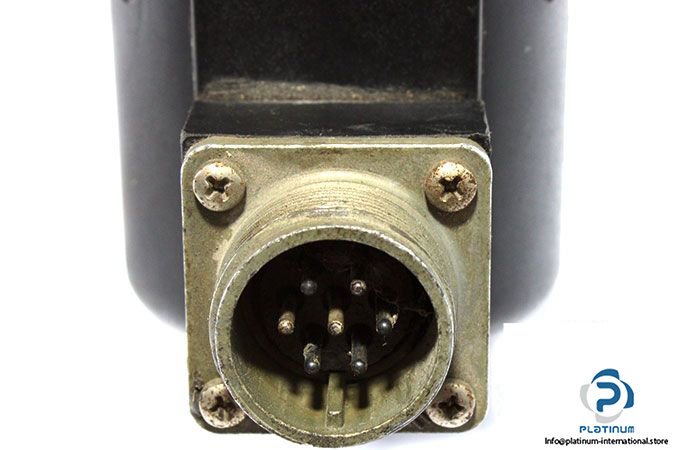

Electrical Connection	7-pin Connector
Direction	Radial
Rotational Speed	max. 3krpm
