Eltra EL63D1000Z5L8S3PR3.035 Incremental Encoder
신제품
재고 있음2 단위즉시 배송 가능
INCREMENTAL ENCODER ELTRA EL63D1000Z5L8S3PR3035는 견고한 8mm 샤프트, 1000 ppr 해상도, IP66 보호 등급 및 라인 드라이버 인터페이스가 포함된 방사형 케이블 출력이 특징인 고해상도 회전 광학 인코더입니다.
1000AutomationDriverEL63D1000Z5L8S3PR3035EltraEncoderIncrementalIndustrialIP66LineOpticalOutputPPRRotarySensorshaftSolid
방대한 재고
글로벌 배송
전문 지원
품질 보장

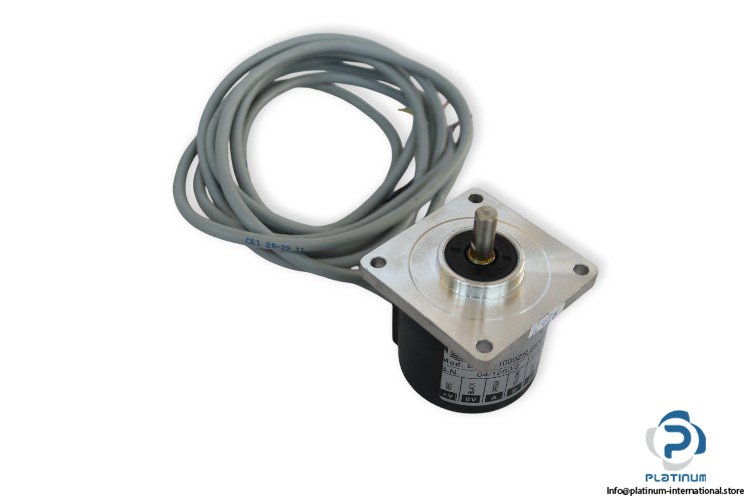

ELTRA EL63D1000Z5L8S3PR3035 INCREMENTAL ENCODER
The ELTRA EL63D1000Z5L8S3PR3035 is a robust rotary optical encoder designed for precise motion control and high-speed feedback in industrial automation environments. Featuring a solid shaft and radial output, it delivers reliable performance even under demanding conditions.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL63D1000Z5L8S3PR3035
Serial No.: 04/1283/2
| Input Voltage | 5 / 30 V DC |
| Input Current | 5 / 500 mA |
| Principle of Operation | Incremental |
| Resolution | 1000 ppr |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 8 mm |
| Mounting Type | Centering Square Flange |
| Electronic Interface | Line Driver |

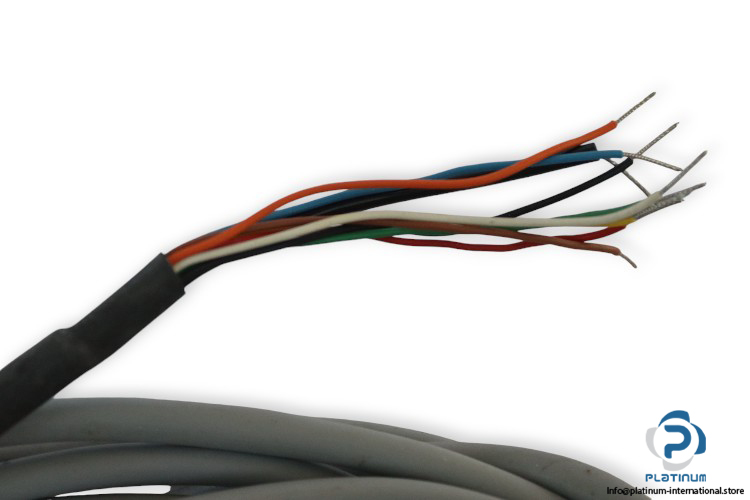

| Output Type | Cable (9 Wires) |
| Direction Type | Radial |
| Construction Size (Diameter) | 63 mm |
| Max Rotation Speed | 3000 rpm |
| Max Output Frequency | 250 kHz |
| Protection Degree | IP66 |
| Operating Temperature | -10 / +60°C |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
