Eltra EL63D2500S5/28P8X3MR Incremental Encoder
ELTRA EL63D2500S5/28P8X3MR INCREMENTAL ENCODER

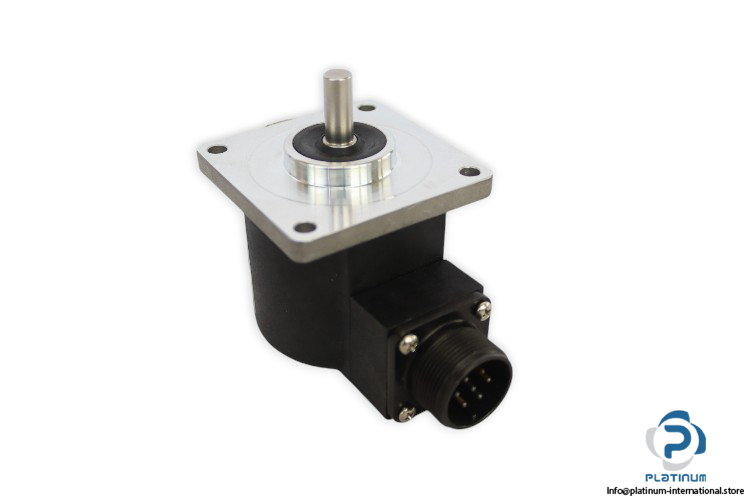

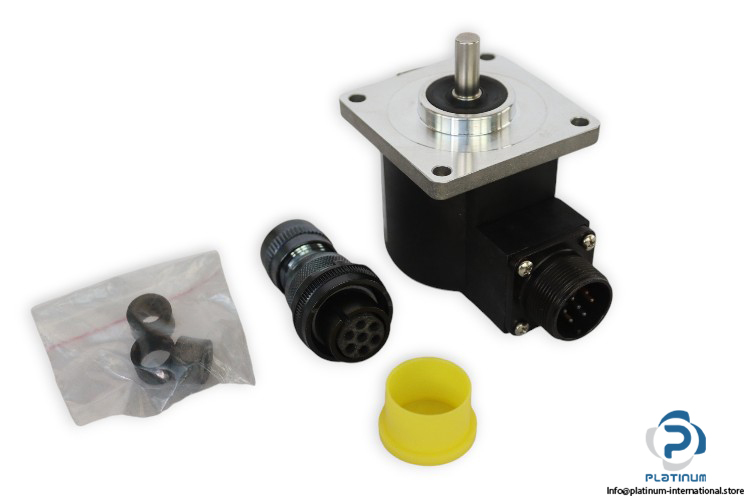

The ELTRA EL63D2500S5/28P8X3MR is a precision incremental rotary encoder designed for industrial motion control systems. Engineered with high-resolution output and durable IP54-rated construction, it ensures reliable performance in demanding environments. Ideal for positioning and speed detection applications.
Manufacturer: ELTRA
Type: Incremental Encoder

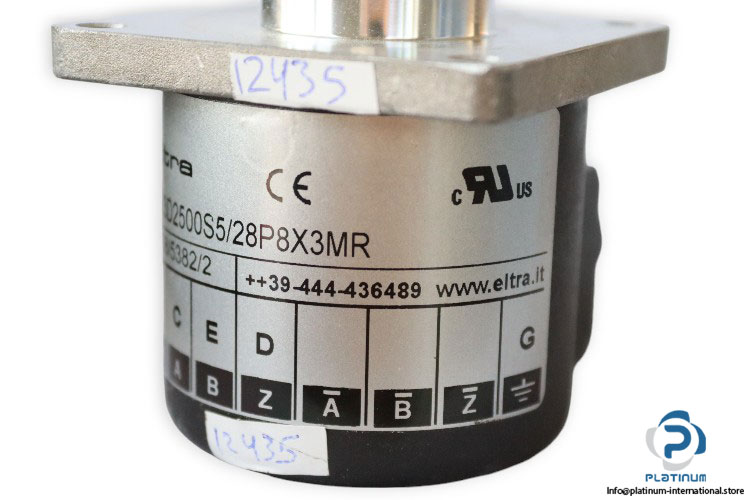

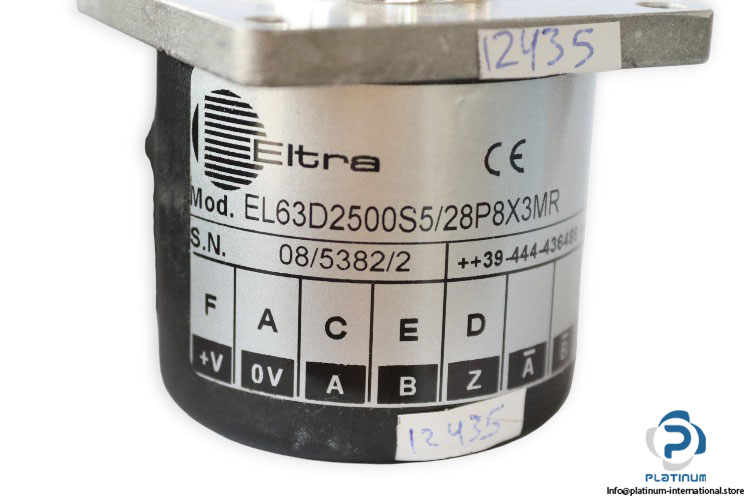

Model: EL63D2500S5/28P8X3MR
Serial No.: 08/5382/2
| Power Supply | 5 / 28 V DC |
| Principle of Operation | Incremental |
| Shaft Type | Solid Shaft |
| Mounting Type | Centering Square Flange |
| Electronic Interface | Push Pull |
| Resolution | 2500 PPR |
| Shaft Diameter | 8 mm |
| Enclosure Rating | IP54 |
| Max Rotation Speed | 3000 rpm |

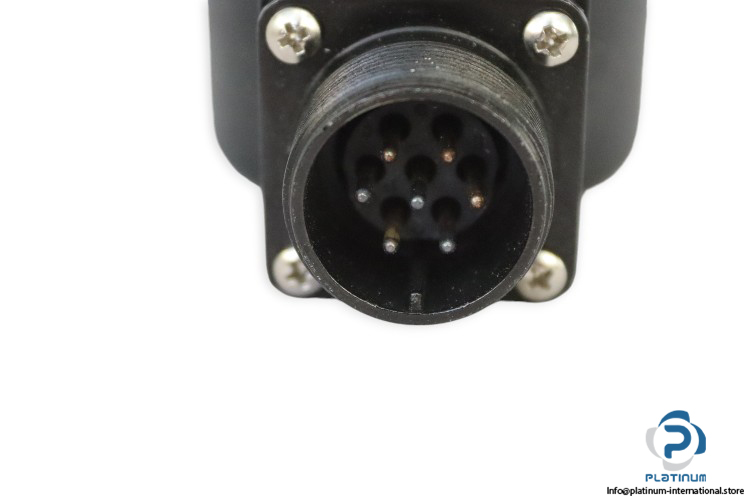

| Output Type | MIL Connector (7 Pins) |
| Direction Type | Radial |
| Construction Size (Diameter) | 63 mm |
| Max Output Frequency | 250 kHz |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
| Operating Temperature | -10 / +60°C |
